22 C 4: C
HAPTER ONFIGURING THE
V6000/V6100

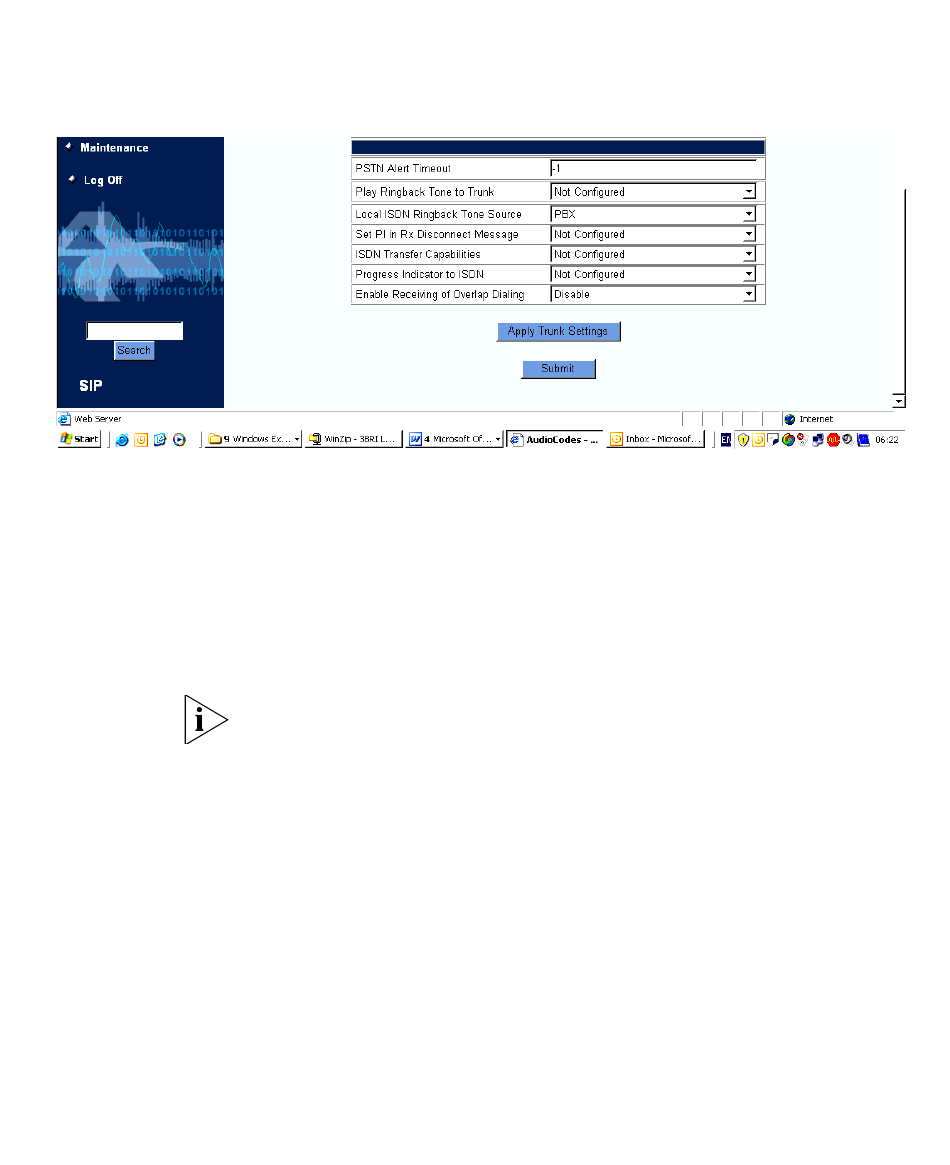

Figure 8 Continuation of Trunk Settings BRI
6 From the Clock Master drop-down list, select the trunk clock source.
Choose either Recovered (the clock is recovered from the trunk =
default) or Generated (the trunk's clock source is provided by the
internal TDM bus clock source, according to the parameter TDM Bus
Clock Source).
7 From the ISDN Termination Side drop-down list, select User Side when
PSTN or PBX side is configured as Network side and vice versa.
8 Leave the parameter BRI Layer2 Mode at its default value.
In this release only P2P is supported.
9 To configure the different behavior bits, enter the exact hexadecimal bits
value in the field to the right of the relevant behavior parameter, or
directly configure each bit field by performing the following:
a Click the arrow button (-->) to the right of the relevant behavior
parameter.
b Modify each bit field according to your requirements.
c Click the Submit button to save your changes.
10 After modifying the parameters:
To apply the changes to the selected trunk only, click Apply Trunk
■
Settings.
To apply the changes to all the trunks, click Apply to all Trunks.
■
