ION 1200 Overview

ION 1200-S Front Panel

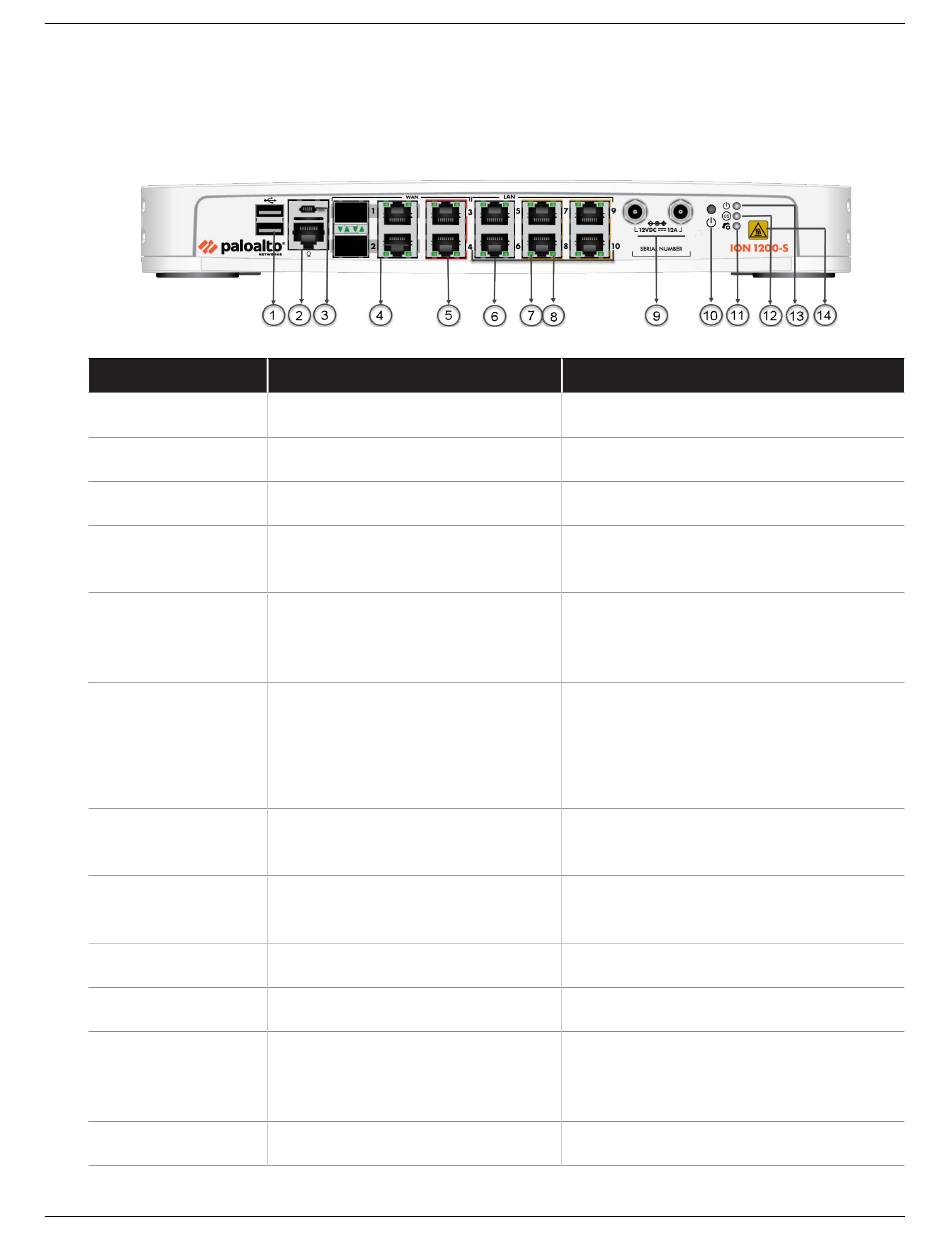

The following image shows the front panel of the ION 1200-S and the table describes the front
panel components.
Item
1
2
3
4
5
6
7
8
9
10
11
12
ION 1200 Hardware Reference
Component
USB Port
Console Port
Micro USB
SFP/RJ-45 Combo Ports
ByPass Pair
Ethernet Ports
Link Speed LED
Activity LED
Power
Restart button
Controller LED
OS LED
Description
USB 3.0 (reserved for future use).
RJ-45 Serial console port.
Micro USB Type B Console connector.
Ports 1 and 2 are SFP/RJ-45 combo
ports.
Ports 3 and 4 are bypass pairs. ByPass
is indicated with a orange bar above
and below the ports.
Ports 5-10 are access ports.
Ports 7-10 are PoE ports indicated
with a yellow bar above and below the
ports.
On ethernet ports 1-10, the left LED
indicates the link speed.
On ethernet ports 1-10, the right LED
indicates the activity on the port.
Power Input.
Restart button.
Controller LED; the LED turns green
on successful connection with the
Prisma SD-WAN controller.
Operating System status LED.
