OWNER/OPERATOR RESPONSIBILITY
It is the owner/operator responsibility to properly use
and maintain this equipment.
The instructions and warnings contained in this manual
shall be read and understood by the owner/operator
prior to operating this equipment.
If an owner/operator does not understand english, the
contents of this manual shall be explained in the owner/
operator native language to assure the owner/operator
comprehends.
It is the owner/operator responsibility to maintain the leg-
ibility of all warning and instruction labels.
DESCRIPTION
Suitable to pump diesel fuel, lubricating oils up to SAE
140 (
and other non-corrosive fluids.
@ 70°F)
Supplied with 1.8m (6 ft) delivery hose and metal nozzle.
jULY - 2011

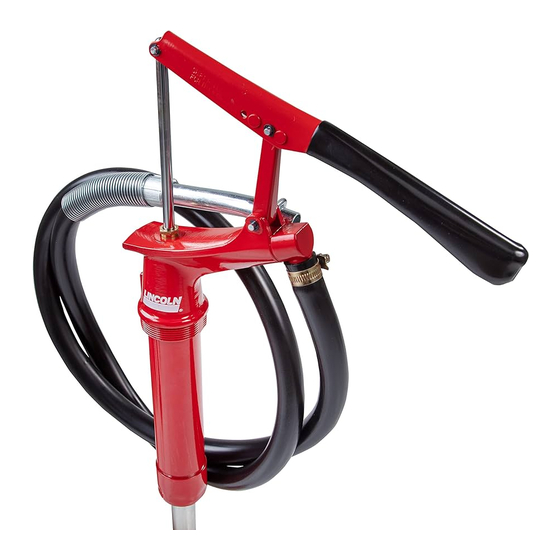

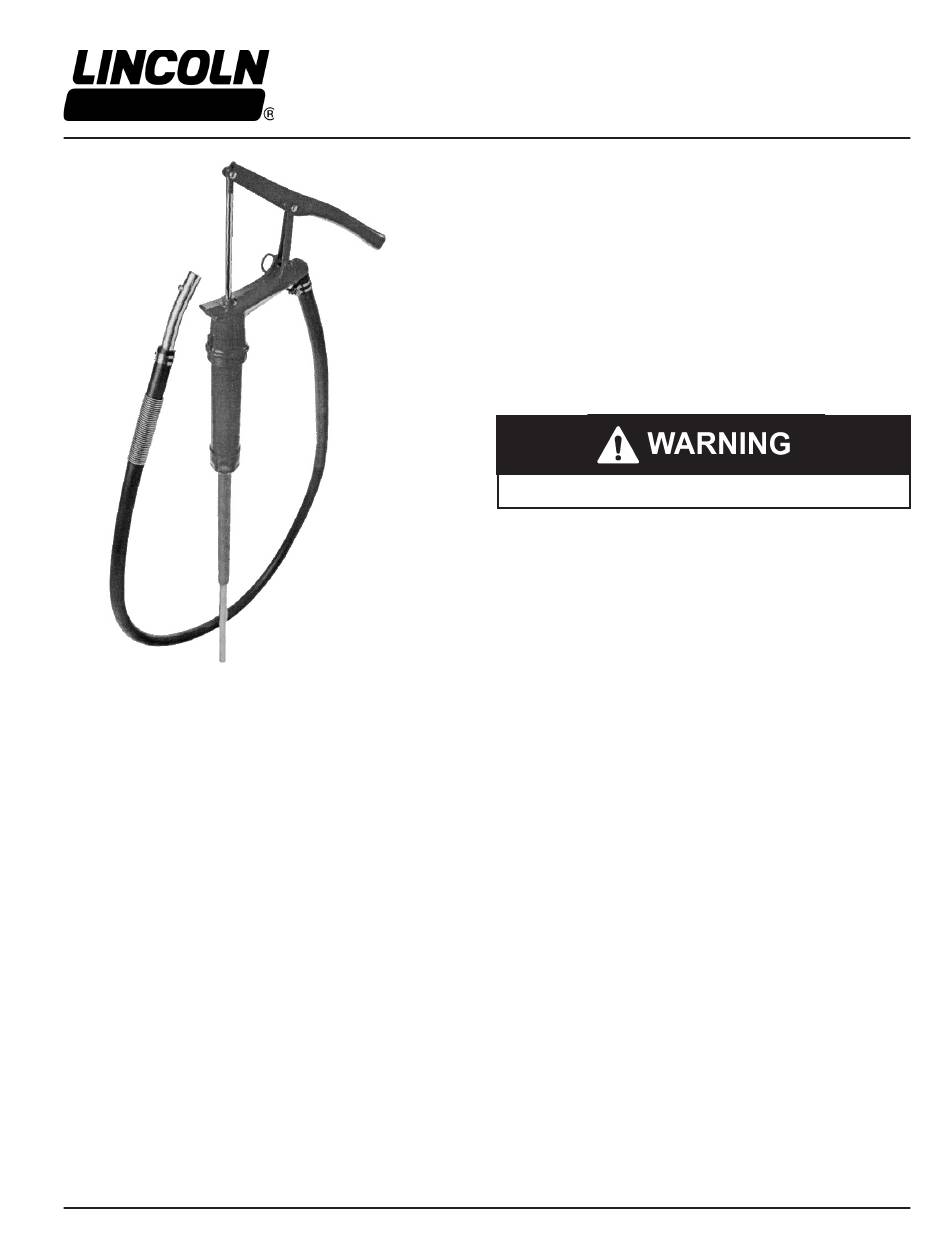

TRANSFER PUMP LEVER ACTION
Variable handle setting for light or heavy fluids.
Telescopic suction tube fits 60 liter (16 us gal) and 205
liter (55 us gal) drums. Convenient bung opener cast on
pump head.
The owner/operator shall retrain this manual for future
reference to important warnings, operating and mainte-
nance instructions.
SPECIFICATIONS
Output approximately .26 quart (250ml)\ stroke.
Not for use with gasoline or other flamable liquids.
©
The 1335 is a multi-fluid pump that contains the following
wetted components:
1.
Aluminum (Pump Head)
2.
Steel (Suction tube, pump body, handle)
3.
Brass (Rings in pump head)
4.
Viton(O Ring in Suction Tube)
5.
PTFE (Under Gland Nut)
©
This close tolerance pump works with non corrosive fluids
such as:
•Motor oil
•Transmission fluid
•Gear oil
•Engine coolant / Anti-Freeze (Alcohol Base)
•Engine coolant / Anti-Freeze (Glycol Base/
Prestone®Etc.)
•Denatured Alcohol Ethanol and denaturant
•Diesel Oil (Fuel ASTM #2) Hydrocarbons
•Fuel Oils (ASTM #1 thru #9) Hydrocarbons
•Glycols
•HexyleneGlycol (Brake Fluid)
•Hydraulic Oil (Petroleum Base) Hydrocarbons
•Lubricating Oils (Petroleum) Hydrocarbons
•Naphtha (Petroleum Spirits) (Thinner)
Petroleum fractions
•Silicone Oils
•Linseed Oil (Flaxseed Oil) Glycerides
•Mineral Oil (Petroleum) Hydrocarbons
The multi-position handle design allows easy adjustment when
moving from light to heavy viscous fluids.
©
For a more detailed list, see chart on page 4.
© Indicates change
Form 404253
MODEL 1335
- B5
Section
Page
- 40C
