DESCRIPTION

The 1810 Centro-Luber is a manually operated multiple stroke grease pump for use on machines where periodic manual
lubrication is acceptable. It is used as the pumping unit for a centralized lubrication system having a single line circuit of
Series SL-1, SL-32, or SL-33 Injectors. Injectors can be used in combination where bearing sizes or lubricant requirements
indicate such a combination advantageous and most efficient.
Pump dispenses grease up through NLGI #1 and discharges an established amount (*.160 cu. in.) into the circuit for each
full stroke of the pump handle. A built-in cycle indicator in the pump shows completion of the lubrication cycle.
*Based on lubricants that are free of entrapped air. Lubricants that are specifically aerated will reduce output of pump.
Model 1810 has a spring loaded follower in the reservoir and is filled with a filler pump through a filler fitting.

SPECIFICATIONS

LUBRICANT RESERVOIR
OUPUT CAPACITY
* .160 cu in.
per stroke (150 cu. in.)

SUPPLY LINE SPECIFICATIONS

SEAMLESS STEEL
TUBE SIZE
3/8" O.D. x .028" Wall
A+B+C+D+E+F must not exceed maximum supply line
length shown above.
FILLER PUMP
DELIVERY
HOSE
COUPLER
APR - 96
LUBRICANT
INJECTOR
OUTLET
SYSTEM
5 lb. 1/4" NPTF
SL-32
Female
SL-33
MAXIMUM LENGTH OF
SUPPLY LINE GREASE
NLGI #0 NLGI #1
50 Ft. 25 Ft.
AIR VENT
HOLE
RESERVOIR

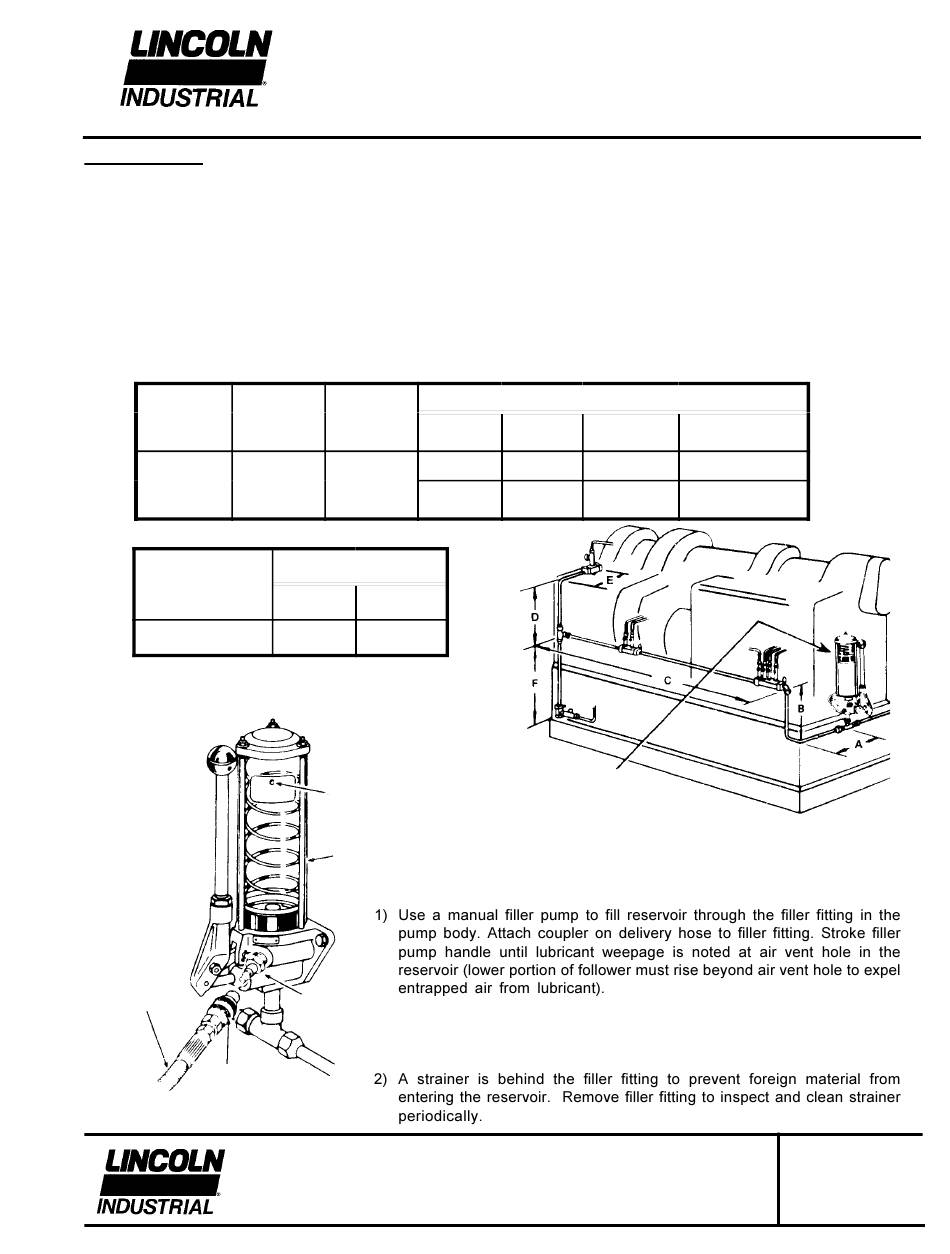

TO FILL MODEL 1810 WITH FILLER PUMP

FILLER
FITTING
NOTE: When filling the reservoir, caution should be used, as extreme
pressure can cause damage to reservoir and follower assembly.
One Lincoln Way
St. Louis, Missouri 63120-1578
(314) 679-4200
MANUAL CENTRO-LUBER,
**Pressure indicator of pump set at factory.
LUBRICANT OPERATING PRESSURE (PSI)
MINIUM MAXIMUM
SL-1 1,850 3,500
1,200 3,500
1810
CENTRO-LUBER CENTRALLY
LOCATED ON MACHINE
FOR CONVENIENCE
OF FILLING AND
Operation
Copyright 1996
Printed in U.S.A.
Model 1810
GREASE PUMP
Series "G"
RECOMMENDED
2,500**
2,500**
- C8
Section
- 62K
Page
FORM 402621
