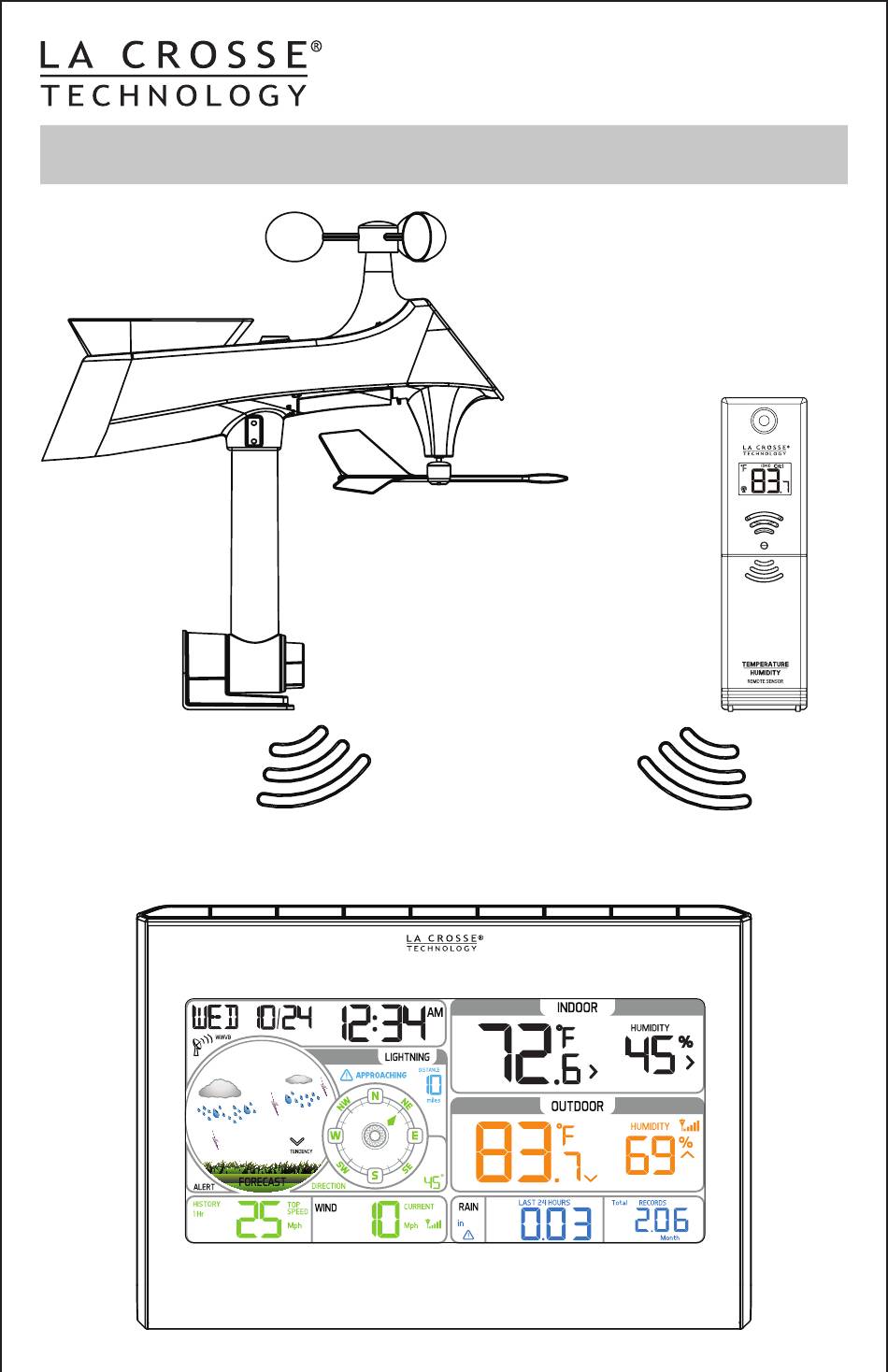

- Page 1 Model: 328-2314 Instructional Manual DC: 020416 Wireless Professional Weather Station ALERTS W/CHILL TEMP RAIN WIND LIGHT...
-
Page 2: Table Of Contents
WWVB Atomic Time Signal Search ........... Replace Windcups ..............Replace Directional Vane ............Multi-sensor Solar Panel ............Factory Reset/Clear Memory ........... Care and Maintenance ............Warranty and Support ............Specifications ............... FCC Statement ..............Canada Statement ..............Page | 1 www.lacrossetechnology.com/support 328-2314... -
Page 3: Setup Preparation
Hold the TEMP button for 3 seconds to search for the sensor. • The tower icon will flash for 3 minutes while searching. Search for Multi-sensor • Hold the WIND button for two seconds. • The tower icon will flash for 3 minutes while searching. 328-2314 www.lacrossetechnology.com/support Page | 2... -
Page 4: Initial Setup And Assembly
3. Insert pole into the bottom of sensor and secure with two screws. Note: Your own mounting pole (1.2 inches, 3.1 cm, not included) may be inserted into the sensor, instead of using the mounting bracket and pole included. Page | 3 www.lacrossetechnology.com/support 328-2314... - Page 5 1 2 3 °C/°F 1 2 3 °C/°F Channel Temperature Selector & Humidity Alternate Note: At temperatures below 14°F (-10°C) the sensor display will turn off to protect the LCD. Sensor will still transmit data. 328-2314 www.lacrossetechnology.com/support Page | 4...
- Page 6 W/CHILL TEMP ALERTS RAIN WIND LIGHT Note: Your weather station should have readings in all sections. Wind and Rain will show 0’s (connected) until wind or rain occur or are simulated. Page | 5 www.lacrossetechnology.com/support 328-2314...
-
Page 7: Mounting Instructions
See N, S, E W, embossed on the top of the sensor. Use the bubble level on the top of the • sensor to ensure it is level, for accurate rainfall readings. 328-2314 www.lacrossetechnology.com/support Page | 6... -
Page 8: Mounting Continued
Attach to mounting surface with screws through the mounting • bracket. The sensor can be mounted from the bottom or from the side. • Alternatively: Insert your own mounting pole sensor. • Tighten screws • Mounting bracket would not be used. • Page | 7 www.lacrossetechnology.com/support 328-2314... -
Page 9: Lcd Features
Wind Direction Degrees/Letters A A C A A C Wind Speed/History Wind History (1 Hour Default) Top Speed (Last 60 minutes) Wind Speed Alert Icon A A C Current Speed (30 Second Average) Multi-sensor Reception 328-2314 www.lacrossetechnology.com/support Page | 8... -
Page 10: Lcd Features Continued
Heat Index/Wind Chill/Dew Point Humidity Alert Icons Low Battery Icon-TH Sensor Temperature Reception Icon A A C Rainfall Rainfall Alert Icon (24 Hours) Rainfall History Records A A C (1 hour default) 24 Hour Running Rainfall Total Page | 9 www.lacrossetechnology.com/support 328-2314... -
Page 11: Button Functions
Press to decrease value by one • Wind, Rain, Temp, Alerts Mode: Hold to decrease quickly Press to exit any setting mode • Wind, Rain, Temp Mode: Hold 5 seconds to reset • readings to current 328-2314 www.lacrossetechnology.com/support Page | 10... -
Page 12: Settings: Time, Date, Units
10. Wind Direction in degrees or cardinal direction 11. Wind Speed MPH or KPH 12. Lightening Miles or Kilometers Note: Press the LIGHT button at any time to exit or wait 30 seconds without pressing a button. Page | 11 www.lacrossetechnology.com/support 328-2314... - Page 13 7. Set Date and Date Format 6. Set Year and Month 9. Rainfall IN or MM 8. Fahrenheit or Celsius 10. Direction: degrees or letters 11. Wind speed MPH or KPH 12. Lightening miles / kilometers 328-2314 www.lacrossetechnology.com/support Page | 12...
-
Page 14: Wind Speed Readings
24 Hour Month Year Reset Wind Speed History: • While viewing individual values, hold the MINUS button for five seconds to reset the value. • Wind Speed, time and date stamp will reset to current. Page | 13 www.lacrossetechnology.com/support 328-2314... -
Page 15: Wind Direction Readings
• In the settings menu you can select No Lightning to display approaching distance in miles or kilometers. Note: On occasion, turning on florescent lights, magnetic switches, or other electrical discharges may provide a false lightning reading. 328-2314 www.lacrossetechnology.com/support Page | 14... -
Page 16: Rainfall Readings
7-day Month Year Total (since setup) Reset Rainfall History: • While viewing individual values, hold the MINUS button for five seconds to reset the value. • Rainfall, time and date stamp will reset to current. Page | 15 www.lacrossetechnology.com/support 328-2314... -
Page 17: High/Low Temperature And Humidity Readings
Outdoor Humidity LOW Outdoor Humidity HIGH Reset High/LOW Temperature/Humidity Records: • While viewing individual values, hold the MINUS button for five seconds to reset the value. • Temperature, humidity, time and date stamp will reset to current. 328-2314 www.lacrossetechnology.com/support Page | 16... -
Page 18: Wind Chill-Heat Index-Dew Point Readings
• When the outdoor temperature reaches the ice alert range, the ice alert icon will flash (no sound) • When the temperature is above 37.4 °F (3 °C) or below 28.4 °F (-2 °C), the alert icon will not show. Page | 17 www.lacrossetechnology.com/support 328-2314... -
Page 19: Set Weather Alerts
• Outdoor HIGH Humidity Value 10%RH-99%RH • Lightening ON/OFF • Lightening Value 0-25 miles (0-40 kilometers) • 24-hour Rainfall ON/OFF • 24-hour Rainfall Value 0-393 inches (0-99.9mm) • Top Wind Speed ON/OFF • Top Wind Speed Value 0-111.8 (0-180kph) 328-2314 www.lacrossetechnology.com/support Page | 18... - Page 20 5. The Indoor LOW temperature alert value will flash. 6. Press the buttons to change the alert value. 7. Press the ALERTS button to confirm and move to the next alert. 8. Press the LIGHT button to exit. Adjust value: (+/- button) Page | 19 www.lacrossetechnology.com/support 328-2314...
- Page 21 15. Press the ALERTS button to confirm and move to the next alert. Or press the LIGHT button to exit. Wind Alert ON (armed) Press ALERTS to set value Adjust value: (+/- button 328-2314 www.lacrossetechnology.com/support Page | 20...
-
Page 22: Temperature/Humidity Trend Arrows
12-hours with 70-75% accuracy. Sunny Partly Sunny Cloudy Rainy Stormy Snowy Note: Snowy icon will appear in place of rainy and stormy icons when the outdoor temperature is below 32°F. Page | 21 www.lacrossetechnology.com/support 328-2314... -
Page 23: Forecast Tendency Arrows
The first search is 2 hours after startup. • The atomic time search initiates every six hours until successful reception. Each following night. • The tower icon shows when sensor have received the signal. • For information about WWVB visit: www.nist.gov/pml/div688/grp40/wwvb.cfm 328-2314 www.lacrossetechnology.com/support Page | 22... -
Page 24: Replace Windcups
2. Remove direction vane 3. Install new vane 4. Tighten screw Note: The directional vane attached to the stem on the sensor. The screw will tighten to the flat side of the stem for a secure fit. Page | 23 www.lacrossetechnology.com/support 328-2314... -
Page 25: Multi-Sensor Solar Panel
4. Once connected to the outdoor sensors (allow 3 minutes) the Wind Speed, Outdoor Temperature/Humidity, and Rainfall will show current readings. Note: In the absence or wind or rain, these readings will show 0’s, indicating sensor connection. 328-2314 www.lacrossetechnology.com/support Page | 24... -
Page 26: Care And Maintenance
• If the product is not working properly, change the batteries and/or check the AC adapter connection. Warranty and Support Information La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. -
Page 27: Specifications
• Multi-sensor/TH sensor: over 24 month with reputable batteries Dimensions: • 328-2314 Weather Station: 7.60” W x 5.24” H x 0.90” D in (193.04 W x 133.10 H x 22.86 D mm) • TX231RW Multi-sensor: 13.62” W x 13” H x 5.16” D in (345.95 x 330.20 x 131.06 mm) -
Page 28: Fcc Statement
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Page | 27 www.lacrossetechnology.com/support 328-2314...
