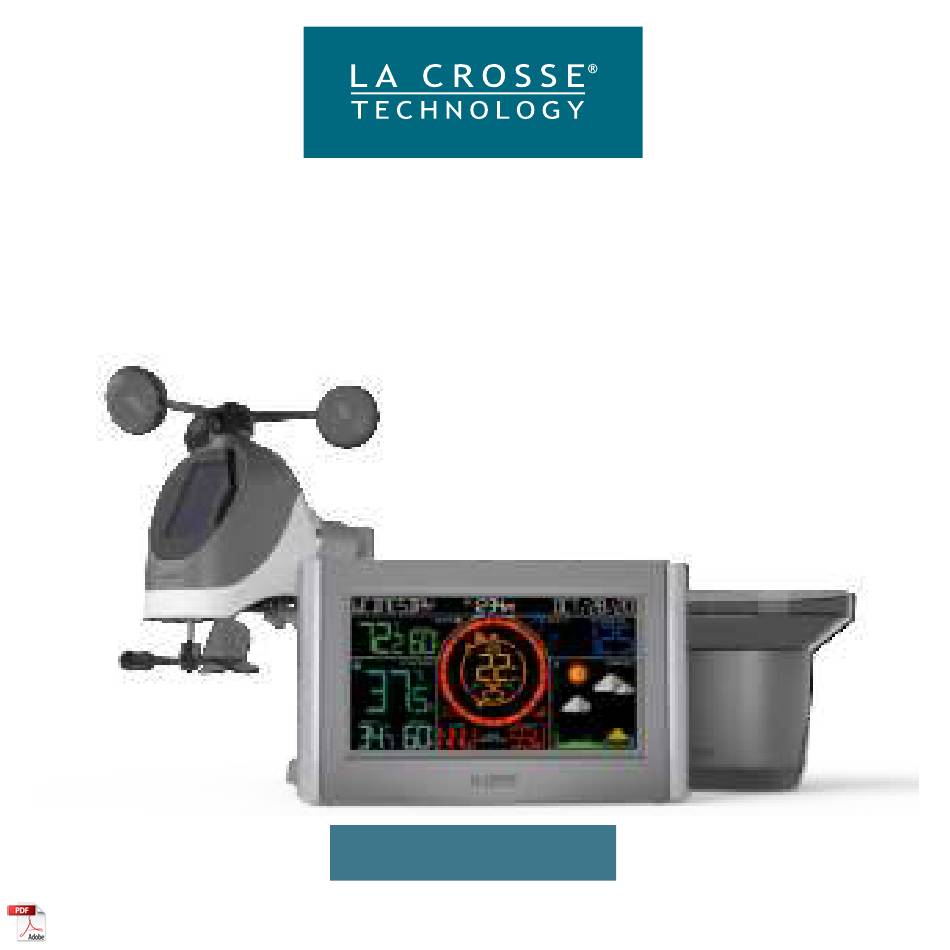

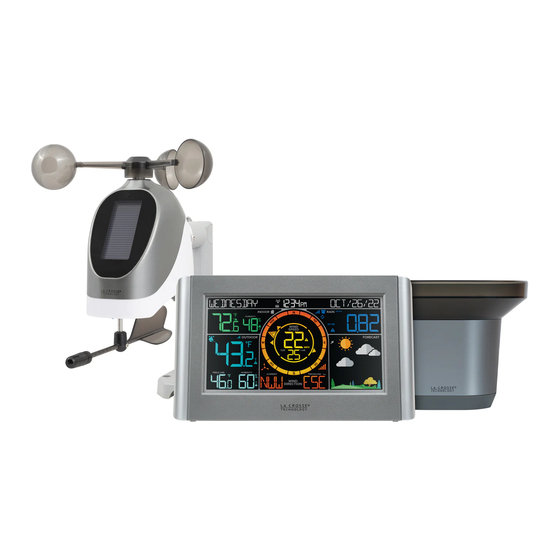

  • Page 1 Wireless Professional Weather Station SET UP GUIDE MODEL: 328-1414...
  • Page 2: Table Of Contents

    Table of Contents BASICS PRESSURE & RAIN WIND Initial Setup Pressure Settings Viewing Wind Data Buttons View Pressure & Rain Wind Speed Records LCD Display Icons Readings Reset Wind Records Station Settings Select Pressure or 24-Hour Position the Breeze Atomic Time Signal Rain Sensor Daylight Saving Time...
  • Page 3: Basics

    BASICS Initial Setup Power Up Back of Station Inside of Rain Sensor Bottom of Breeze Sensor Model No. 328-1414 Model No. TX145R Model No. TX145WSDTHv3 Remove the top Install the power cord into an Install 3 “AA” batteries Funnel and install...
  • Page 4: Buttons

    BASICS Buttons 1. RAIN 2. WIND 3. TEMP. Press to view Rain History. Press to view Wind Speed Press to view Temperature While viewing, hold the History. While viewing, hold the and Humidity History. While CLEAR | - button to delete the CLEAR | - button to delete the viewing, hold the...
  • Page 5: Lcd Display Icons

    BASICS LCD Display Icons Atomic Time Low Battery Auto Dim Pressure Breeze Sensor Add-on Sensor Temp/Humidity Temp/Humidity Alerts Wind Direction Rain Sensor Reception Prevailing Direction Auto-scroll...
  • Page 6: Station Settings

    BASICS Station Settings Hold the button to enter the Settings Menu. Use the MODE | + CLEAR | - button to adjust the values, and the button to confirm and move to the next setting. You may exit the menu at any time by pressing the LIGHT button.
  • Page 7: Pressure Settings

    PRESSURE & RAIN View Pressure & Rain Readings • Pressure and Rainfall readings share the same display area on your station. 24-HOUR Rain Pressure Auto-scroll both readings Select Pressure or 24-Hour Rain to display: • Press the MODE | + button to toggle between Pressure and 24-hour Rain readings.
  • Page 8: Rain History Readings

    RAIN READINGS Rain History Readings Press and release the RAIN button to view different rainfall history readings. When viewing Monthly Rain, press the MODE | + button to view the current month and the past eleven months of rain history. When the Auto-scroll Icon is displayed, the station will toggle between all Rain History readings.
  • Page 9: Reset Rain Records

    1 Year Rainfall RAIN Reset Rain Records Press and release the RAIN button to view indiviual Rainfall Records. Hold the CLEAR | - button to reset the 1 Year Rainfall Reset rainfall record you are viewing to zero. Positioning the Rain Sensor For Accurate Measurements •...
  • Page 10: Cleaning And Storage

    RAIN Cleaning and Storage Cleaning Your Rain Sensor • Leaves, grass, and other debris may need to be removed periodically from the funnel of your Rain Sensor. • Insects or dirt may also get inside your Rain Sensor and restrict the movement of the rocker.
  • Page 11: Viewing Wind Data

    WIND Viewing Wind Readings 1. COMPASS ROSE 2. CURRENT WIND SPEED 3. LOW BATTERY ICON Appears when the Breeze Displays cardinal direction The top wind speed in the Sensor batteries need to with animated arrows past 31 seconds. be replaced. (16 directions total).
  • Page 12: Wind Speed Records

    WIND Wind Speed Records Viewing Wind Speed Records Press and release the WIND button to toggle through wind speed records with time and date stamps. The wind speed records include: Past 24 hours, 7 days, 1 month, & 1 year. Monthly Record Monthly Record Reset Reset Wind Speed Records...
  • Page 13: Position The Breeze

    WIND Positioning the Breeze Sensor For Accurate Measurements • Ensure the Breeze Sensor is is mounted level with the Solar Panel facing directly to the South. This will help optimize battery life and transmit correct wind direction. • Ideally, the Breeze Sensor should be mounted on the tallest object in your area.
  • Page 14: Advanced Installation

    Chimney Mount Tripod Setup U-bolt Adapters The illustrations above are not to scale and are for informative purposes only. La Crosse Technology is not responsible for any damages or injury that may occur during installation.
  • Page 15: View Temperature

    TEMPERATURE & HUMIDITY Viewing Temperature & Humidity Readings 1. INDOOR TEMPERATURE 2. INDOOR HUMIDITY 3. WIND ICON Current Indoor Temperature. Current Indoor Humidity. Indicates the Temperature/ Humidity readings are from the Breeze Sensor. 4. RECEPTION INDICATOR 5. OUTDOOR TEMPERATURE 6. LOW BATTERY INDICATOR Indicates if the station is Current Outdoor Appears when the sensor...
  • Page 16: Temperature & Humidity

    TEMPERATURE & HUMIDITY Temperature & Humidity Records View Temperature/Humidity Records Press and release the TEMP button to toggle through temperature/humidity records with time and date stamps. Temperature/Humidity Records Order Humidity Records 1. Press the TEMP button to view the individual temperature and humidity records you would like to reset.
  • Page 17: Set Alerts

    ALERTS Set Alerts Hold the button to enter Alert Settings. ALERTS MODE | + CLEAR | - Use the button to Arm/Disarm Alerts, and to adjust Alert Values when flashing. Press the ALERTS button to move to next alert. Alert Setting Order High Wind Speed 24 Hour Rainfall Low Pressure...
  • Page 18: Viewing Forecast Data

    FORECAST Viewing Your Forecast Data Spring (March 20 to June 20 Seasonal Trees The foliage scene in the forecast section changes seasonally. The dates are pre-programmed. Summer (June 21 to Sept. 20 Forecast Icons Your station will use changes in barometric pressure to predict your weather to come in the next 12 hours.
  • Page 19: Adjustable Backlight

    FORECAST Day/Night Forecast From 7am to 6:59pm the forecast will show a Sun Icon when the forecast is Sunny or Partly Sunny. From 7pm to 6:59am the forecast will show a Moon 7am to 6:59pm Icon when the forecast is Sunny or Partly Sunny. Note: The Moon Icon does not change to provide Moon Phase.
  • Page 20: Add-On Th Sensor

    ADD-ON SENSOR Add-on Temperature & Humidity Sensor If you feel the temperature & humidity is not reading correctly from your Breeze Pro Sensor, you can add a separate sensor to your system. Scan the QR code or visit: bit.ly/328-1414_parts to find a list of compatible add-on sensors.
  • Page 21: Low Battery

    SUPPORT Low Battery Indicator We’re Here to Help If you require additional support, get in touch By Wind, replace batteries in the with our friendly customer support team Breeze sensor. based in La Crosse, WI. By Time, replace batteries in the Station. By Rain, replace batteries in the Rain sensor.
  • Page 22: Specifications

    RAIN SENSOR (TX145R) SPECIFICATIONS • Rainfall Range: 0-9999mm (0-393.6 in) • Transmission Range: 330 feet (100 meters) WEATHER STATION (328-1414) • Power Requirements: 2 “AA” batteries • Indoor Temp. Range: 32°F to 122°F (0°C to 50°C) (not included) • Indoor Humidity Range: 10 to 99%RH •...
  • Page 23: Warranty

    WARRANTY INFO La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601 For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty...
