Summary of Contents for Mottura Gorilla Automatic 86510D/SA

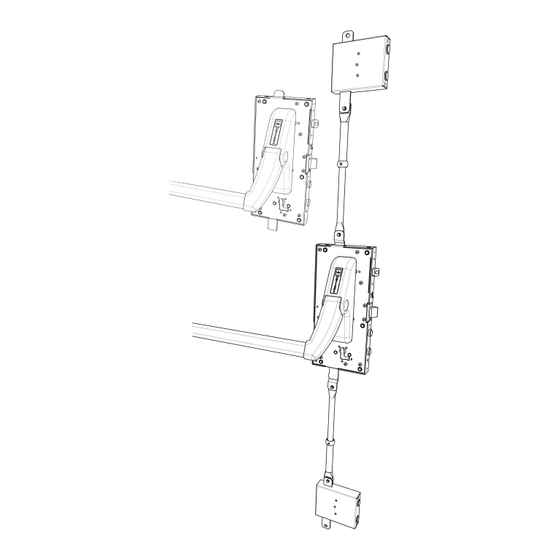

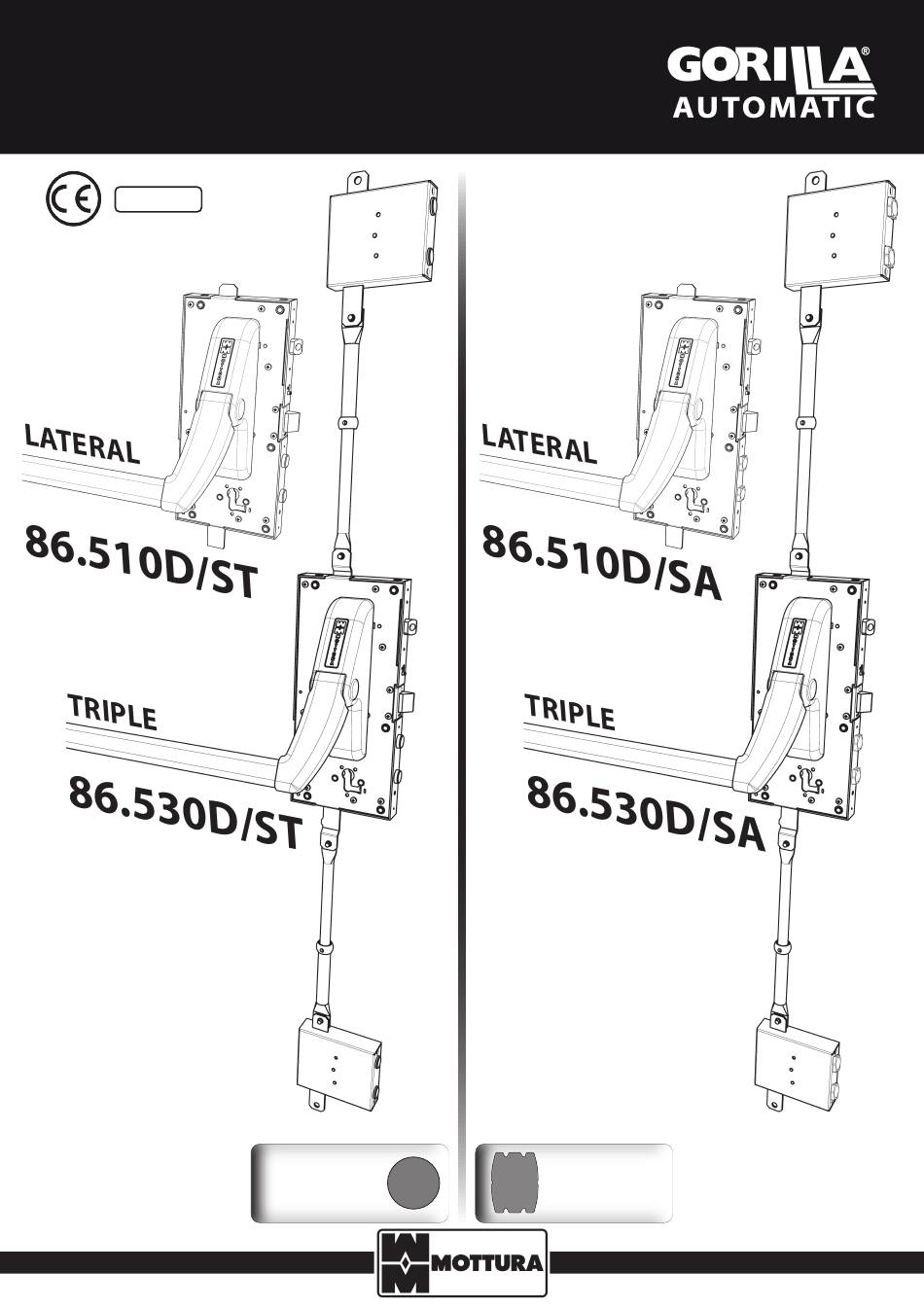

- Page 1 SECURITY LOCKS WITH EMERGENCY EXIT BAR INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS EN 1125 LATCH LATCH WITH WITH Ø 18mm MM PROFILE PROFILE FILED...
-
Page 2: General Instruction
In the event of a recurring fault of the same cause, or of an unrepairable fault, Mottura Serrature di Sicurezza S.p.A., at its sole discretion, may decide to replace the entire product. -
Page 3: Exploded View
Exploded view M5 fastening screws (no. 4) M5 fastening screws (no. 4) Cover Lock activating device Plug Neutral side bar support device Plug Lever Seeger Plug Plug Seeger Cover Horizontal bar Lever Should a door closer be necessary to return the door in the closed position, ensure that the use of the door is not difficult for children, the elderly and the infirm. - Page 4 A = LATERAL ATTACHMENTS - B = BUSHINGS Fig.4 M = OUTSIDE HANDLE - P = ATTACHMENTS MAIN SUPPORT S = INSIDE HANDLE Fig.5 86530D/ST - 28/37/50/53 Vers. 86530D/SA 86530D/SA - 36/50 Ø18 Vers. 86510D/SA • Using 4 M5 screws, fasten the lock activating device on the internal panel, using fastening pins P (Fig.6).
- Page 5 Setting bars in triple version • To fix the bars in the triple version, press (overcoming the force of the spring) the latchbolt fully in until it is flush with the panel. Check that the switchlock bolts have retracted completely, then tighten the rod locking screws.
- Page 6 Note. Bolts drilling with reference to the dead bolt, must also make it possible to open the door even when the latter is subject to pressure (See UNI EN1125). • For correct operation of the lock, we recommend installing a CHAMPIONS MOTTURA European profile cylinder, with fastening using a lateral screw (Figure below), or with patented Mottura “at- tachment” (Figure on the side). Cylinder fastening screw N.B.
- Page 7 • The last operation involves assembly of internal and external escutcheons (if provided) as in the following diagram : Double cylinder version + handle (hole M - template fig.7) Double cylinder version Half cylinder version INTERNAL SIDE EXTERNAL SIDE N.B. The cylinder, escutcheons and handle are not included in the package. Once installation has been carried out, check the proper functioning of the handle, with the door closed (with all turns);...
- Page 8 CE Marking with identification number Manufacturer Certifying body Regulations and Date Classification Category of use - Only one category of use is identified with level 3 Duration - Two categories are identified: - level 6 100,000 cycles - level 7 200,000 cycles Door mass - Three categories are identified : - level 5 up to 100 kg...
- Page 9 PANEL DRILLING TEMPLATES Fig. 7 NEUTRAL LOCKING SIDE SUPPORT SIDE...
- Page 10 99282GB- GORILLA AUTOMATIC - REV. 02...
-
Page 11: I N S Ta L L At I O N S H E E T
I N S TA L L AT I O N S H E E T CLIENT ADDRESS CITY DISTRICT POST CODE HEAD OFFICES No. DOORS DOOR CONFIGURATION INSTALLED DEVICES No. DEVICE CODE DATE OPERATING FORCE (N) OUTCOME (max 80N) NOTES SIGNATURE INSTALLER DATA COMPANY NAME... -
Page 12: M A I N T E N A N C E S H E E T
M A I N T E N A N C E S H E E T MAINTENANCE ENGINEER DATA COMPANY NAME STAMP AND SIGNATURE ADDRESS POST CODE CITY DISTRICT TEL. EMAIL MAINTENANCE START DATE SCHEDULED INSPECTION LOG No. ITEM CODES DATE OPERATING FORCE (N) OUTCOME (max 80N) NOTES SIGNATURE www.mottura.it...
