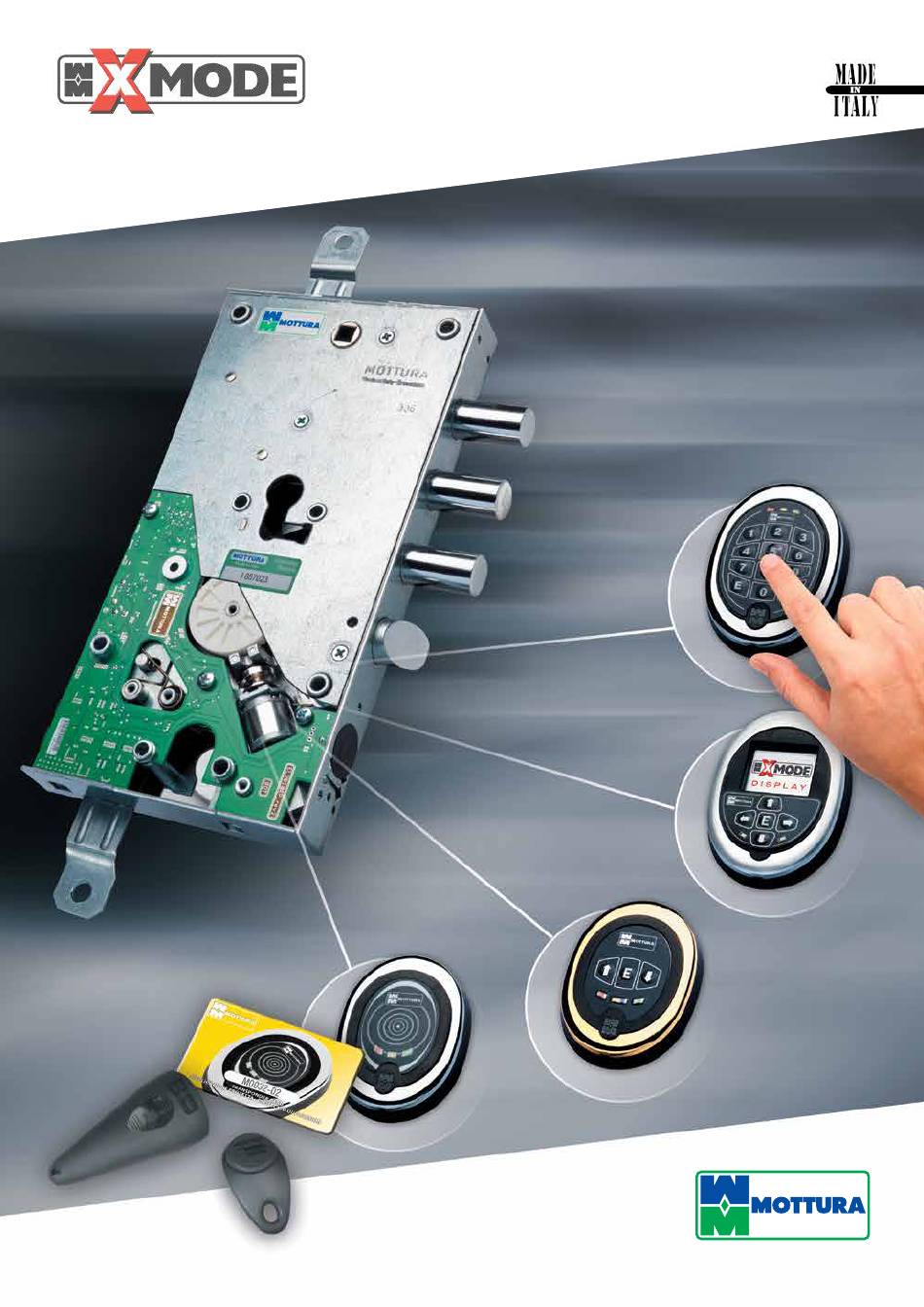

- Page 1 The best in security is at your fingertips M. 2.0 safeguarding your security...
- Page 2 The perfect balance between style, design and leading-edge technology, the M2.0 interfaces with a range of home automation systems. Ensure that the security of your home is always under control. With X MODE M2.0, you can enjoy the utmost security in the utmost style!

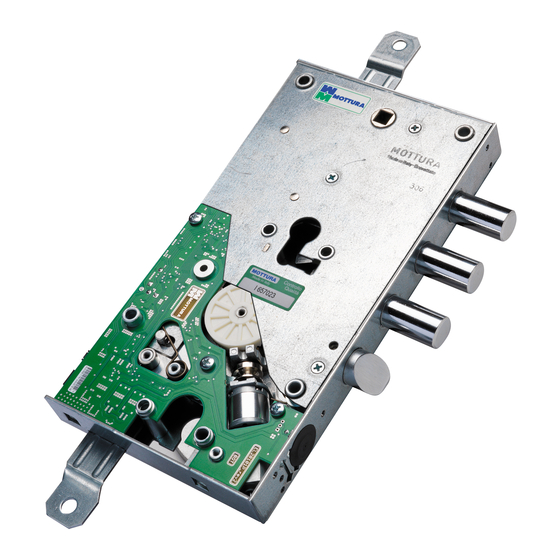

- Page 3 MAXIMUM SECURITY WITH MAXIMUM STYLE Interchangeable with most mechanical locks REQUEST: ambidextrous anti-burglary locking system with electronic sensor PATENTED to avoid false moves in the absence of the cylinder Travel 29 mm Ambidextrous lock latchbolt Reversible Mains or battery powered Magnetic door status sensor which gives permission to secure the lock...
- Page 4 EASY OPENING The X MODE M2.0 opens from the outside with a simple swipe of your TAG key, or by typing the PIN code into the keypad, meaning you can get rid of that old, bulky set of keys.
- Page 5 ANTI-BURGLARY SAFETY The X MODE M2.0 has an internal mechanical device (optional) with an ambidextrous trap which is engaged if an attempt is made to remove the cylinder. The same optional version also includes a PATENTED electronic cylinder detection device, to prevent accidental activation of the trap during installation or maintenance.
- Page 6 - through mains and + rechargeable backup batteries SAFE, ADVANCED WRONG CODE LOCKING After 10 incorrect key readings, the X MODE M2.0 is locked for a predetermined time and emits an audible signal After 5 incorrect pin inputs, the system is locked for a predetermined time, preventing other codes from being entered and activating an audible signal.
- Page 7 Optional Optional REMOTE LOCK CONTROL The X MODE M2.0 can be connected to a home automation network (GEWISS, BTICINO, VIMAR, etc.) via the remote control (optional) to check the status of the door and a range of other useful information for the security of your home.
- Page 8 1 lock, 1 magnet, 1 board-internal escutcheon connection cable, 1 board-external escutcheon connection cable. 49.M03W8/7... X MODE M2.0 FOR REVERSIBLE RIM LOCKS WITH PROTECTED DUPLICATION KEYS Lock with BATTERY or MAINS function, complete with electronic board inside lock. Bolt centre distances in mm 28 (49.M03W8...) /37 (49M03W7...)
- Page 9 99.685XX INTERNAL ESCUTCHEON (65 x 90 mm.) Central body in black finish, membrane keypad, 4 LED lights and treated metal escutcheon. Finishes: BR bronze CR chrome OT brass PV gold PVD coating AA anodized silver CS satin chrome 99.686XX EXTERNAL ESCUTCHEON WITH BACKLIT KEYPAD AND TRANSPONDER READER (65 x 90 mm) Central body in black finish, membrane keypad, 3 LED lights and treated metal...
- Page 10 Central body in black finish with treated metal escutcheon. Finishes: BR bronze CR chrome OT brass PV gold PVD coating AA anodized silver CS satin chrome 94.348XX STRIKER PLATE FOR X MODE M2.0 (356 x 35 mm) CENTRE DISTANCE VARIANT: 94348/28/37 In nickel-plated steel.
- Page 11 95.424XX 99.648 EXTERNAL ESCUTCHEON WITH 50 MM HOLE. INCREASED INTENSITY MAGNET FOR X MODE M2.0 LOCK SENSOR Central body in black finish with treated metal escutcheon. Magnet with black resin support. Finishes: BR bronze CR chrome OT brass PV gold PVD coating AA anodized silver CS satin chrome Pack: 1 pezzoesto berum reris que volorem eaquaerum vero volo blab.
- Page 12 ACCESSORIES 99.698 BOARD-INTERNAL ESCUTCHEON CONNECTION CABLE Cable length: approx 1000 mm. 99.699 BOARD-EXTERNAL ESCUTCHEON CONNECTION CABLE Cable length: approx 1000 mm. 99.700 LOCK-BOARD CONNECTION CABLE (only for versions with electronic board external to lock) Cable length: approx 1000 mm. 99.701 EXTERNAL PERIPHERAL-BOARD CONNECTION CABLE (for example, to buttons, card readers, print readers, etc..) VIA CLEAN CONTACT Cable length: approx.
- Page 13 99.702 BOARD-REMOTE CONTROL CONNECTION CABLE (for use with item 99.684) Cable length: approx 4000 mm. 99.703 TUBULAR WIRED BATTERY HOLDER (9V 6 TYPE D BATTERIES not supplied) Cable length: approx 1800 mm. 99.704 DRAWER BATTERY HOLDER, WIRED (9V 6 TYPE D BATTERIES not supplied) Cable length: approx 1800 mm.
- Page 14 (not provided with lock) Quantities provided vary according to need. 99.693 PROTECTED DUPLICATION TRANSPONDER KEY (not provided with lock) Quantities provided vary according to need. Duplicates of this key are produced by Mottura Serrature di Sicurezza S.p.A., through the Mottura Clubs.
- Page 15 99.705 FREE DUPLICATION CARD WITH TRANSPONDER (not provided with lock) Quantities provided vary according to need. 99.706 FREE DUPLICATION TRANSPONDER KEY (not provided with lock) Quantities provided vary according to need. 99.707 FREE DUPLICATION TRANSPONDER KEY (not provided with lock) Quantities provided vary according to need.
- Page 16 On request, locks may be supplied with: anti-burglary cylinder extraction protection - mechanical and electronic. The electronic sensor (patented by Mottura) to avoid false moves in the absence of the cylinder. CLASSIFICATION The tests carried out on the X MODE lock in accordance with regulation EN 14846:08 determine that it be classified as follows :...
- Page 17 99704 x 1 (battery holder drawer) 99691 x 3 (card) or 99692 x 3 (transponder keys) or 99693 x 3 (transponder keys + integrated cylinder key). To assist you in choosing your lock and accessories, an electronic configurator is available on the website at www.mottura.it...
- Page 18 SEMI-AUTOMATIC LOCK M2.0 push-button escutcheon...
- Page 19 The semi-automatic X MODE M2.0 is a solution that is particularly well suited to installations where automatic locking of the door is required both from the inside and the outside, simply by closing the door, without the use of electronic keys.
- Page 20 BR bronze CR chrome OT brass PV gold PVD coating AA anodised silver CS satin chrome On request, the lock can be supplied with the mechanical and electrical anti-burglary locking system (extraction of cylinder). The electronic sensor (patented by Mottura) to avoid false moves in the absence of the cylinder.
- Page 21 BR bronze CR chrome OT brass PV gold PVD coating AA anodised silver CS satin chrome On request, the lock can be supplied with the mechanical and electrical anti-burglary locking system (extraction of cylinder). The electronic sensor (patented by Mottura) to avoid false moves in the absence of the cylinder.
-
Page 22: Technical Drawings
TECHNICAL DRAWINGS RIM LOCK VERSION... - Page 23 MORTISE VERSION...
- Page 24 MOTTURA exports SECURITY to over sixty countries across five continents. MOTTURA guarantees the SECURITY of its customers by providing key duplication protection which is managed by the MOTTURA CLUB, distinctive service points that can be contacted for assistance. Efficient service and customer care are our main priorities! MOTTURA, always providing SECURITY.
