Summary of Contents for Mottura Gorilla Automatic 86.410D/ST

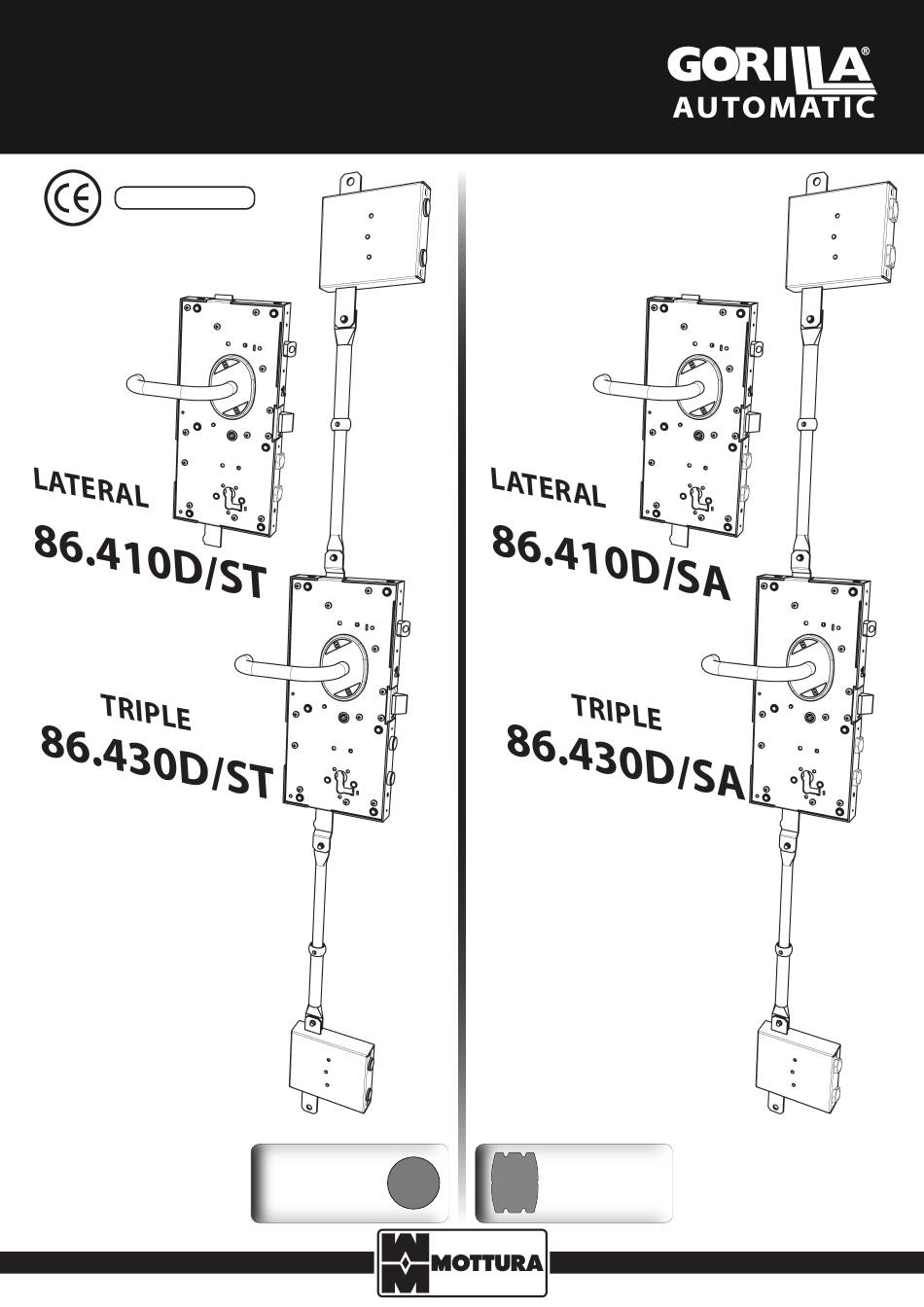

- Page 1 SECURITY LOCKS WITH EMERGENCY HANDLE INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS EN 179 : 2008 LATCH LATCH WITH WITH Ø 18mm MM PROFILE PROFILE FILED...
- Page 2 The lock operating device should be lubricated, using Mottura lubricant (for locks), once a year or whenever a stiffening of the mecha- nisms is detected. Do not use oil or other lubricants: the use of such substances promotes the deposit of dust and fragments that may affect the correct operation of the lock.
-
Page 3: General Instruction
In the event of a recurring fault of the same cause, or of an unrepairable fault, Mottura Serrature di Sicurezza S.p.A., at its sole discretion, may decide to replace the entire product. -
Page 4: Installation Instructions
Installation instructions Fasten the lock to the frame (door fastening plane) using the bushings (ref. B Fig. 3,4) present on the same by means of M6 screws (not included) or, where there is lateral attachment, use the M6 housing nuts (ref. A Fig. 3,4). When calculating lock fixing position, remember that the anti-panic device (emergency handle) is located from 900 to 1100 mm above finished floor level with the door closed (if you know that most of the people using the rooms are children, consider lowering the handle). - Page 5 Setting bars in triple version • To fix the bars in the triple version, press (overcoming the force of the spring) the latchbolt fully in until it is flush with the panel. Check that the switchlock bolts have retracted completely, then tighten the rod locking screws.
- Page 6 • For correct operation of the lock, we recommend installing a CHAMPIONS MOTTURA European profile cylinder, with fastening using a lateral screw (Figure below), or with pa- tented Mottura “attachment” (Figure on the side). Cylinder fastening screw N.B. In versions with a half cylinder, one for 30 mm thick locks must be used (C28B...- C30B...- C43B...- C48B...) •...
- Page 7 • The lock closes automatically. When the door is closed, the pressure cylinder auto- pressure cylinder matically closes the latchbolts, which close all of the turns. To set the protrusion of the pressure cylinder, turn the screw on the cylinder with a flat-head screwdriver (turn clockwise to increase protrusion).
- Page 8 CE Marking with identification number Regulations and Date Manufacturer Certifying body Classification Category of use - Only one category of use is identified with level 3 Duration - Two categories are identified: - level 6 100,000 cycles - level 7 200,000 cycles Door mass - Three categories are identified : - level 5 up to 100 kg - level 6 up to 200 kg...
- Page 9 NOTE Fig.5 TEMPLATE...
- Page 10 NOTE 99283GB - GORILLA AUTOMATIC - REV. 00...
-
Page 11: I N S Ta L L At I O N S H E E T
I N S TA L L AT I O N S H E E T CLIENT ADDRESS CITY DISTRICT POST CODE HEAD OFFICES No. DOORS DOOR CONFIGURATION INSTALLED DEVICES No. DEVICE CODE DATE OPERATING FORCE (N) OUTCOME (max 80N) NOTES SIGNATURE INSTALLER DATA COMPANY NAME... -
Page 12: M A I N T E N A N C E S H E E T
M A I N T E N A N C E S H E E T MAINTENANCE ENGINEER DATA COMPANY NAME STAMP AND SIGNATURE ADDRESS POST CODE CITY DISTRICT TEL. EMAIL MAINTENANCE START DATE SCHEDULED INSPECTION LOG No. ITEM CODES DATE OPERATING FORCE (N) OUTCOME (max 80N) NOTES SIGNATURE www.mottura.it SAFEGUARDING YOUR SECURITY...
