- Page 1 H3C WAC360 Series Access Controllers Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com.hk Document version:6W101-20170616...
- Page 2 Copyright © 2014-2017, New H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
- Page 3 Preface The H3C WAC360 Series Access Controllers Installation Guide includes preparing for installation, installing the access controller, troubleshooting, and hardware management and maintenance. This preface includes the following topics about the documentation: Audience. • • Conventions. Obtaining documentation. • Technical support •...
- Page 4 GUI conventions Convention Description Window names, button names, field names, and menu items are in Boldface. For Boldface example, the New User window opens; click OK. > Multi-level menus are separated by angle brackets. For example, File > Create > Folder. Symbols Convention Description...
- Page 5 It is normal that the port numbers, sample output, screenshots, and other information in the examples differ from what you have on your device. Obtaining documentation To access the most up-to-date H3C product documentation, go to the H3C website at http://www.h3c.com.hk. To obtain information about installation, configuration, and maintenance, click http://www.h3c.com.hk/Technical_Documents...
-
Page 6: Table Of Contents
Contents Preparing for installation ············································································································································· 1 Safety recommendations ·················································································································································· 1 General safety recommendations ··························································································································· 1 Electrical safety ························································································································································· 1 Examining the installation site ········································································································································· 1 Temperature and humidity ······································································································································· 2 Cleanliness ································································································································································ 2 Cooling ······································································································································································... - Page 7 Technical specifications ················································································································································· 22 Interface arrangement ··················································································································································· 23 Appendix B LEDs ························································································································································ 24 LEDs ················································································································································································· 24 Index ··········································································································································································· 25 ...
-
Page 8: Preparing For Installation
Preparing for installation Safety recommendations To avoid any equipment damage or bodily injury, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition. General safety recommendations • Do not place the device on an unstable case or desk. The device might be severely damaged in case of a fall. -
Page 9: Temperature And Humidity
Temperature and humidity Maintain the temperature and humidity in the equipment room at acceptable levels. • Lasting high relative humidity can cause poor insulation, electricity creepage, mechanical property change of materials, and metal corrosion. Lasting low relative humidity can cause washer contraction and ESD and cause problems including •... -
Page 10: Cooling
Cooling Leave a minimum of 10 cm (3.94 in) of clearance around the device. • • A good ventilation system is available at the installation site. ESD prevention The device might be damaged by the following Electrostatic discharge (ESD) sources: Outdoor environment—For example, high-voltage power line and lightning. -
Page 11: Installation Accessories
Installation accessories Power cable Power adapter Rubber feet Grounding Grounding cable (provided) (provided) (provided) terminal (provided) (user-supplied) Pre-installation checklist Table 4 Pre-installation checklist Item Requirements Result • There is a minimum clearance of 10 cm (3.9 in) around the device. Ventilation •... -
Page 12: Installing The Device
Installing the device WARNING! Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C Support for permission. Otherwise, H3C shall not be liable for any consequence. Confirming installation preparations Before you install the device, verify that you have read "Preparing for... -
Page 13: Mounting The Device On A Workbench
Mounting the device on a workbench IMPORTANT: Do not place heavy objects on the device. To mount the device on a workbench: Place the device with bottom up and clean the round holes in the chassis bottom. Attach the rubber feet to the four round holes in the chassis bottom. Place the switch with upside up on the workbench. -
Page 14: Connecting The Grounding Cable To The Device
Figure 3 Attaching the ring terminal to the grounding cable Connecting the grounding cable to the device Use a Phillips screwdriver to remove the grounding screw from the rear panel of chassis. Use the grounding screw to attach the ring terminal of the grounding cable to the chassis. Connect the other end of the grounding cable to the grounding strip. -
Page 15: Setting Terminal Parameters
The configuration terminal can be an ASCII terminal with an RS232 serial port or a PC. The description in this section assumes that you use a PC as the configuration terminal. Connect the console cable: Plug the DB-9 female connector of the console cable to the serial port of the PC. Connect the RJ-45 connector to the console port of the device. - Page 16 Figure 6 Connection description Select the serial port to be used from the Connect using list, and click OK. Figure 7 Setting the serial port used by the HyperTerminal connection Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None, and click OK.
- Page 17 Figure 8 Setting the serial port parameters Select File > Properties in the HyperTerminal window. Figure 9 HyperTerminal window On the Settings tab, set the emulation to VT100 or Auto detect and click OK.
-
Page 18: Connecting The Ethernet Cables
Figure 10 Setting the terminal emulation in Test Properties dialog box Connecting the Ethernet cables Connect one end of the Ethernet cable to the copper Ethernet port on the device, and the other end to the Ethernet port on the peer device. After powering on the device, examine the LEDs of the fixed copper Ethernet port. -
Page 19: Verifying The Installation
Press Ctrl+T to start heavy memory test Booting Normal Extend BootWare The Extend BootWare is self-decompressing......Done! **************************************************************************** H3C WAC360 BootWare, Version 1.02 **************************************************************************** Copyright (c) 2004-2017 New H3C Technologies Co., Ltd. Compiled Date : April 19 2017 CPU Type : BCM58622 CPU L1 Cache... - Page 20 Retrieving configuration file failed! User interface con0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the device when the prompt <H3C> appears. During the startup process, the CPLD is automatically upgraded to the latest version.
-
Page 21: Troubleshooting
Verify that the power source specifications are as required. Verify that the power cord is securely connected to the device. Verify that the power cord is in good condition. If the problem persists, contact H3C Support. No display or garbled display on the configuration terminal The configuration terminal has no display or displays garbled text after the device is powered on. -
Page 22: Dealing With Console Login Password Loss
If password recovery capability is enabled, a console user can access the device configuration • without authentication and configure new passwords. If password recovery capability is disabled, a console user must restore the factory-default • configuration before configuring new passwords. Restoring the factory-default configuration deletes the main and backup next-startup configuration files. -
Page 23: Dealing With User Privilege Level Password Loss
When you use TFTP to load software, you entered an incorrect IP address, software name, or TFTP serve path. When you use FTP to load software, you entered an incorrect IP address, software name, username, or password. If the problem persists, contact H3C Support. -
Page 24: Hardware Management And Maintenance
H3C Comware Platform Software Comware Software, Version 5.20, Alpha 3703P60 Copyright (c) 2004-2017 New H3C Technologies Co., Ltd. All rights reserved. H3C WAC360 uptime is 0 week, 0 day, 0 hour, 4 minutes H3C WAC360 with 1 BCM58622 1200MHz Processor 1024M bytes DDR3... -
Page 25: Displaying Detailed Information About The Device
Use the more command to view the content of the decompressed file. Display the operational statistics for each feature module of the device. (Details not shown.) • <H3C> display diagnostic-information Save or display diagnostic information (Y=save, N=display)? [Y/N]:n ================================================================= ===============running CPU usage information===============... -
Page 26: Displaying The Electronic Label Data For The Device
An electronic label is a profile of a device. It contains the permanent configuration, including the serial number, manufacturing date, MAC address, and vendor name. Use the display device manuinfo command to display the electronic label data for the device. <H3C> display device manuinfo Subslot 0 DEVICE_NAME... -
Page 27: Configuring The Exception Handling Method
<H3C> display memory System Total Memory(bytes): 349028320 Total Used Memory(bytes): 103283580 Used Rate: 29% Table 8 Command output Field Description System Total Memory(bytes) Physical memory size (in bytes) of the device. Total Used Memory(bytes) Used memory size (in bytes) of the device. -
Page 28: Rebooting The Device
Schedule a reboot at the CLI to occur at a specific time and date or after a delay. • Power off and then power on the device again. Because this method can cause data loss, H3C • recommends that you use one of the CLI methods. -
Page 29: Appendix A Chassis Views And Technical Specifications

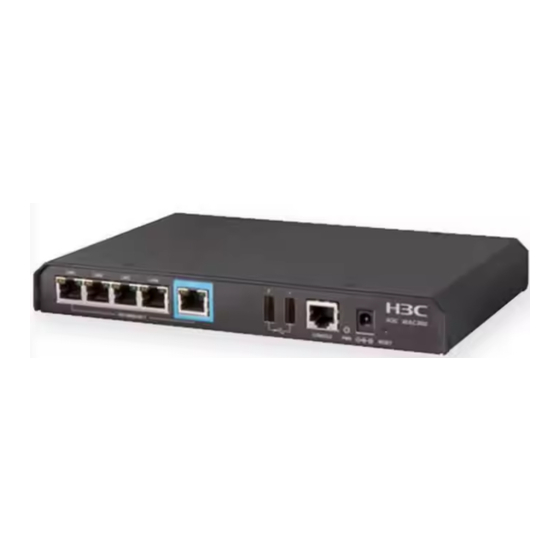

Appendix A Chassis views and technical specifications Chassis views The figures in this section are for illustration only. Figure 13 Front view (1) 100/1000Base-T autosensing Ethernet copper ports 1 to 5 (2) USB ports (3) Console port (4) Power adapter receptacle (5) Reset button (RESET) Figure 14 Rear view (1) Grounding screw... -
Page 30: Interface Arrangement
Item Specification Weight 0.9 kg (1.98 lb) Operating temperature 0°C to 40°C (32°F to 104°F) Relative humidity (noncondensing) 5% to 95% Interface arrangement The device provides five 100/1000 Base-T autosensing Ethernet copper ports: GigabitEthernet 1/0/1 through GigabitEthernet 1/0/5. -
Page 31: Appendix B Leds
Appendix B LEDs LEDs Figure 15 LEDs (1) 100/1000Base-T autosensing Ethernet copper port status LEDs (yellow) (2) 100/1000Base-T autosensing Ethernet copper port status LEDs (green) (3) Power status LED (PWR) Table 10 LED description Mark Status Description Steady green The system is starting up. Flashing green slowly The system is operating correctly. -
Page 32: Index
Index A C D E G L S T Displaying the exception handling method,20 Displaying the memory usage of the device,19 Attaching the ring terminal to the grounding cable,6 Electrical safety,1 Cleanliness,2 EMI,3 Configuration procedure,20 prevention,3 Connecting the console cable,7 Connecting the grounding cable to the device,7 Cooling,3...
