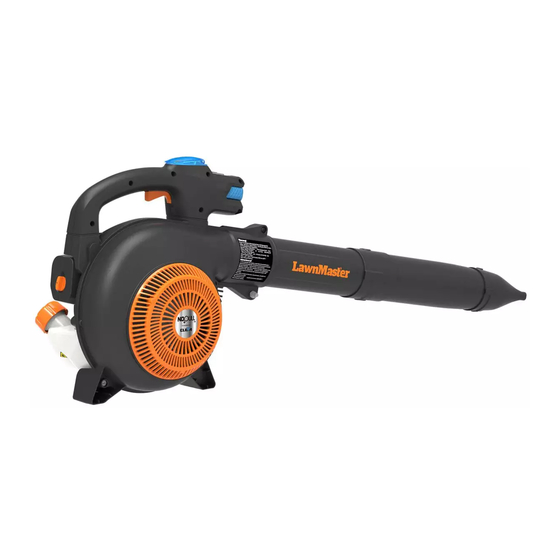

26cc no pull leaf blower
Hide thumbs Also See for NPTBL26A:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual / Manuel d'instructions
26cc NO PULL Leaf Blower NPTBL26A
Souffleur de feuilles 26 cc NO PULL NPTBL26A
Original Instructions / Manuel d'instructions original
Read all safety instructions carefully before assembling and operating
WARNING:
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
AVERTISSEMENT:
Veuillez lire attentivement l'intégralité des consignes de sécurité avant de
monter et d'utiliser cette machine. Assurez-vous que la machine a été montée correctement
et en toute sécurité. Conservez les consignes en lieu sûr et transmettez-les à tout utilisateur
ultérieur afin que celles-ci soient toujours disponibles.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPTBL26A and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster NPTBL26A

Summary of Contents for LawnMaster NPTBL26A

  • Page 1 Instruction Manual / Manuel d’instructions 26cc NO PULL Leaf Blower NPTBL26A Souffleur de feuilles 26 cc NO PULL NPTBL26A Original Instructions / Manuel d'instructions original Read all safety instructions carefully before assembling and operating WARNING: this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 3 ② ③ Fig.1 Fig.2 Fig.3 ⑦ ⑥ ⑤ ④ Fig.4 Fig.5 Ⅰ Ⅱ Fig.6 Fig.7 Fig.8 Fig.12 Fig.9 Fig.10 Fig.11 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-18 In the Box Assembly 20-21 Operation 22-27 Maintenance 28-32 Troubleshooting 33-34 Technical Data Recycling and Disposal Warranty...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear on the product and throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read the instruction manual and follow all warnings and safety instructions. The product complies with the applicable European directives and an evaluation method of conformity for these directives was followed.
  • Page 6 Recycle electrical waste products in an environmentally safe way where facilities exist. START Push to start. NPTBL26A 26cc no pull leaf blower with electric start. WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual.

  • Page 7: Safety Information

    SAFETY INFORMATION WARNING Read these instructions carefully before operating this tool. Make sure that you are familiar with the controls and know how to properly operate the machine. By following these instructions, you can reduce the risk of fire, electric shock and personal injury.
  • Page 8 SAFETY INFORMATION ■ Do not expose the machine to rain. ■ Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 15 m radius; outside the 15 m zone, there is still a risk of injury from thrown objects.
  • Page 9 SAFETY INFORMATION properly installed and securely fastened. Be sure accessories are properly attached and in the position recommended by the manufacturer. ■ Make sure that the blower is in good condition before operation; check the muffler, air intake and air filter before use. ■...
  • Page 10 SAFETY INFORMATION times when using the blower. Do not use the blower whilst on a ladder, roof, tree or other unstable support. Working from ladders or high places could result in severe injury. Do not overreach. ■ Keep the engine and muffler free of debris, leaves and excessive lubricant to reduce fire hazards.
  • Page 11 SAFETY INFORMATION ■ Before blowing, use rakes and brooms to loosen debris that may be packed down. ■ In dusty conditions, slightly dampen surfaces if possible. ■ Conserve water by using blowers instead of hoses for many lawn and garden applications, including clearing areas such as gutters, screens, patios, grills, porches, and gardens.
  • Page 12 SAFETY INFORMATION ■ Never operate the product with damaged guards or without the guards in place. ■ Be careful of the direction of blowing debris when work near walls, large rocks, vehicles and fences. Blow from the corner into the center of the work area. If not, debris may cause injury.
  • Page 13 SAFETY INFORMATION ■ Do not apply strong forces to the machine, such as throwing or dropping it, which will invalidate the warranty. ■ Always take your blower to a qualified service center for repair. Service performed by inexperienced or unqualified persons may damage the blower, create unsafe conditions, increase the risk of personal injury, and/or void your warranty.
  • Page 14 SAFETY INFORMATION ■ Avoid skin contact with petrol. ■ Do not eat or drink while you are refueling the product. If you have swallowed petrol or oil, or if petrol or oil has got into your eyes, then seek the advice of a doctor immediately.
  • Page 15 SAFETY INFORMATION Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
  • Page 16 SAFETY INFORMATION ■ When the battery pack is not in use, keep it away from other metal objects such as: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
  • Page 17 SAFETY INFORMATION ■ The plug of the charger must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce the risk of electric shock. ■ Allow a hot battery to cool before charging. ■...
  • Page 18 SAFETY INFORMATION ■ This machine should NEVER be used: - Intensively; - For professional use or agriculture; - For public gardens or forest maintenance; - In rainy weather or in a humid environment; - By children under 16 and unaccompanied minors.

  • Page 19: In The Box

    IN THE BOX 1. On/Off Switch 15. Start Button 2. Handle 16. Battery Indicator 3. Cruise Control Lever 17. Throttle Lever 4. Choke Lever 18. Start Button Cover 5. Primer Bulb 19. Engine Housing 6. Air Filter Cover 20. Air Filter Knob 7.

  • Page 20: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. ■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
  • Page 21 ASSEMBLY Installing and Removing the Battery Pack To install the battery pack: ■ Align the battery pack with the battery slot. ■ Insert the battery pack into the battery slot until the battery pack secures into place. Make sure the battery is inserted in the correct direction (Fig. 7). ■...

  • Page 22: Operation

    OPERATION Battery Pack Operation ® ■ Use only with 8.4V LawnMaster YLS0042A-E084045 battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this tool. ■ Check the power voltage! Battery chargers operate on 100-240V AC.
  • Page 23 OPERATION Handling the Fuel DANGER The fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. ■ Mix and store in a container approved for storing fuel. ■ DO NOT smoke when handling or close to fuel. ■...
  • Page 24 OPERATION Mixing Tips ■ Always start by filling the supplied fuel container with half of the required amount of petrol. ■ Then add the entire amount of 2-cycle lubricant. Close the container and shake to mix the lubricant with the petrol. ■...
  • Page 25 OPERATION Starting and Stopping the Blower WARNING Do not allow familiarity with products to make you careless. Remember that a careless fraction of WARNING Always wear eye protection with side shields, along with head protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
  • Page 26 OPERATION For warm start: ■ Make sure that the battery pack is securely in place. ■ Place the blower on a levelled surface, outdoors. ■ Press the primer bulb 5 times. ■ Make sure the choke lever in the RUN ( ) position.
  • Page 27 OPERATION Using the Blower WARNING Never run the blower without the blower tubes installed. Use of an improperly assembled blower could result in serious personal injury. WARNING Always hold the blower away from your body when operating, keeping clearance between your body and the product.

  • Page 28: Maintenance

    MAINTENANCE Normal maintenance, replacement or repair of emission control devices and systems may be performed by a qualified service center or qualified individual that uses CLEVA parts. Warranty repairs must be performed by a qualified service center; please contact your service dealer for assistance or Customer Service.
  • Page 29 MAINTENANCE Battery Maintenance ■ Store the battery pack fully charged. ■ Do not allow the battery pack to become completely discharged. ■ Once the battery pack is fully charged, disconnect the charger from the outlet and remove the battery from the charger. ■...
  • Page 30 MAINTENANCE ■ Replace the air filter cover ensuring the air filter is completely covered (Fig. 25). ■ Turn the air filter knob clockwise to secure the air filter cover. Fuel Tank Cap and Tank DANGER Fuel is EXTREMELY flammable. Be very cautious and use care when mixing storing or handling.
  • Page 31 MAINTENANCE Storage Clean the blower of any debris and store indoors in a dry, well-ventilated area that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Abide by local regulations for the safe storage and handling of petrol. Storing for 30 days or longer: Drain all the fuel from the tank into a container approved for storing petrol.
  • Page 32 MAINTENANCE THIS PRODUCT WAS MANUFACTURED WITH A CATALYST MUFFLER Congratulations! You have made an investment toward protecting the environment. In order to maintain this product’s original emission level, please refer to the maintenance section below. MAINTENANCE SCHEDULE Inspect For Replace Replace Damage Clean Every...

  • Page 33: Troubleshooting

    TROUBLESHOOTING If your blower does not appear to operate properly, follow the instructions below. If this does not solve the problem, please contact your local repair agent. For replacement parts, please visit www.cleva-europe.com. WARNING Before proceeding, shut off the engine, wait for all moving parts to stop, and remove the battery pack.
  • Page 34 TROUBLESHOOTING Incorrect lubricant/ Empty tank. Use fresh fuel and the correct 2-cycle fuel mixture. lubricant mix (40:1). Clean the air filter. Refer to Cleaning the Air Filter The air filter is dirty. section in this manual. The engine does not reach full speed and The spark plug is Clean or replace the spark plug.

  • Page 35: Technical Data

    TECHNICAL DATA PRODUCT SPECIFICATIONS Engine Size 2-Stroke / Full Crank Engine Displacement 25.4cm Engine Power / Speed 0.72kW / 7500min Engine Idle Speed 3000min Max. Engine Torque / Speed 0.9Nm / 6000min Max Air Speed 325km/h Max Air Volume 165L/S Fuel Tank Capacity 400cm Fuel / Oil Ratio...

  • Page 36: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.

  • Page 37: Warranty

    WARRANTY WARRANTY FOR THIS PRODUCT The manufacturer guarantees this machine, motor included, for 24 months from the date of purchase and on presentation of proof of purchase. Immediately after purchase, it is the customer’s responsibility to fully check the machine and read the instruction manual.
  • Page 38 ⑧ Fig.22 Fig.23 Fig.21 Fig.24 Fig.25 0.65 mm Fig.26 Fig.27 Fig.28 Fig.29...
