Name :

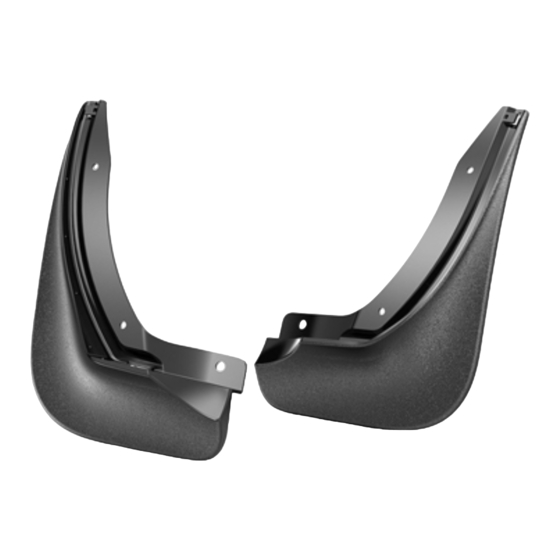

SPLASH GUARD/REAR KIT
Part No. :
J1010AJ004
J1010AJ014
Component parts
No.
Part name
①
Splash Guard R-RH
②
Splash Guard R-LH
③
Lid RH
④
Lid LH
⑤
J-Nut M5
⑥
Bolt M5×20mm
⑦
Washer
⑧
Push Rivet
⑨
Push Rivet

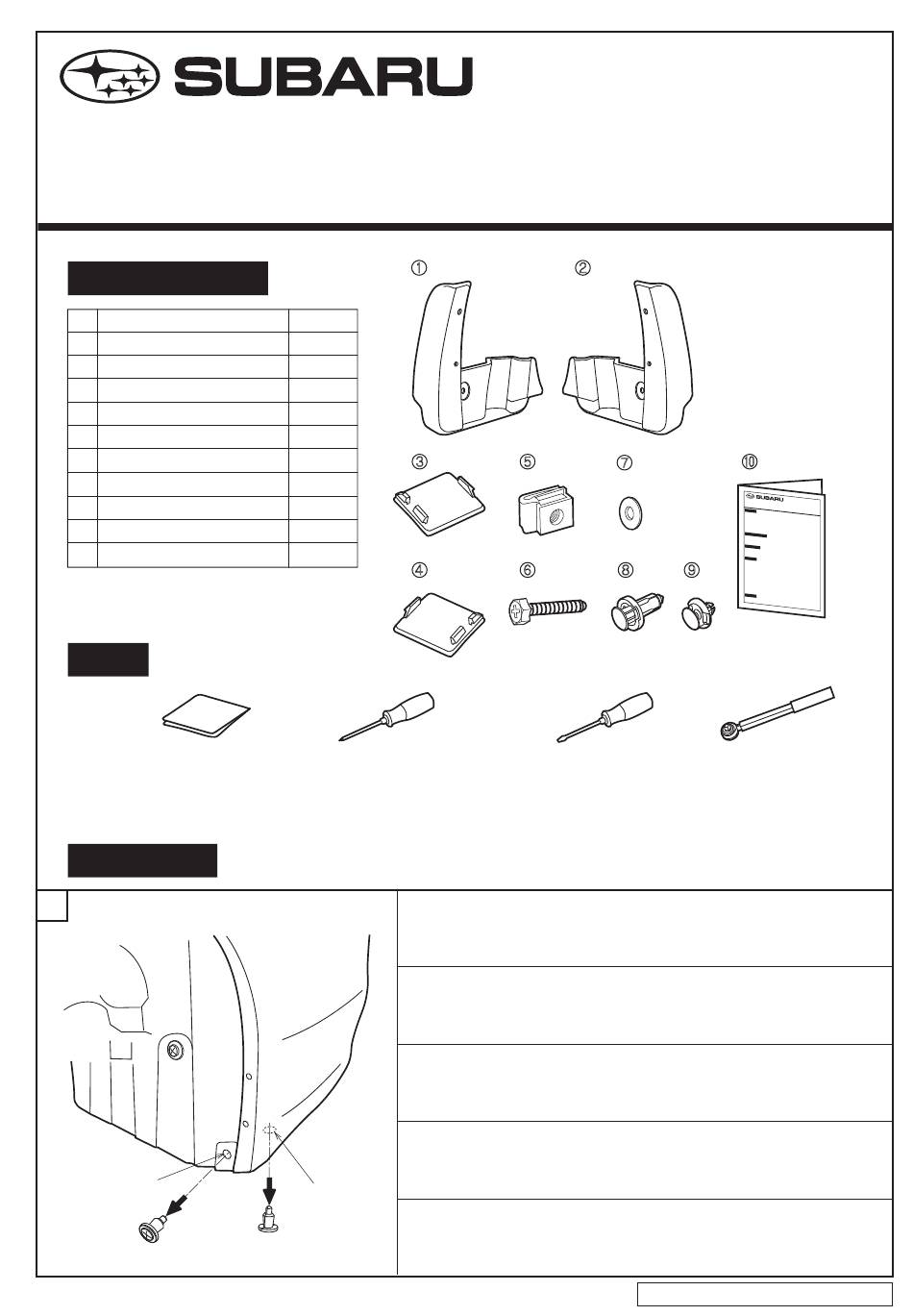

Installation Instruction
⑩
Tools
Clean shop towel
Chiffon d'atelier propre
Sauberer Lappen
Panno da officina pulito
Paño de taller limpio
Work outline
1
C
①
Quantity
1
1
1
1
4
4
③
4
2
2
1
④
Phillips screwdriver
Tournevis plus
Kreuzschlitz-Schraubendreher
Cacciavite a croce
Destornilladores de cabeza en cruz
Clean the splash guard installation surface.
Remove clips C and D.
Nettoyer la surface d'installation de la bavette garde-boue.
Déposer les circlips C et D.
Die Anbaufläche des Spitzblechs reinigen.
Die Klammern C und D entfernen.
Pulire la superficie di installazione del paraspruzzi.
Rimuovere i morsetti C e D
D
Limpie la superficie de instalación del protector contra salpicaduras.
Extraiga los retenedores C y D.
１
LEGACY
Installation manual
②
⑤
⑦
⑥
⑧
⑨
Flat blade screwdriver
Tournevis à lame
Schlitz-Schraubendreher
Cacciaviti a testapiaat
Destornillador de punta plana
Hardware Kit ： J1010AJ008
⑩
Torque wrench
Clé dynamométrique
Drehmomentschlüssel
Chiave torsiometrica
Llave dinamométrica
