Genuine Part Number ：
Applicable Vehicle Model ：
For Installation Operator
This manual describes how to install and handle the Shift Boot.
Before installation, please read this manual for proper installation.
After installation, be sure to hand this manual to the customer.
Precautions
！
1.For safety, stop the vehicle on a flat surface and turn off the engine and ensure that
the parking brake is applied before starting the installation process.
2.Since connectors have to be detached and attached during the installation process, make
sure to disconnect the power cord of battery (-) negative side before handling electrical components.
Follow the instructions of the latest service manual for the removal and installation of the (-)
negative side cord.
3.When installing this part, be careful enough not to scratch the vehicle or parts with tools.
4.Follow the instructions marked with in the "Installation Procedure" from the next
section onward.
Advice
The things that should be followed and useful to know for this product, are marked with
in this manual.
Advice
Component Part

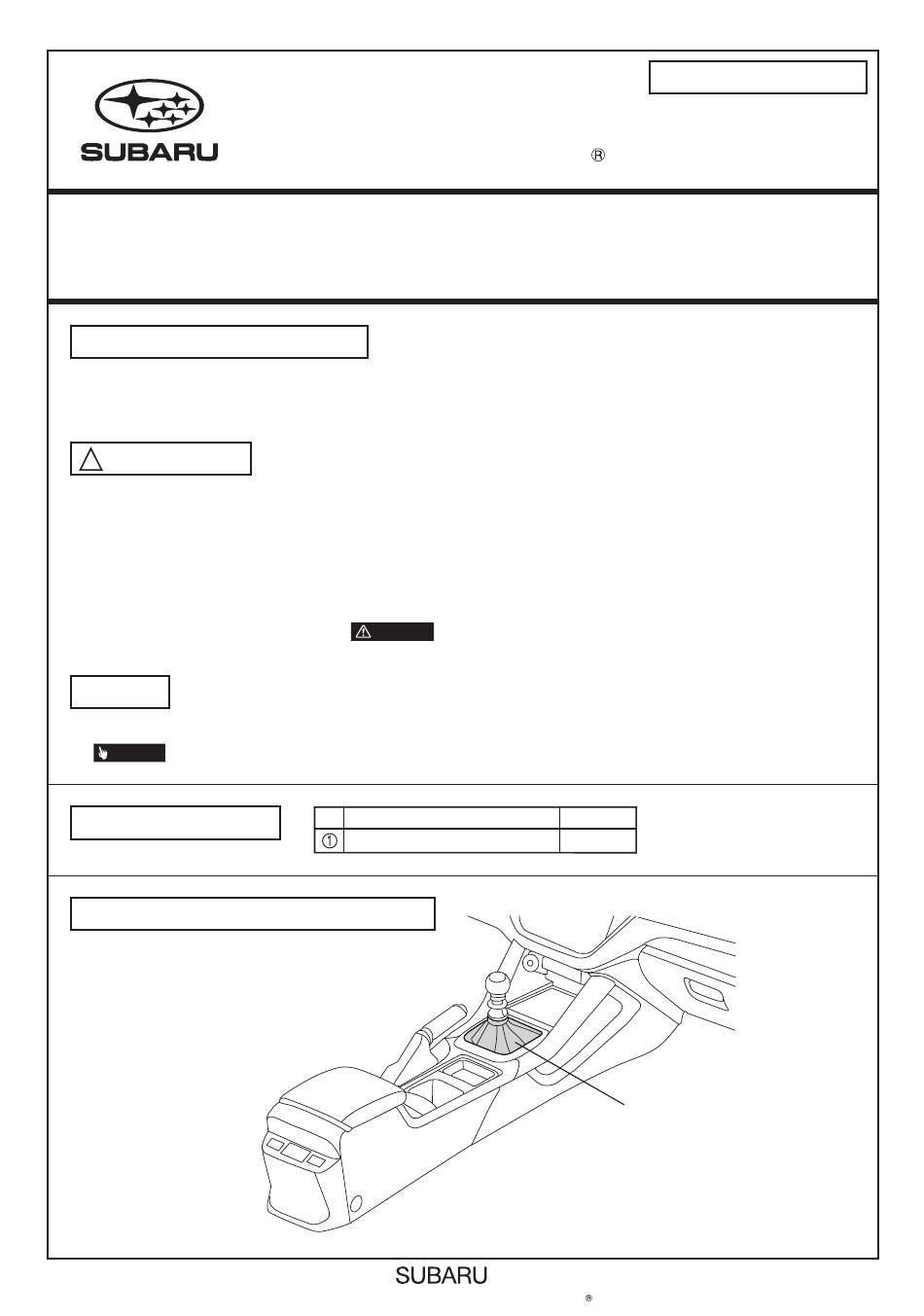

Installation completion drawing
Shift Boot （WRX RED）
（Ultrasuede ）
J1310VC624 Shift Boot （WRX RED）
WRX （2022MY〜）
Caution
No.
Part Name
Shift Boot
①
Manufacturer
１
Installation Manual
Qty
1
① Shift Boot
CORPORATION
Ultrasuede is a registered trademark of Toray Industries, Inc.
△00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Subaru Ultrasuede Shift Boot (WRX RED)
Summary of Contents for Subaru Ultrasuede Shift Boot (WRX RED)
- Page 1 △00 Installation Manual Shift Boot （WRX RED） （Ultrasuede ） Genuine Part Number ： J1310VC624 Shift Boot （WRX RED） Applicable Vehicle Model ： WRX （2022MY〜） For Installation Operator This manual describes how to install and handle the Shift Boot. Before installation, please read this manual for proper installation. After installation, be sure to hand this manual to the customer. Precautions ！ 1.For safety, stop the vehicle on a flat surface and turn off the engine and ensure that the parking brake is applied before starting the installation process. 2.Since connectors have to be detached and attached during the installation process, make sure to disconnect the power cord of battery (-) negative side before handling electrical components. Follow the instructions of the latest service manual for the removal and installation of the (-) negative side cord. 3.When installing this part, be careful enough not to scratch the vehicle or parts with tools. 4.Follow the instructions marked with in the "Installation Procedure" from the next Caution section onward. Advice The things that should be followed and useful to know for this product, are marked with in this manual. Advice Component Part Part Name Shift Boot ① Installation completion drawing ① Shift Boot CORPORATION Manufacturer Ultrasuede is a registered trademark of Toray Industries, Inc.
- Page 2 Installation procedure Caution ：Remove the ground terminal from the battery before handling electrical components. Reference：Set the shift lever to "N" position before disconnecting the negative terminal of the battery. Move the seat to the front most position before removing the negative terminal of the battery. Shift lever N position 1. Remove Tray ASSY Center Lower. Tray ASSY Center Lower （1） Remove the Shift Lever（Figure 1） （2） Remove the Tray ASSY Center Lower （Figure 2） （3） Remove the Mat from the Tray ASSY Center Lower（Figure 3） Caution When removing parts, be careful not to damage Shift Lever the joint portion. Advice Figure 1 Tray ASSY Center Lower is fixed at 8 places by clips. You can easily remove it by inserting your hand from the top of the boot to the front side (arrow portion), and hooking your hand on the part to pull it up. 2. The installation shall be completed by restoring the packaged Tray ASSY Center Lower in the reverse order of removal. Figure 2 Tray ASSY Center Lower Figure 3 ２...
- Page 3 Maintenance Method ■Maintenance of Ultrasuede Shift Boot ※ Regular cleaning about once a month is recommended. Wipe the entire Shift Boot with a clean cloth soaked in lukewarm water of about 40℃ and squeezed firmly. ※Ultrasuede is a registered trademark of Toray Industries, Inc. ● Cleaning of dirt If you spill the liquid, lightly apply tissue paper to absorb it. If the dirt cannot be removed, follow the procedure below. ① Lightly soak a cloth in a solution diluted with a neutral detergent to a concentration of 5% to 10%, and squeeze it tightly, then wipe the Shift Boot with the cloth by sliding from top to bottom while pressing the Shift Boot down. (See figure below). Wiping direction Wiping direction ② Lightly soak a soft cloth in lukewarm water of approx. 40℃, squeeze it tightly, and wipe the Shift Boot with the cloth by sliding from top to bottom while pressing the Shift Boot down. Rinse the cloth with lukewarm water and repeat this procedure 3 times to remove the mild detergent. Revision history △ Content Issue Date Newly Established 2022.3.25...
