Genuine Part Number ：
Applicable Model ：
Request
Please make sure to read this manual before installing the step guard to ensure proper
installation. If you do not follow the precautions, then the car may be damaged or the
product may peel off or tear, resulting in a serious accident.
Precautions for installation
1. Carry out the installation work in a large open area free from obstructions to ensure
safety.
2. Turn OFF the engine and securely apply the parking brake before carrying out the work.
3. Pooling of cleaning agent may deteriorate car parts. Soak a soft cloth with a cleaning
agent and carefully wipe the areas that need cleaning so as to prevent dripping, and
then wipe them with a dry cloth.
4. When the air temperature is 15 C or lower, use a hair dryer to warm up（to
approximately 30 to 50 C）the double-sided tape on the product and the car surface to
which the product is to be attached. Do not use an industrial dryer.
5. In order to pressure bond the double-sided tape, apply weight to the product （use the
palm of your hand to apply a force of 50 N or higher）.
6. Do not apply a load to the product for 24 hours after the installation.
7. When blowing air on the product after the installation, maintain a distance of at least
300 mm between the exhaust port of the blower and the product.
8. Reattaching the product reduces the adhesive strength of the tape. Carry out the work
with care to prevent the need for reattachment work. Do not reuse the product once it
has been peeled off.
Components
（Be sure to check the components before starting work）
Part Description
Ｎｏ．

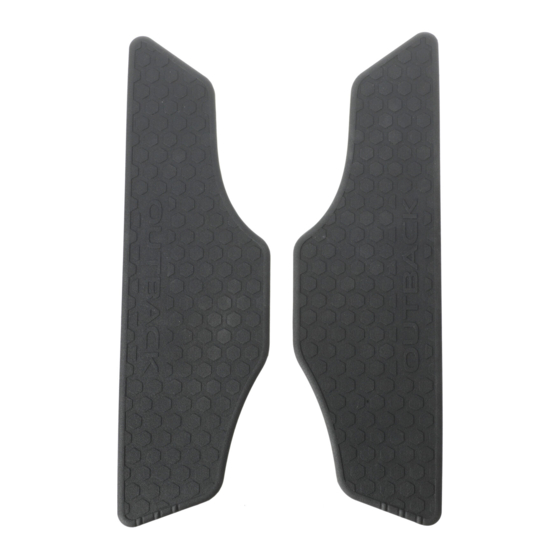

Step guard RH
①
Step guard LH
②
Tools
Soft lint-free cloth ／70% Isopropyl alcohol／Masking tape
Revised contents
△
Newly created document
00
REAR STEP GUARD
（REAR DOOR SILL STEP GUARD）
J1010AN400
OUTBACK （2020MY ～）
Quantity
①
1
1
Details of the work
Distributor
１
Installation Manual
②
Co., Ltd.
△00
date
2022/7/29
