Genuine Part Number:
Target Vehicles:
Component Parts
No.
Part Name
(1)
Garbage box(box and back panel)
(2)
Bracket
(3)
Garnish
(4)
Screw M5x20
(5)
B1 Screw M5x10
(6)
Sealer 13x110
Installation Instruction,and
(7)
Pattern Paper
Installation Tools
Electric drill (φ5.5),Cross head screwdriver,Marker,Scissors,Kevlar gloves,Cutter,Tape

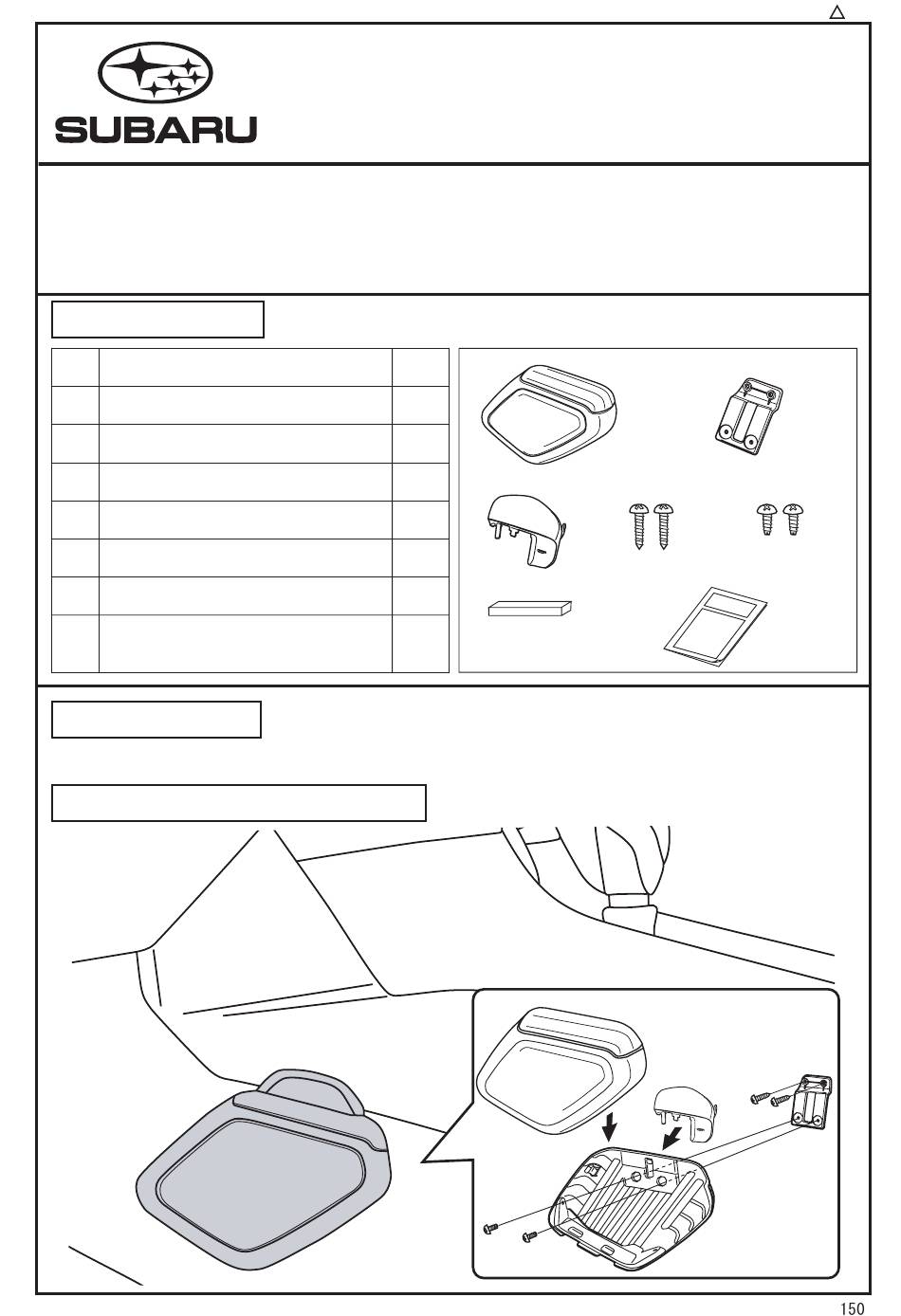

Installation Completion Drawing
GARBAGE BOX
J2010FL020
IMPREZA(from October 2016)
SUBARU XV(from April 2017)
FORESTER(from July 2018)
Quantity
1
1
1
2
2
1
1
(1)
(3)
(4)
(6)
Installation Manual
(2)
(5)
(7)
FJ-
00
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Subaru J2010FL020
Summary of Contents for Subaru J2010FL020
- Page 1 GARBAGE BOX Installation Manual Genuine Part Number: J2010FL020 Target Vehicles: IMPREZA(from October 2016) SUBARU XV(from April 2017) FORESTER(from July 2018) Component Parts Quantity Part Name Garbage box(box and back panel) Bracket Garnish Screw M5x20 B1 Screw M5x10 Sealer 13x110 Installation Instruction,and...
- Page 2 Pattern paper to the owner’s manual and installation manual, along the cut line.Use each corresponding pattern paper as follows: IMPREZA and SUBARU XV on page 5, and FORESTER on page 6. Side panel Maker (Mark x 2) 2. As shown in the illustration to the...
- Page 3 5. With the (1) box cover closed, slide the lock button down until it clicks to unlock. (1)Back panel (Fig. 4) 6. Open the (1) box. (Fig. 4) 7. Raise the box to remove it. (Fig. 4) Lock button Lock button 5.Unlock Fig.
- Page 4 12.P r e s s f i t t h e (1) b o x a g a i n s t t h e console, and lock it with the lock button. (Fig. 8) Lock Press fit Lock button Lock button (1)Box Fig.
- Page 5 Pattern paper for installation holes (for IMPREZA and SUBARU XV) Cut line...
- Page 6 hicle front Align this line with the edge of the side panel.
