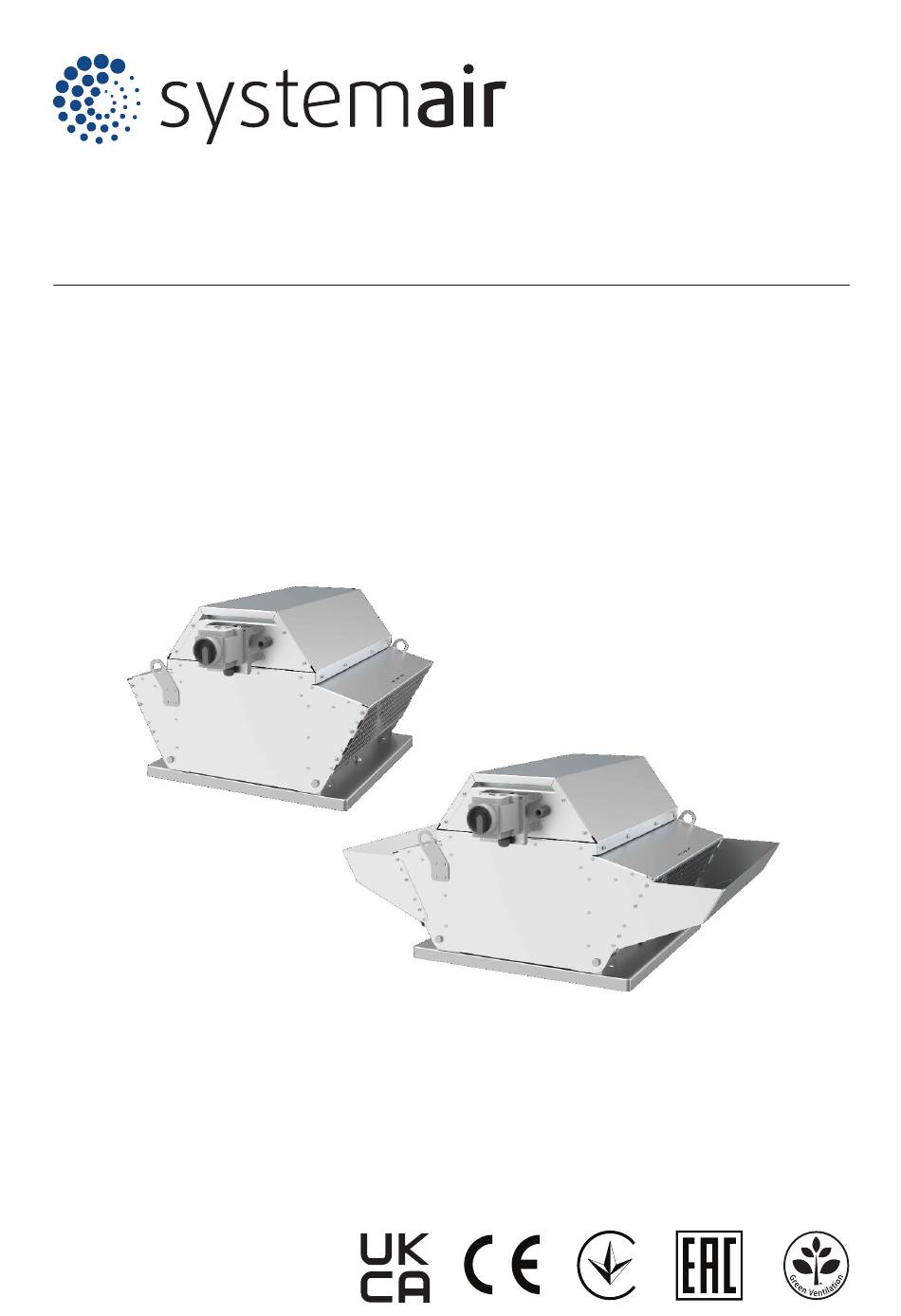

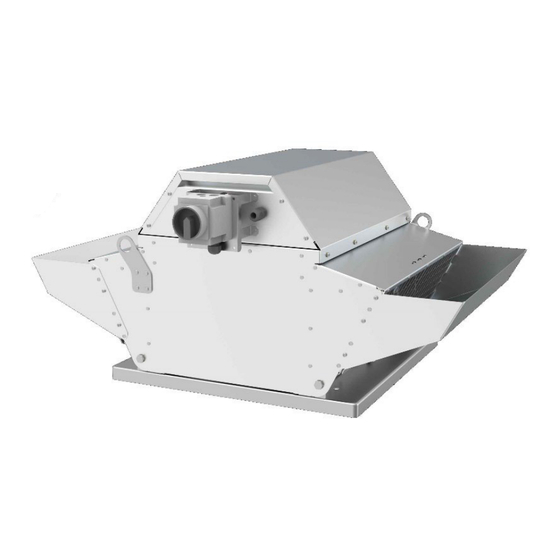

- Page 1 Installation, Operation and Maintenance instruction DVG EC F400 Roof fans...
-
Page 2: Table Of Contents
Table of content 1 Introduction ���������������������������������������������������������������������1 11 Disposal ������������������������������������������������������������������������12 1�1 Product description ������������������������������������������������������1 11�1 To disassemble and discard the parts of the product �12 1�2 Intended use ����������������������������������������������������������������1 12 Warranty �����������������������������������������������������������������������12 1�3 Document description ��������������������������������������������������1 1�4 Product overview����������������������������������������������������������1 13 Technical data ���������������������������������������������������������������13 1�5 Name plate �������������������������������������������������������������������2 13�1... -
Page 3: Introduction
95% air humidity� Ambient temperature -20 to done by approved personnel only� 70 °C� Speak to Systemair for more information on how to install the The product is intended for installation in outdoor product in different installation locations. environments on rooftops, connected to a duct system�... -
Page 4: Name Plate
3–phase, 400 V 3–phase, 400 V Item [m3/h] [kg] Made in Product liability Systemair is not liable for damages that the product causes in these conditions: 1� Manufacturer, product description 2� Type designation: Product name� Refer to 1�5�1 Type • The product is incorrectly installed, operated or designation page 2�... -
Page 5: Safety
• If the maintenance is not correctly and regularly done, there is risk of injury and damage to the product� • Only do the maintenance as given in this manual� Speak to Systemair technical support if other servicing is necessary� • Always use spare parts from Systemair�... -
Page 6: Transportation And Storage
– To decrease vibrations transmitted from the product to • Before you move the product to the installation location, the duct system, Systemair recommends to install examine the packaging for damages� flexible connections. • Do not move the product by the cables, terminal box, fan –... -
Page 7: 4�2 To Install The Product
To install the product 1� Systemair recomends to install the product together with roof curb� Put the supplied temperature resistant sealing tape on the contact surface between base plate and the roof� 4.2.1 To open a product with swing out casing, size 355-450 1�... - Page 8 To lock the service switch: drill a hole into the service Note: switch handle when it is in the “on-position” and install a padlock� Padlock is not supplied by systemair� If the fan is used for smoke extraction, use temperature resistant sealing tape, nuts, and washers�...
-
Page 9: Fire Mode
Warning instruction for the EC controller� The manual for the EC The installation of cables must ensure controller can be found systemair�com� uninterupted power supply in case of fire or extreme heat� Use cable protection made of temperature resistant material if Warning neccessary�... -
Page 10: Commissioning
To start a product with an EC higher rpm value than the maximum motor value that is given on the name plate� The commissioning report is found at www�systemair�com� 1� Make sure that the 0–10 V signal is set to “0” with the speed controller�... -
Page 11: Maintenance
• Do not clean the product with a high- Systemair support� pressure washer� • Always use spare parts from Systemair� • Do not clean the product with steel brushes or sharp objects� • When you send an order for spare parts, include the •... -
Page 12: Troubleshooting
Troubleshooting Note: If you cannot find a solution to your problem in this section, speak to Systemair technical support. Problem Cause Solution The fan impeller is not correctly Speak to Systemair technical support� balanced� There is dirt on the fan impeller� Clean the fan impeller carefully� Refer to 9�2 To clean the product page 9� The fan impeller has damages or Speak to Systemair technical support�... - Page 13 Problem Cause Solution The fan impeller does not turn in the Speak to Systemair technical support� correct direction� A phase loss occurred� If the motor is a 3-phase motor, make sure that no phase is missing� Overheated motor� Motor damage�...
-
Page 14: Disposal
For warranty claims, send a written maintenance plan and The product follows the WEEE directive� This symbol on the the commissioning report to Systemair� The warranty is only product or the packaging of the product shows that this applicable for these conditions: product is not domestic waste�... -
Page 15: Technical Data Overview
Technical data overview Refer to the name plate� Refer to 1�5 Name plate page 2 for more Electrical data information� Refer to the data sheet in the online catalogue at www�systemair�com� Other data 13.2 Product dimensions 13.2.1 Product dimensions for DVG-H Note: If the unit of measure is not specified, the dimensions are given in millimetres. -
Page 16: 13�2�2 Product Dimensions For Dvg
DVG-H 560 12XM8 1078 DVG-H 630 12XM8 1039 1072 DVG-H 800 16XM8 1050 1255 1280 13.2.2 Product dimensions for DVG-V ØA ØB ØC ØG ØH ØI ØJ DVG-V 355 6XM8 1003 DVG-V 450 6XM8 1261 DVG-V 560 12XM8 1540 DVG-V 630 12XM8 1039 1573... -
Page 17: Wiring Diagram For 1-Phase Fan
Wiring diagrams 14.1 Wiring diagram for 1–phase fan DVG-EC fans 230V (207...253V), 1 –phase A� RJ12 MODBUS Slave e�g� HTERM B� RJ12 MODBUS Slave e.g. PC-TOOL C� RJ12 MODBUS Master FUTURE USE D� Motor E� MODBUS F� Control signals G� Open collector H� Safety switch I�... -
Page 18: Wiring Diagram For 3-Phase Fan
14.2 Wiring diagram for 3–phase fan DVG-EC fans 400V (380...480V), 3–phase J� RJ12 MODBUS Slave e�g� HTERM K� RJ12 MODBUS Slave e.g. PC-TOOL L. RJ12 MODBUS Master FUTURE USE M� Motor N� MODBUS O� Control signals P� Open collector Q� Safety switch R� Relay modul (serially since September 2022) * Max 30VAC/24VDC/1A R1 Relay 1;... - Page 19 14.3 Wiring diagrams for speed controllers for EC motors MTP 10 MTP 10 MTP 10 3/Us +10V 0...10V MTP 20 MTP 20 MTP 20 1/Vdc+ +10V 4/Vout 0...10V 2/Vdc- 3/Vout- MTV- 1/10 MTV-1/10 MTV 1/010 1/IN Vac 230V AC 2/IN Vac +10V 4/Out+ 0...10V...
-
Page 20: Accessory Overview
1� FDG/F roof curb 6� VKG/F shutter 2� FDGE/F roof curb 7� ASFV flange 3� SSGE/F silencer 8� ASSG/F flexible connection 4� SSG/F silencer 9� ESDG inlet cone Note: For more information about accessories, refer to www�systemair�com or speak to Systemair technical support�... -
Page 21: Eu Declaration Of Conformity
EU Declaration of Conformity Manufacturer Systemair d�o�o� Špelina 2 Address SI-2000 Maribor Slovenia Product designation Roof fans Smoke and heat extract fans DVG-H/F400, DVG-V/F400, sizes 315, 355, 400, Type/Model 450, 500, 560, 630, 800 Identification Serial numbers dating from 2022 and onwards... - Page 22 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Original instructions 2022-06-29...
