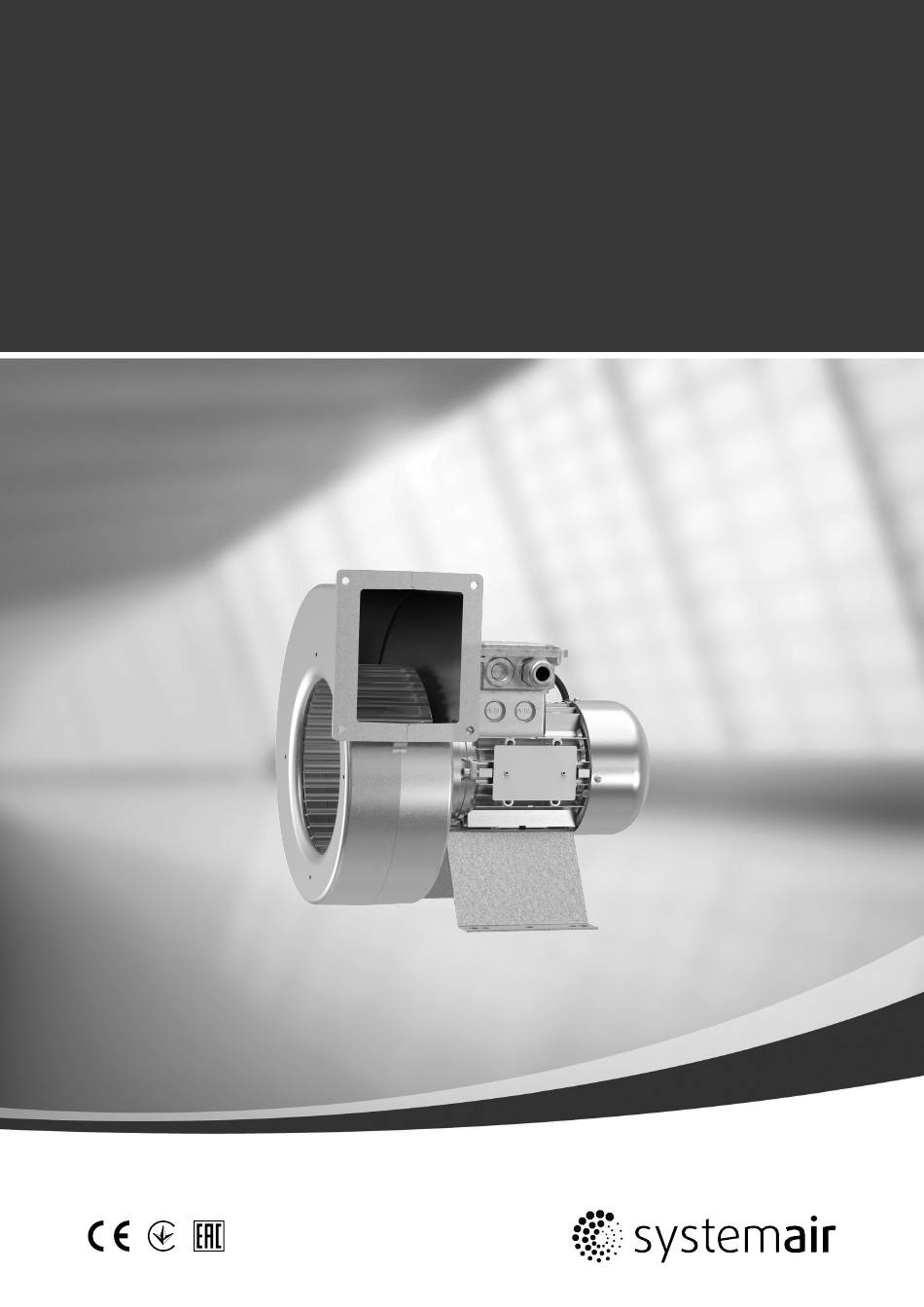

  • Page 1 Explosion proof fans EX 140A/180A — Presafe 16 ATEX 8598 X Operation and Maintenance Instructions Document in original language | 135371 · A007...
  • Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 135371 | A007...
  • Page 3: Table Of Contents

    Contents EU Declaration of conformity......1 Safety information...........2 Specific conditions of use (1-4) ....4 Transport and storage ........4 Technical data ..........5 Dimensions ...........5 Wiring..........6 Installation.............7 Installation example........8 Checklist ............9 Commissioning ..........9 Maintenance, service and repair ....... 10 Other............11 Name plates ........12 135371 | A007...
  • Page 5: Eu Declaration Of Conformity

    SE-739 30 Skinnskatteberg SWEDEN Office: +46 222 440 00 Fax: +46 222 440 99 www.systemair.com The manufacturer hereby declares that the following products: Centrifugal fans EX 140A/180A EU-type Examination Certificate (ATEX) Presafe 16 ATEX 8598 X DNV GL Nemko Presafe AS (2460)
  • Page 6: Safety Information

    EX 140A/180A are certified according to Directive 2014/34/EU (ATEX). Fan Category for fans is BV3 quality grade G6.3 according to ISO 14694. The motor rating plate (A, figure 1) shows data for the motor and does not apply for the com- plete fan.
  • Page 7: Safety Information

    Rated data Fan type Voltage/Frequency Isol. Weight Min. flow Max. flow min.—max. class 3,39 10,0 1270 230V(Δ) 3~ 50Hz Ex 140A-2 1550-2980 380-415V(Y) 3~ 50Hz 1,96 10,0 1270 Ex 140A-2C 220-240V 1~ 50Hz 3,85 1320-2960 10,7 1260 1,00 230V(Δ) 3~ 50Hz 800–1485...
  • Page 8: Specific Conditions Of Use (1-4)

    -20°C to +60°C 230V (Δ) AC 50Hz EX 140A-2 -20°C to +60°C 380-415V(Y) AC 50Hz 220-240 AC 50Hz EX 140A-4C, EX 180A-4C -20°C to +60°C 220-240V AC 60Hz 230V(Δ) AC 50Hz EX 140A-4, EX 180A-4 380-415V(Y) AC 50Hz -20°C to +60°C...
  • Page 9: Technical Data

    EX 140 ø6(4X) EX 180 ø7(4X) M4(4X) øF øG 23.5 øF øG Model EX 140A–4, EX 140A–4C EX 180A–4, EX 180 A-4C EX 140A-2, EX 140A-2C Model Weight, kg EX 140A–4, EX 140A–4C 191,5 6,3/6,7 EX 180A–4, EX 180 A-4C...
  • Page 10: Wiring

    | Technical data Wiring Ex 140A-2C,140A-4C, 180A-4C Ex 140A-2, 140A-4, 180A-4 V1 W1 220-240V 1 ~ 380-440V 3~ (Y) 230V 3~ (D) Sample motor protection Us = supply voltage H1 = fault indicator S1 = off switch F1-F4 = fuses...
  • Page 11: Installation

    Connection cable to the fan should be installed so that it is mechanically protected and suitable for use in the surround- ing environment. Connection cable for the EX 140A/180A should have a diameter of 6.5 to 12 mm and a cross section of 1.5-2.5 mm...
  • Page 12: Installation Example

    | Installation Installation example Fig. 3 Note: Installation example (figure 3) works only as a guide for installation where the dimensioning of suspension devices must be carried out by the installer and adapted to the prevailing conditions. Installation components mentioned in the text are accessories that can be provided and not part of the ATEX- certification.
  • Page 13: Checklist

    Checklist | Checklist Always read the safety instructions prior to commissioning. Before starting for the first time, ensure that: • The ambient temperature, humidity, dirt in the environment and the air’s corrosive properties have been taken into consideration. • The impeller do not hit parts of the fan housing. •...
  • Page 14: Maintenance, Service And Repair

    Always read the safety information before maintenance or service. Repair or replacement of components is not permitted on EX 140A/180A. For other questions about the fan, contact technical support. Cleaning interval should be in proportion to how fast the impeller and cooling fan becomes dirty. Dis- assembly of the impeller is not allowed.
  • Page 15: Other

    Required tightening torques M4=1,5 Nm, M5=2 Nm and M6=5 Nm. Cable glands=max. 5 Nm. Nuts in junction box at EX 140A/180A = 1,2 Nm. Should fans be on stock or put into operation after a long period, or if they have been exposed to condensation during an extended period, the motor winding insulation resistance must be measured before the fan is put into operation.
  • Page 16: Name Plates

    | Other Name plates 135371 | A007...
  • Page 17 Other | 135371 | A007...
  • Page 18 | Other 135371 | A007...
  • Page 19 135371 | A007...
  • Page 20 Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
