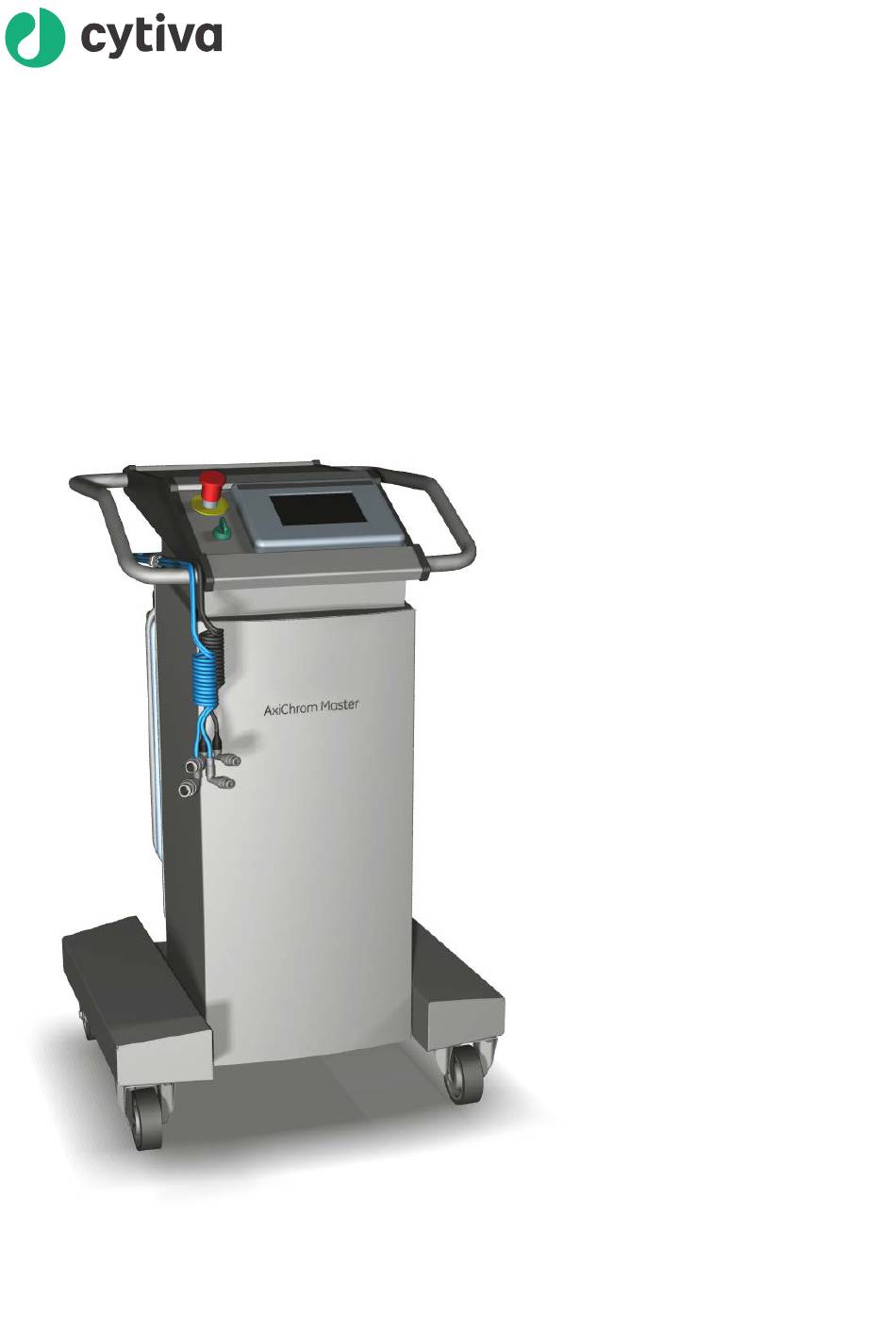

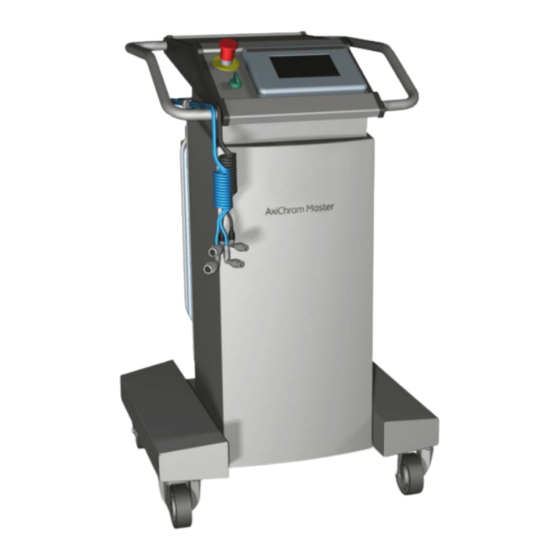

- Page 1 AxiChrom Master 300-1600 Unpacking Instructions cytiva.com...
-
Page 2: Table Of Contents
Table of Contents About this document ................3 Safety information ................5 Moving the transport crate ..............7 Unpacking the AxiChrom Master 300-1600 ........10 Moving the AxiChrom Master 300-1600 ..........15 Recycling information ................16 Reference information ................17... -
Page 3: About This Document
• how to unpack the AxiChrom Master 300-1600 from the crate • how to move the AxiChrom Master 300-1600 to its process location • how to dispose of the packaging material This document does not include information about: •... - Page 4 Notes and tips Note: A note is used to indicate information that is important for trouble-free and optimal use of the product. Tip: A tip contains useful information that can improve or optimize your procedures. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
-
Page 5: Safety Information
Be very careful to avoid any risk of injury, and especially squeezing or crushing injuries, when moving the product. WARNING Due to the significant weight of the AxiChrom Master 300-1600, suitable equipment with adequate lifting capacity must be used when moving the unit. - Page 6 • Protective glasses • Working gloves to protect against sharp edges • Protective footwear, preferably with steel toe-cap • Disposable gloves Always use clean disposable gloves when manually handling parts. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
-
Page 7: Moving The Transport Crate
Moving the transport crate Moving equipment The total weight of the AxiChrom Master 300-1600 and the transport crate is approximately 155 kg (for more information see Transport crate weights and dimensions, on page 17). Lifting equipment with a minimum capacity to safely lift the weight of the unit plus the transport crate is required to lift and move the unit in its transport crate, for example: •... - Page 8 The tips of the lifting forks must be well clear of the edge of the crate, so that the crate will not accidentally tip off from the forks during lifting and moving. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
- Page 9 The length of the lifting forks and the lifting capacity at the tips of the forks of the lifting equipment must allow lifting the weight of the crate and column without the risk of tipping off the forks. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
-
Page 10: Unpacking The Axichrom Master 300-1600
Tools required for unpacking The only tool required to unpack the AxiChrom Master 300-1600 is a flat-head screwdriver. The screwdriver is used as a lever to bend up the tabs that fasten the crate panels, as shown below. - Page 11 Procedure To unpack an AxiChrom Master 300-1600 from its crate: Step Action Use the screwdriver to lever up all of the fastening tabs around the lid of the crate. Lift and remove the lid of the crate. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
- Page 12 Step Action Locate the front of the AxiChrom Master 300-1600 and move around the crate to the front panel. Use the screwdriver to lever up the fastening tabs on each side of the front panel of the crate. Leave the fastening tabs at the bottom of the front panel fastened.
- Page 13 Remove the box from the inside of the crate. The box contains the electrical cables and communication cable for connecting up the AxiChrom Master 300-1600. Remove the packaging from the top of the Master and from in front of the bottom of the AxiChrom Master 300-1600. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
- Page 14 Carefully pull the AxiChrom Master 300-1600 forwards, until the rear of the Master slides free from the supporting packaging, and then roll the AxiChrom Master 300-1600 down the front panel of the crate and onto the floor. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB...
-
Page 15: Moving The Axichrom Master 300-1600
Moving the AxiChrom Master 300-1600 Procedure After the AxiChrom Master 300-1600 has been removed from the transport crate it can be moved by rolling on its own wheels. Lock wheels before use After positioning the unit at its designated location, lock the wheels, as illustrated below, before beginning to use the AxiChrom Master 300-1600. -
Page 16: Recycling Information
Recycle the empty packing crates and packaging materials in accordance with current local rules and regulations. CAUTION Packing crates may have been exposed to pesticides, depending on the regulations of the country of delivery. Recycle packing crates according to local recommendations for pesticide-treated wood. AxiChrom Master 300-1600 Unpacking Instructions 29110991 AB... -
Page 17: Reference Information
Reference information Introduction This section provides dimension and weight specifications that may serve as useful reference information when moving and installing the AxiChrom Master 300-1600. Master weights and dimensions Parameter Value Weight [kg] 90 (including cables connected to the Master) - Page 18 © 2020–2021 Cytiva All goods and services are sold subject to the terms and conditions of sale of the supplying company operating within the Cytiva business. A copy of those terms and conditions is available on request. Contact your local Cytiva representative for the most current information.
