R300 – Interface
2.0 Navman R300 interface
2.1 Button functions
There are two control buttons,
pressed separately or together to turn the unit on and off, cycle
through modes, and select mode options.
Throughout this guide the button icons are used as follows:
= press this button
= press this button
= press both buttons together
Note: where it is required to press and HOLD buttons, a countdown
begins. To perform the required action continue to hold until the
counter reaches zero; if you release the button sooner the action will
not be performed.

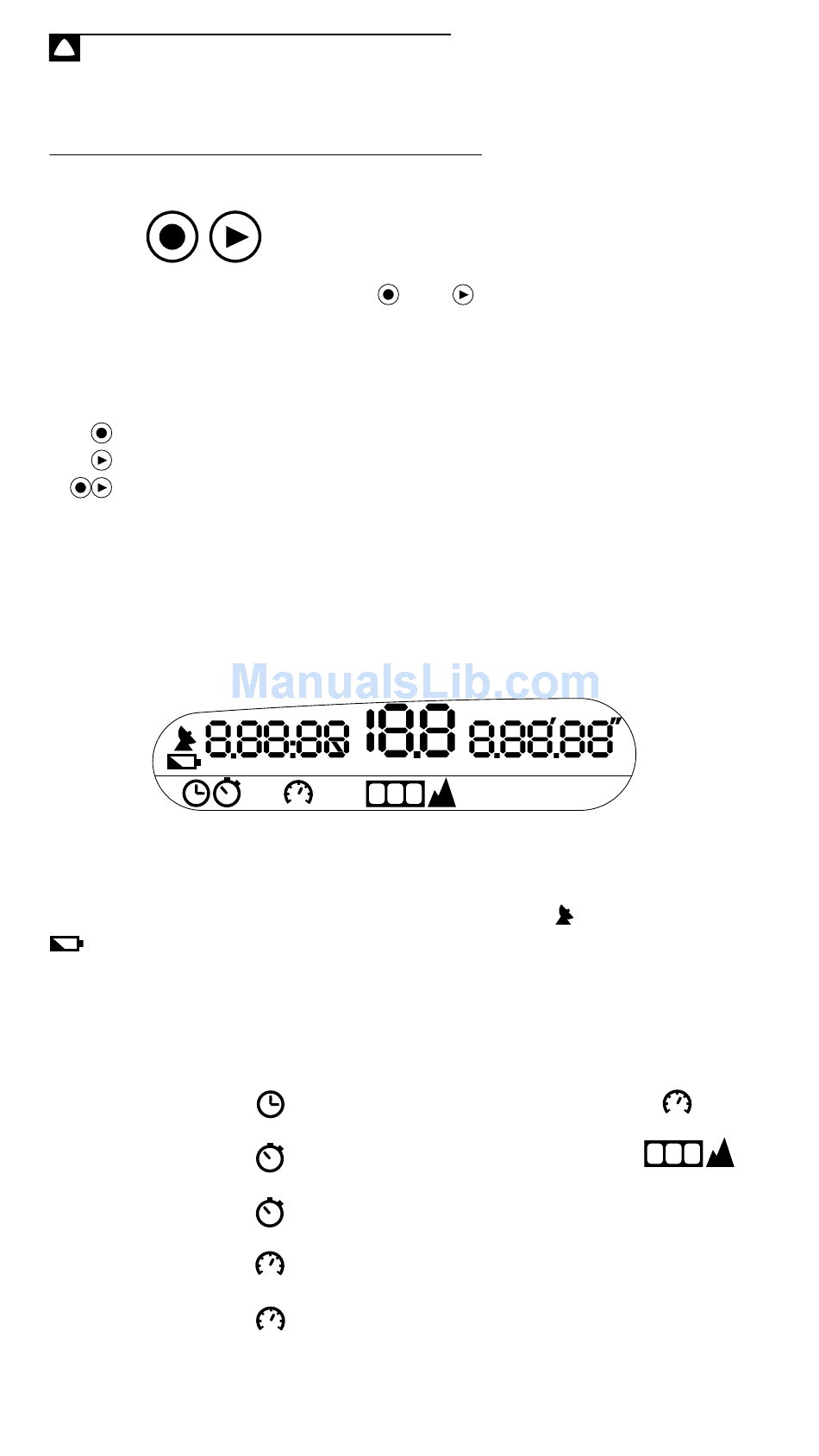

2.2 Display screen
The illustration above shows the complete display capability of the R300.
Only a sub-set of these elements appear at any time during operation.
The upper screen section displays the antenna
icons, as well as all values and units. The lower screen
section displays the mode icons and the setup icon (SYSTEM
SET).
Mode Icons
Clock
Timer
Timer recall
Speed
Speed (Average)
1-8
kmmi
km/hmph
PM
MAX
8 7
RCL
AVG
Speed (Maximum)
Odometer/Altitude
Calories
RCL
Zone settings
AVG
R300
and
. These buttons are
LAP
MIN
MAX
PACE
kJ
kcal
kglb
2
ZONE
Cal
3
SET
NAVMAN
mft
SYSTEM
SET
and battery
MAX
2
8 7
3
Cal
ZONE
SET
