SMA 800-TRL30NS Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-870-935-3291
If you should have a question or experience a problem with
your SMA Product: call the Toll free number above.
Our technical support representatives will be happy to
help you. In most cases a customer service rep. can
resolve the problem over the phone.
To obtain prompt, efficient service, always remember to give
the following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL

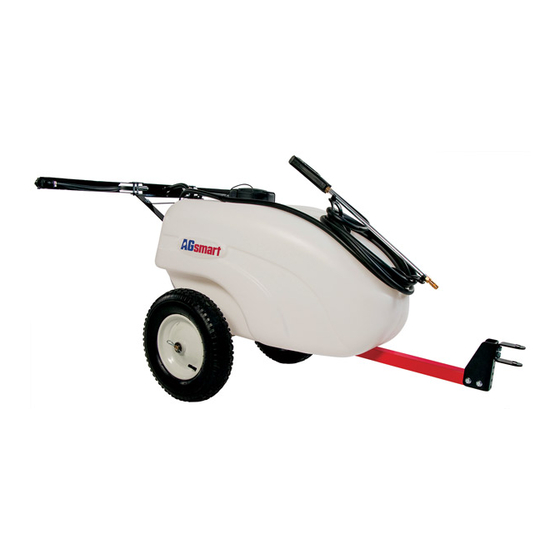

Model: 800-TRL30NS (5303055)
(20 Gallon Lawn & Garden Trailer Sprayer)
Technical Specifications

30 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI

15 Ft. Handgun Hose

25 Ft. max. vertical throw, 35 Ft. horizontal throw

Pressure Gauge (0-100 psi)

2-Nozzle Break-Away Boom Assembly
(80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI

Easy access drainage port (Complete Drain Out)

Front forward gun and hose wrap for easier
access from transport vehicle

Heavy Duty 12" tires

Streamlined tank design for compact storage and
shorter turning radius.
Caution: Always check vehicle load rating before using
the sprayer. The loaded weight of this sprayer and boom
assembly is approx.: 320 lbs. when the tank is full.
Assembly Instructions

Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3 & 4 to properly assemble the
sprayer.
#1 Walter Kratz Drive—Jonesboro, AR 72401
Phone: 870-935-3291 : Fax: 870-935-5651
[5195199
IMPORTANT:
This sprayer comes with
an On/Off (shut-off) valve
located at the inlet location
of the tank, towards the
underside. You must
make sure the valve is in
the "open" position before
using your sprayer.
(05/21)]
