Caution: Always check the vehicle load rating before
using this sprayer. Care must be taken not to tip the
vehicle over backwards, especially when starting or
accelerating.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
boom.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, call: TOLL FREE @ 1-870-935-3291
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

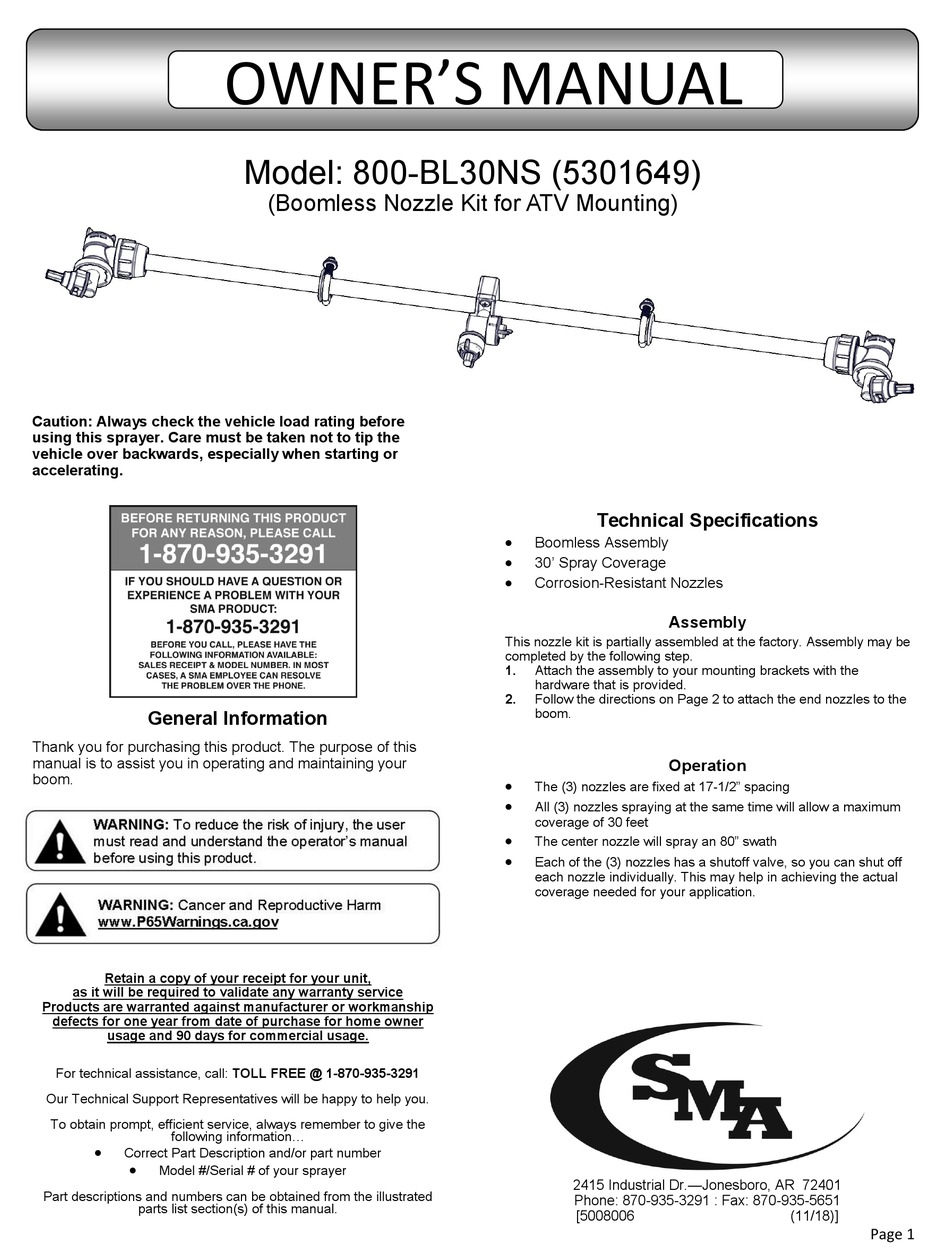

OWNER'S MANUAL
Model: 800-BL30NS (5301649)
(Boomless Nozzle Kit for ATV Mounting)
Technical Specifications

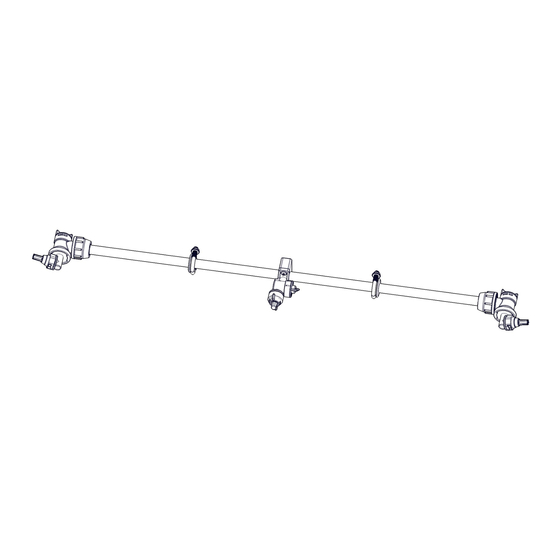

Boomless Assembly
30' Spray Coverage
Corrosion-Resistant Nozzles
Assembly
This nozzle kit is partially assembled at the factory. Assembly may be
completed by the following step.
1.
Attach the assembly to your mounting brackets with the
hardware that is provided.
2.
Follow the directions on Page 2 to attach the end nozzles to the
boom.
Operation
The (3) nozzles are fixed at 17-1/2" spacing
All (3) nozzles spraying at the same time will allow a maximum
coverage of 30 feet
The center nozzle will spray an 80" swath
Each of the (3) nozzles has a shutoff valve, so you can shut off
each nozzle individually. This may help in achieving the actual
coverage needed for your application.
2415 Industrial Dr.—Jonesboro, AR 72401
Phone: 870-935-3291 : Fax: 870-935-5651
[5008006
(11/18)]
Page 1
