INSTALLATION OF VMC1DS VIDEO DOOR STATION
1. If using the Door Release or Chime Activated CO use a Phillips head screw driver, remove the back plate
retaining screw at the top of the back plate. If not skip to step 5.
2. Attach the included three wire (Black, Blue & White) wire harness to the connector in the middle of the
unit (See Figure 8 & 8A).
3. Carefully drill a 3.5mm hole in the back plate and pull the three wires through from the inside.
4. Re-attach the back plate to the VMC1VDS.
5. Connect the CAT5 wiring to the screw down terminals as shown on the VMC1VDS Door Station
Terminations chart. If unit is to be directly exposed to inclement weather conditions, the installation of the
VDSWS-T Weather Shield is strongly recommended. Be sure to feed the CAT5 wires through the back of
the VDSWS-T prior to connecting to the VMC1VDS screw down terminals.
6. Remove the metal front cover of the VMC1VS, using the included tool, by removing the hex screw at the
bottom of the unit.
7. Mount the VMC1DS (and DVSWS-T if appropriate) onto the wall in the selected location. Do not securely
attach the unit as it may be necessary to remove the back plate to adjust volume, ring tone and CO
operation when the entire VMC1 Security Video Intercom system is configured and tested.
12

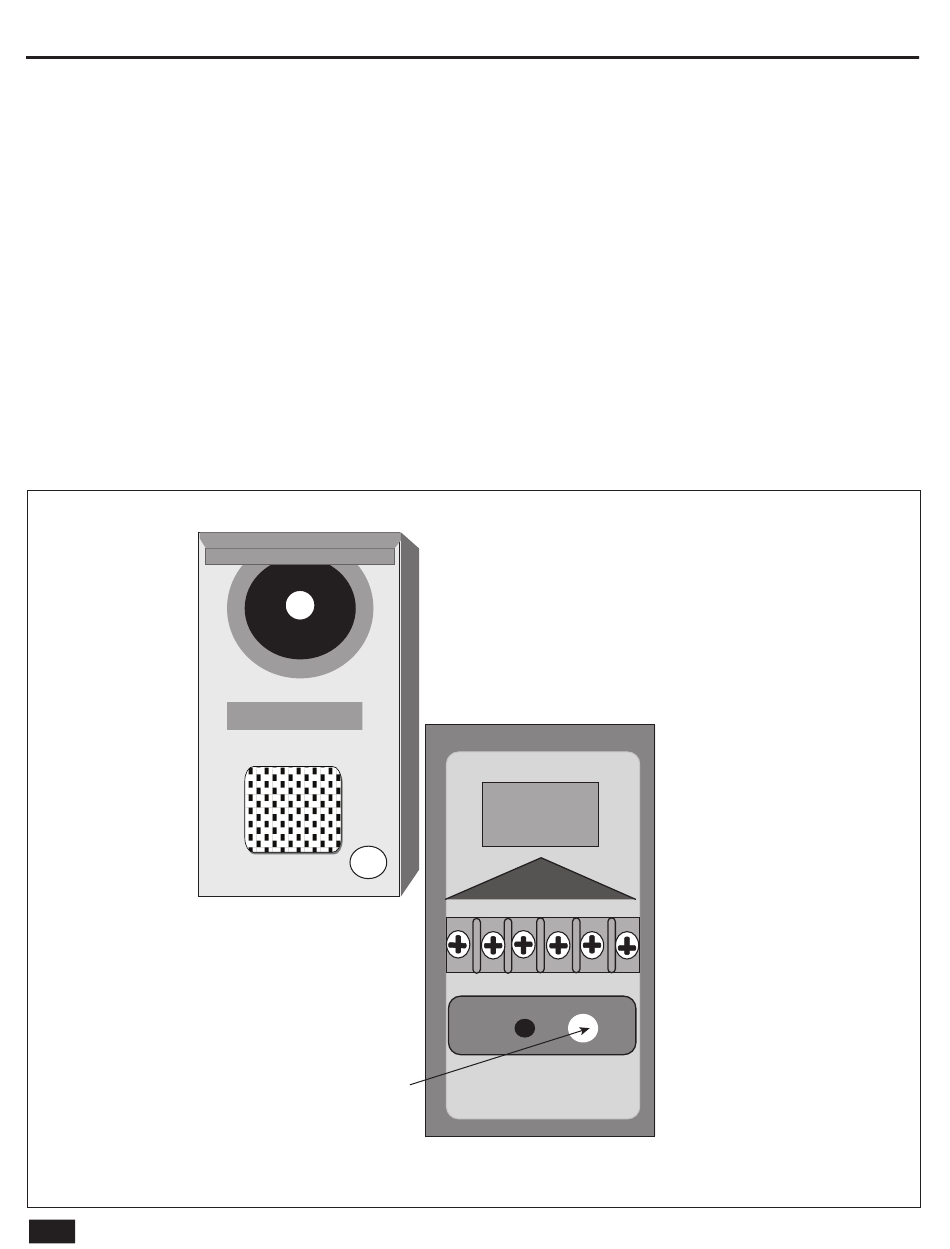

Front View
VMC1VDS Door Station
Camera
Drill 3.5mm hole here
Figure 8
POS NEG TC VLC Com1 Com2
Interior Back Cover VMC1VDS
Door Station Camera
