6159932861-01
English
1 / 24

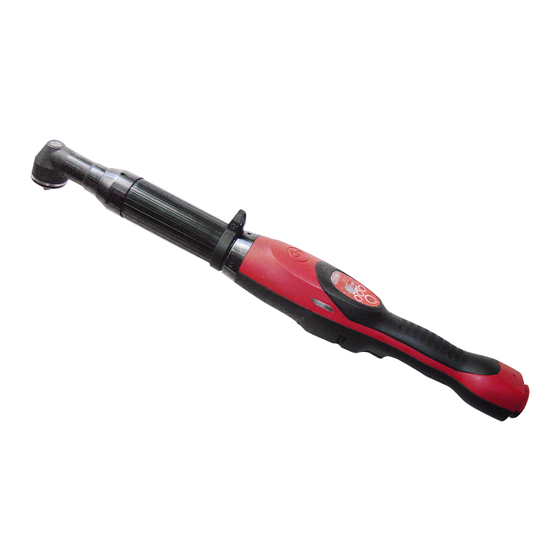

EAP-TFlex tools
Operator's Manual
N° 6159932861-01
© Copyright 2007, CP
All rights reserved. Any unauthorized use or copying of the
©
contents or part thereof is prohibited. This applies in particular to
trademarks, model denominations, part numbers and drawings.
Use only authorized parts. Any damage or malfunction caused
by the use of unauthorised parts is not covered by Warranty or
Product Liability.
CP Georges Renault - ZAC de la Lorie
38 Rue Bobby Sands - BP 10273
44818 Saint-Herblain Cedex - France
Advertisement
Table of Contents
Related Manuals for Desoutter EAP-TFlex
Summary of Contents for Desoutter EAP-TFlex
- Page 1 6159932861-01 English 1 / 24 EAP-TFlex tools Operator's Manual N° 6159932861-01 © Copyright 2007, CP All rights reserved. Any unauthorized use or copying of the © contents or part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings.
-
Page 2: Table Of Contents
6159932861-01 TABLE OF CONTENTS English 2 / 24 CHAPTER 1 - SAFETY INSTRUCTIONS 1 - SCOPE ..............................3 2 - GENERAL INSTRUCTIONS ......................3 3 - PERSONAL SAFETY .........................3 3.1 - Earthing connection ........................3 3.2 - Differential circuit-breaker ......................3 3.3 - Power supply ..........................3 4 - TOOL USE HAZARDS ........................3 5 - TOOL CARE AND SERVICE ......................3 CHAPTER 2 - DESCRIPTION AND OPERATION... -
Page 3: Chapter 1 - Safety Instructions
6159932861-01 CHAPTER 1 - SAFETY INSTRUCTIONS English 3 / 24 1 - SCOPE This tool has been designed to assemble and disassemble screws in wood, metal and plastic materials. No other use will be permitted. For professional use only. 2 - GENERAL INSTRUCTIONS To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand the safety instructions before performing any such task. -
Page 4: Chapter 2 - Description And Operation
4 / 24 The EAP-TFlex tool is an electric fastening tool directly supplied by mains. It is fitted with a torque transducer for high-precision torque control. The main regulation parameter is the torque, which can be changed using the display and the 3 programming keys. -
Page 5: Operating Temperature
6159932861-01 DESCRIPTION AND OPERATION English 5 / 24 Ø47 Ø53 Ø68 Ø46 ØB (1.85") (2.08") (2.68") (1.81") 3/8" ØA Models Torque Maximum speed Output Weight (Nm) (rpm) min max 115VAC 230VAC mm " " " " EAP2-30-* 1016 28 1.103 27 1.064 45.5 1.793 559.5 22.044 Ø... -
Page 6: Operator Interface
6159932861-01 DESCRIPTION AND OPERATION English 6 / 24 4.2 - Operator interface Description Function Description Function Modifying the direction of rotation. In the control mode, showing that the When tightening direction Data Recording mode is activated. Result recording enabled, the lights are off. When the run In the Advanced Programming mode, Direction of reverse direction is enabled, the red and... -
Page 7: Chapter 3 - Start-Up
6159932861-01 CHAPTER 3 - START-UP English 7 / 24 1 - ON RECEIVING THE TOOL Check that the following items are included in the kit supplied with the tool: • the certificate of conformity, • the safety instructions, • the CDROM, •... -
Page 8: Chapter 4 - Programming
6159932861-01 CHAPTER 4 - PROGRAMMING English 8 / 24 There are 2 ways to program the tool: the Easy Programming mode and the Advanced Programming mode. The Easy Programming mode allows to change the torque. In the Advanced Programming mode, all parameters can be changed: the torque preset, the result recording selector, the joint stiffness, the access code and the unit. - Page 9 6159932861-01 PROGRAMMING English 9 / 24 Action (continued) Display / Result (continued) "Nm" is displayed by default. Other possible units are "FtLb" or "InLb". Press to reach the next menu item. 6th menu item - Calibration (5 measures) "CAL" is displayed. "C" LED lights ON. Press to reach the next menu item.
-
Page 10: Torque Preset (Max. 5 Torques)
6159932861-01 PROGRAMMING English 10 / 24 2.1 - Torque Preset (max. 5 torques) Up to five torques can be preset, changed and/or activated in the first menu item: Action Display / Result 1st menu item - Torque Preset (max. 5 torques): "Toff"... -
Page 11: Data Recording
6159932861-01 PROGRAMMING English 11 / 24 2.2 - Data Recording The recording of the tightening data can be activated/inactivated in the second menu item: Action Display / Result 2nd menu item - Data Recording: "Roff" is displayed (data recording off, by default). The "REC"... -
Page 12: Access Code Activation
6159932861-01 PROGRAMMING English 12 / 24 2.4 - Access Code Activation The Access Code can be activated in the fourth menu item:: Action Display / Result 4th menu item - Access Code Activation: "---0" is displayed. The "Access Code" LED lights ON. Press to enter Access Code Activation mode. -
Page 13: Calibration
6159932861-01 PROGRAMMING English 13 / 24 2.6 - Calibration Five torque measures are used to calibrate the tool in the sixth menu item: Action Display / Result 6th menu item - Calibration (5 torque measures): "CAL" is displayed. The "C" LED lights ON. Press to start the Calibration. -
Page 14: Chapter 5 - Tightening Results
1 - REPORT LEDS The operator is informed at a glance of the tightening results through report LEDs (green, yellow and red). EAP-TFlex tool - Torque control Torque Disassembly limit Yellow + Red Max. -
Page 15: Buzzer
6159932861-01 TIGHTENING RESULTS English 15 / 24 2 - BUZZER At the end of each tightening, a sound informs the operator of the tightening result: • 1 beep -> tightening correct • 2 beeps -> tightening not correct or faulty operation 3 - DISPLAY At the end of each tightening, the tightening result and the torque value are displayed, alternatively. -
Page 16: Chapter 6 - Maintenance
6159932861-01 CHAPTER 6 - MAINTENANCE English 16 / 24 1 - MAINTENANCE LED The tool is fitted with a maintenance LED that lights as soon as the tool has performed a pro- grammed number of cycles. This means that it is time to perform maintenance operation. The number of cycles is set to 500,000. -
Page 17: Appendix 1 - Error Table
6159932861-01 APPENDIX 1 - ERROR TABLE English 17 / 24 Error Description Checking/Actions Torque low The torque reached is lower than the torque minimum tolerance. The tool stopping too soon could be due to the operator releasing the throttle too soon (yellow report) or to the "Max. - Page 18 6159932861-01 ERROR TABLE English 18 / 24 Error Description Checking/Actions E302 communication with The tool does not work. The Bluetooth module is faulty, contact our Bluetooth module. customer service. E404 Exceeding of the current threshold The power programmed is too large for the tool. For instance you can forced in the power bus.
- Page 19 6159932861-01 ERROR TABLE English 19 / 24 Error Description Checking/Actions E515 Writing error of ACCESS CODE parameter E516 Writing error of CYCLE parameter E517 Writing error of SEQUENCE parameter E519 Writing error of the error table E521 Writing error of the cycle manually set up E524 Software version E525...
-
Page 20: Appendix 2 - Parts List
6159932861-01 APPENDIX 2 - PARTS LIST English 20 / 24 LOCTITE 243 LOCTITE 243 LOCTITE 222 LOCTITE 243 10 mm 20 Nm 60 mm 60 Nm 10 mm 0.7 Nm 60 mm 60 Nm KLUBER Centroflex CX 4/375 AU 2.5 Nm LOCTITE 243 2.7 g 10 mm... - Page 21 6159932861-01 PARTS LIST English 21 / 24 Kit No 5 Kit No 1 Reference Tool Reference Tool 6153968275 6159187995 Kit No 6 Reference Tool 6153965015 Kit No 2 Reference Tool 6153968285 Kit No 7 Reference Tool 6153964465 EAP*2 6153967165 EAP*1 Kit No 3 Reference Tool...
- Page 22 6159932861-01 PARTS LIST English 22 / 24 Kit No 9 Kit No 14 Reference Tool Reference Tool 6153965085 EAP2-30-* 6155705055 6153965095 EAP2-65-* Kit No 15 Reference Tool Kit No 10 6156731240 Reference Tool 6153967075 Kit No 16 Reference Tool 6153966075 EAP2-30-* 6153966095 EAP2-65-*...
- Page 23 6159932861-01 PARTS LIST English 23 / 24 Kit No 18 Kit No 23 Reference Tool Reference Tool 6155210995 EAP2-30-* 6153965620 6155210975 EAP2-65-* Kit No 24 Kit No 19 Reference Tool Reference Tool 6153964475 6153967035 Kit No 21 Reference Tool 6159174740 Kit No 22 Reference Tool...
- Page 24 www.cp.com 6159932861-01...
