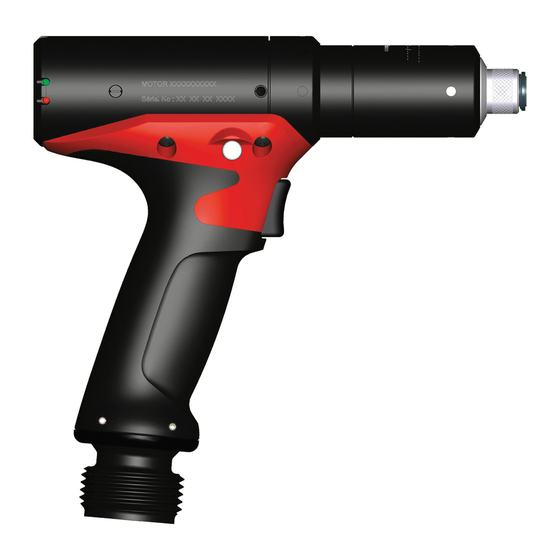

Desoutter ERP20S Technical Manual

Original instructions.
© Copyright 2019, Ets Georges Renault 44818
St Herblain, FR
All rights reserved. Any unauthorized use
or copying of the contents or part thereof
is prohibited. This applies in particular to
trademarks, model denominations, part numbers
and drawings. Use only authorized parts. Any
damage or malfunction caused by the use of
unauthorised parts is not covered by Warranty or
Product Liability.
WARNING: before operating the
tool, read carefully the following
instructions and the Safety Guide
instructions.
- To avoid damaging the tool during
disassembly, use the recommended
tools.
- When disassembling the handle, be
careful not to pull on the electric wires
which are connected to the motor.
- Any repair on the motor shall be carried
out in our workshops.
Meaning of the pictograms
Left hand thread
When reassembling, apply the
recommended glue.
When reassembling, tighten to the
required torque.
When reassembling, lubricate with the
required grease.
Specific tools
Description ERP20S
Spanner wrench 6158020110
Circlip plier 6158020120
48mm box-end wrench 6159605380
Gear ring nut extractor 6159609130 + 6159609150
Spare subassemblies
Description ERP20S
Reduction gear 6153962740
Motor 6153941820
Handle 6153900480
Output shaft 6153962680

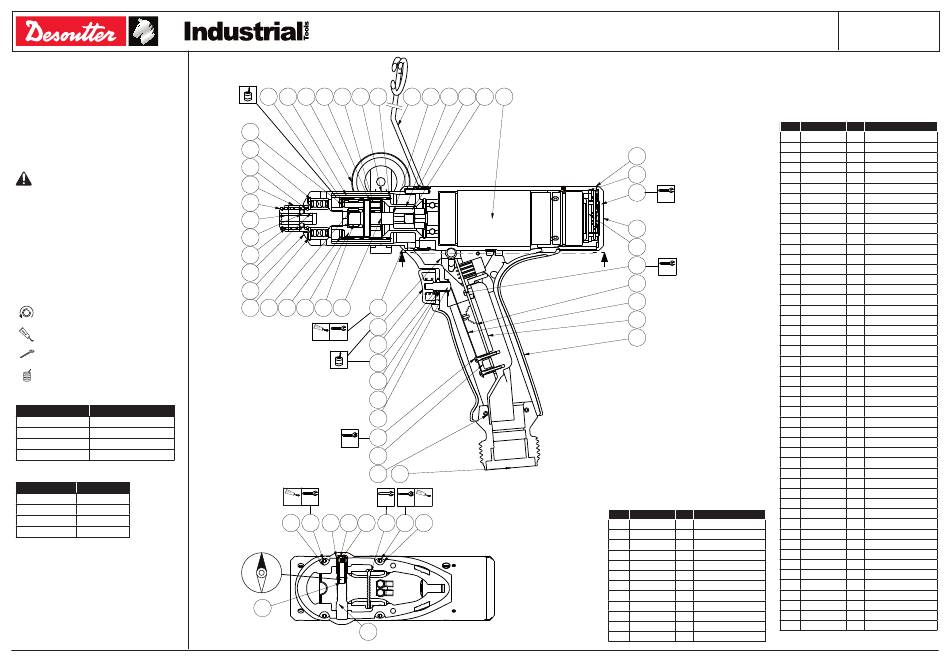

TECHNICAL MANUAL
ERP20S N° 6151651970
ref. 6159901510
9 2 61 10 11 17 3 52
GRAISSE
5
22
24
26
29
20
25
27
B
21
23
28 7 4 6 8 13 19
36
30mm³ 20Nm
35
LOCTITE 243
33
GRAISSE
ref. 6159901510
31
34
32
44
0.45Nm
42
38 37
LOCTITE 222
LOCTITE 222
B-B
3Nm 0.45Nm 3Nm
2mm
3
51 54 49 48 50 45 55
N
47
46
12 15 18 14 1
2mm 3
53
ERP20S
Item
13
14
57
15
17
60
18
19
59
20
1.2Nm
21
22
58 23
24
56
25
26
B
41
27
0.45Nm
28
40
29
30
43
31
39
32
33
30
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Item Part number Qty Description
1 6153941820 1 Electric motor 52
2 6153962870 1 Gear box assembly 53
54
3 6154760810 1 Gear ring
55
4 6156870310 1 Internal circlip
56
5 6156420720 1 Washer
57
6 6154751910 1 Planet cage
7 6154701170 6 Planet 58
8 6157901280 78 Needle 59
60
9 6157901270 3 Needle
61
10 6154751970 1 Planet carrier
-
11 6157901330 3 Needle
12 6155801430 1 Solar
Part no. 6159936010_09
Series -
Date 07/2019
Page 1 / 3
Part number Qty Description
6156420730 1 Washer
6155751100 1 Coupling
6155704700 1 Transducer
6155652070 1 Gear housing
6157900480 3 Needle
6156731190 1 Output shaft
6153962680 1 Output assembly
6155210950 1 Coupling nut
6157581040 1 Bearing
6155020690 1 Flange
6156890090 2 Ring spring
6157700110 2 Ball ø3
6156610680 1 Locking ring
6156810060 1 Spring
6156870200 1 Internal circlip
6156420410 1 Washer
6153031100 1 Handle
6155953020 1 Reaction bearing
6156880340 1 External circlip
6153110160 1 Trigger axis
6156901050 1 Spring
6153100430 1 Trigger
6156850200 1 Spring rod
6155953040 1 Isolating holder
6156371590 2 Pin
6155953030 1 Card support
6159187820 1 Motor PCB
6156100760 2 Screw
6155953050 1 Spacer
6156850190 1 Spring
6156100740 2 Screw
6156100750 1 Screw
6155440040 1 Reverse
6155953000 1 Magnet
6155953170 1 Spacer
6156721480 1 Plug
6156190350 1 Screw
6155953060 2 Spacer
467003 1 Bail hook
6155953080 2 Spacer
6156100780 2 Screw
6156100770 2 Screw
6155670690 1 Transducer bride
6159191145 1 LED PCB
6156700390 1 Plug
6156180160 4 Screw
6156890490 1 Ring internal spring
467033 1 Side handle assembly
6159930690 1 Safety instructions
