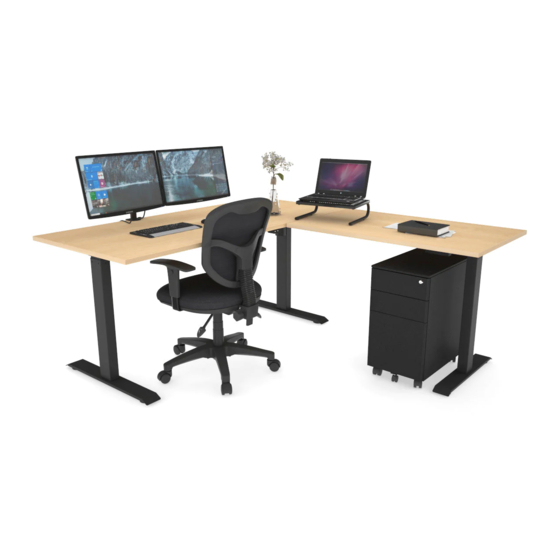

Summary of Contents for Jason.L Just Right Corner Desk
- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Just Right Need help! Call us on Corner Desk 1300 527 665 Tools Required: Power screwdriver 2 persons required for installation Page 1 of 4...
- Page 2 Installation Instruction Technical data Column Number Maximum Load 100KG Max Speed 25mm/s Input Voltage 100-240V Lowest Position 710mm Highest Position 1210mm 1020- 1600mm Width Range 1075- 1575mm 10%( Pause 18 minutes for each Duty Cycle continuous 2-minute operation ) Applicable Temperature 0~40°C Accessory List STEP1...
- Page 3 STEP4 STEP3 Install Transmission Rod Install Supporting Plates 2.5x2.5 5 x 5 Connect the long supporting plate (9) to the columns (1) (3), connect the short supporting plate(10) to the column(2). fix them with the screw (C) and tighten the screw by 5X5 allen key(A).
- Page 4 STEP7 Install Baffle Attention Common fault treatment The following tips will help you detected and eliminate the common 1. Power supply: AC100V- 240V,50/60Hz fault and error. If the error you meet is not on the list, please contact 2. Service Environment: 0-40℃ our customer service.
