ASSEMBLY INSTRUCTIONS

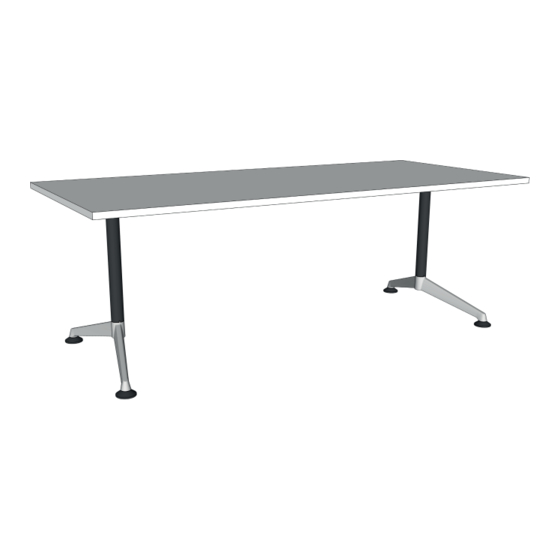

Blackjack Executive
Office Desk
Tools Required: Power screwdriver.
Special Note: No pre-drilled holes or nut inserts are
provided. Wood screws will be required to be drilled
directly into underside of desk top.
2 persons required for installation
www.jasonl.com.au
Need help!
Call us on
1300 527 665
Page 1 of 4
Advertisement
Related Manuals for Jason.L Blackjack Executive Office Desk
Summary of Contents for Jason.L Blackjack Executive Office Desk
- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Blackjack Executive Need help! Call us on Office Desk 1300 527 665 Tools Required: Power screwdriver. Special Note: No pre-drilled holes or nut inserts are provided. Wood screws will be required to be drilled directly into underside of desk top. 2 persons required for installation Page 1 of 4...
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Blackjack Executive Need help! Call us on Office Desk 1300 527 665 COMPONENTS Upper Wrist x2 Top Rail x1 Leg Tube x2 Fixed Foot x2 Foot Glide x4 Top Rail Cap x2 Plastic Support x1 Table Top x1 SCREWS M10x30mm x2 M10x65mm x2...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Blackjack Executive Need help! Call us on Office Desk 1300 527 665 Screw the glides into the base of the fixed feet, leaving the glides one Place the leg tube on top of the fixed foot, making sure each small notch in the bottom of the leg tube is in-line with the bumps on the top turn from tight (then they can be adjusted easily if the floor is uneven).
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Blackjack Executive Need help! Call us on Office Desk 1300 527 665 Fully tighten the small screws located at the bottom of each upper wrist Place the top rail cap into the exposed side of the upper wrist. to firmly hold the top rail in place.
