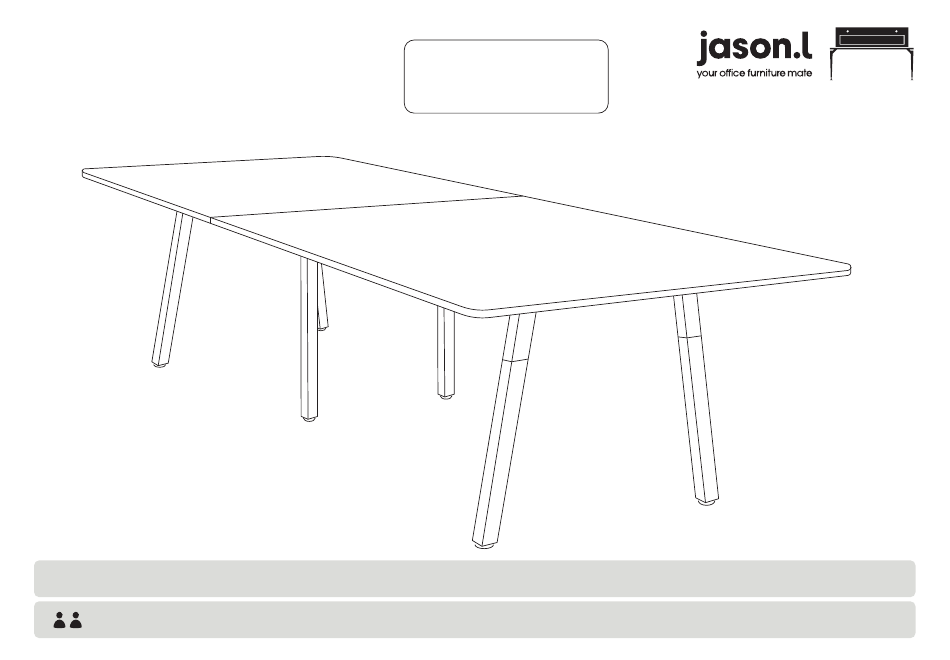

- Page 1 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 7...
- Page 2 Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm COMPONENTS Table top x2 Leg Quadro Wood A x2 Connector frame x1 Beam x2 Plastic bracket x8 SCREWS M8x20MM CSK x4 M8x20MM Socket head x4 M6x20MM Socket head x8...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm STEP 01 STEP 02 Plastic bracket holes facing to the other side. You will notice two colored Both legs must have the colour Insert the bottom of the legs as shown in the stickers located on each leg.
- Page 4 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm STEP 03 STEP 04 Using Allen Key provided, attach 2 plastic brackets per leg (E) Using Allen Key provided, attach M8x20MM Socket head (G)- (as per picture above) using M6x20MM (H) Socket head screw.
- Page 5 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm STEP 05 Adjust extendable beam to desired length using markers and secure beam at that length using screws provided 2000...
- Page 6 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm STEP 06 TOP VIEW STEP 07 Attach beam (D) to legs (B) and Connector frame (C) Frame looks like this. Using Allen Key, attach beam (D) with Socket (F) using nut insert in legs.
- Page 7 ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! Boardroom table Call us on 1300 527 665 Size: 3200mm x 1100mm STEP 08 STEP 09 Please drill M6x30MM Socket head (I) through the plastic Place the desktop on top of the frame. Please place the legs ideally indent- ed around 300mm from each end left and right of the Tops, Place the legs brackets into the underneath of the tops.
