Caution – Do NOT turn on power to the unit yet. Doing so can cause system
damage to occur.
7. Continue with Section 2.3 and Section 2.4 to connect the system to the network.
See Sections 2.5 through 2.7 for further cabling instructions.
2.4 Connecting the Network Cable to the
System
The locations specified in the following instructions assume the use of twisted-pair.
1. Locate the network cable.

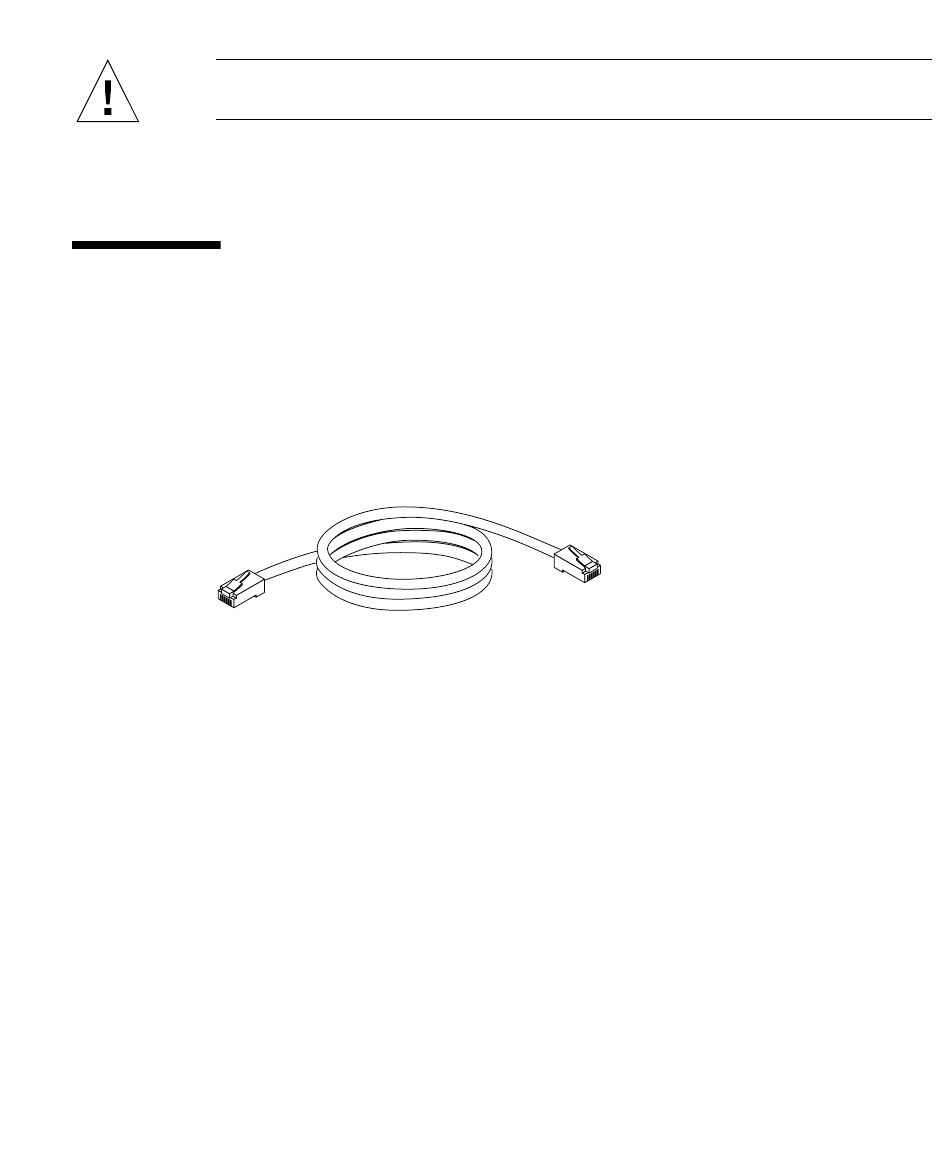

FIGURE 2-4
FIGURE 2-4
2. Connect one end of the network cable into the RJ-45 twisted-pair network port.
For 10/100BASE-T Ethernet, the default interface port is the onboard connector on
the I/O+ board in slot 1 (
shows the twisted-pair Ethernet network cable.
Network Cable
FIGURE 2-5
).
Chapter 2 Cabling the System 2-5
