Figure 2-1 Fiber Cable Organizer Mounted On Support Bracket - Sun Microsystems Enterprise 3500 System Installation Manual

3. Secure the organizer by pushing it outward along the support bracket until the
snap at the rear of the organizer clicks audibly into place.
4. Install the left spool brace by repeating Step 2 and Step 3.
5. Using the screw included in the kit, fasten the spool braces to the support bracket
through the center front cut out formed when both braces are in place.
6. Remount the retainer clip through the hex nut at the notch on the side of the
organizer.
Set the retainer clip screw into the hex nut.
7. To wrap the 2-meter fiber cable around the organizer spools to interconnect the
interface board and the I/O+ board for FC-AL disks, see Section 2.8.1 "Wrapping
the Fiber Cable on the Organizer" on page 2-13.

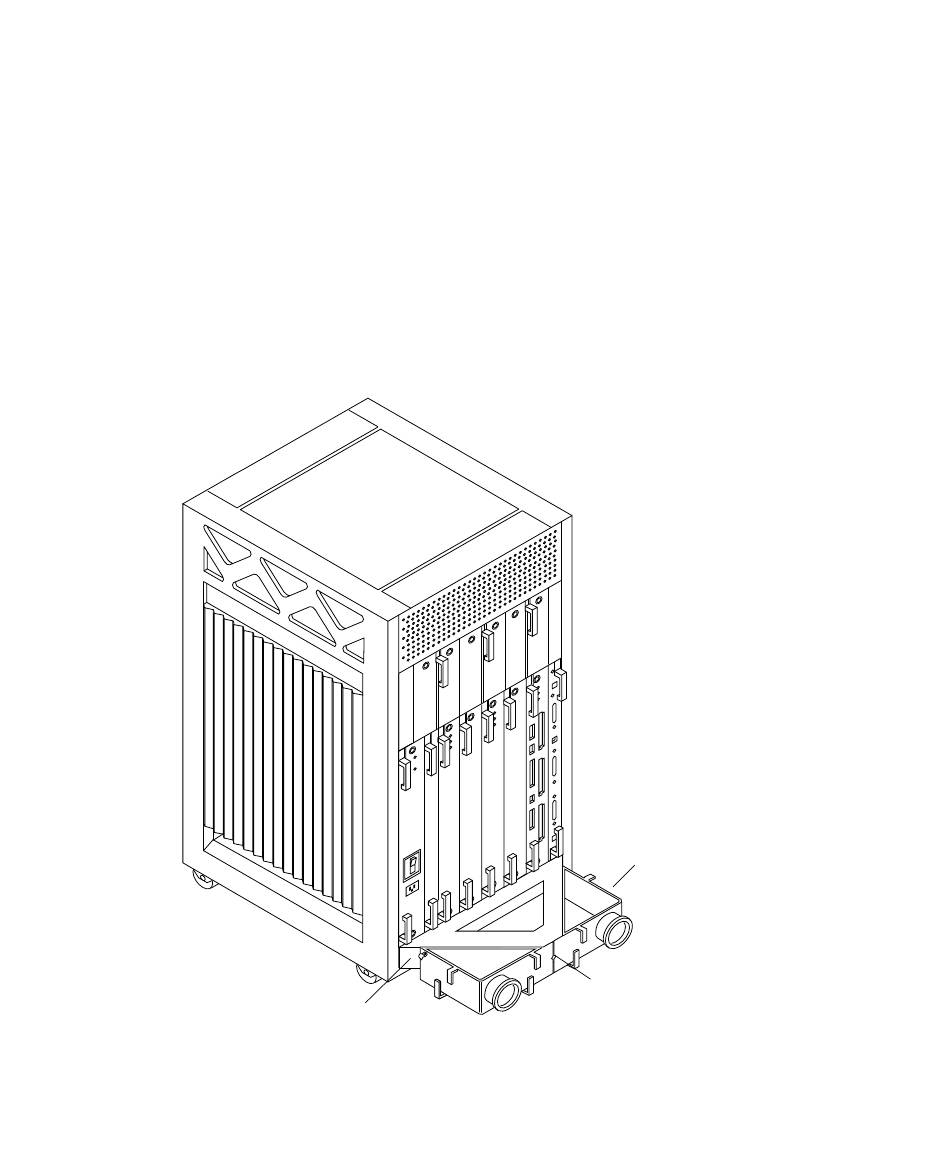

FIGURE 2-1
2-2 Sun Enterprise 3500 System Installation Guide • August 2001
Support bracket
Fiber Cable Organizer Mounted on Support Bracket
Cable organizer
Screw
