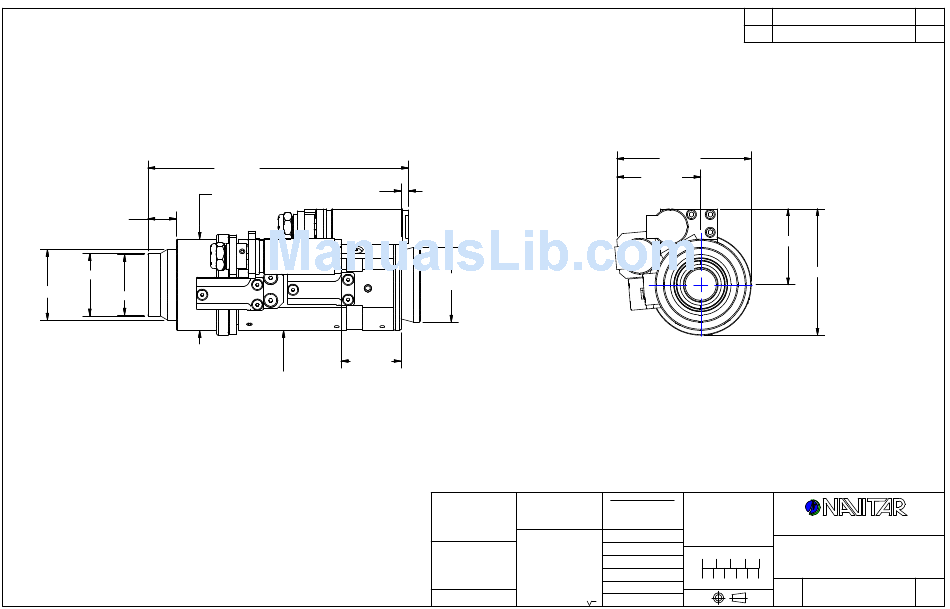

Navitar 1-62318 Dimensional Drawing

.50 [12.7]
1.093 - 32T
n
1.24 [31.5]
M25x.75T

MOTOR WIRE CONFIGURATION

PIN
1 MOTOR A+
3 +5Vdc
6 MOTOR B+
7 MOTOR A-
8 FAR LIMIT
11 MOTOR B-
12 NEAR LIMIT
13 COMMON
4.57 [116.1]
.14 [3.4]
n
1.60 [40.6]
1.05 [26.7]
n
1.60 [40.6]
+ .000
n
1.312
- .001
USED ON:
MATERIAL:
UNLESS OTHERWISE
SPECIFIED
DIMENSIONS ARE IN INCHES
AND INCLUDE CHEMICALLY
APPLIED OR PLATED FINISHES
TOLERANCES:
SCALE:
`
DEC. .XXX .005
FINISH:
`
DR.:
DEC. .XX .010
`
FRACT. 1/64 CH.:
ANODIZE, DYE BLACK
`
ANGLES 30'
APP.:
CONCENTRICITY .003 TIR
BREAK ALL SHARP EDGES
DATE DR.:
.005 MIN. .010 MAX
CHAMFER ALL THREADS
MAX. SURF. ROUGHNESS 32
DO NOT SCALE DRAWING
~
30 TO ROOT DIAM.

REV CHANGE RECORD AND DATE CH

A
RELEASE
2.36 [59.8]
1.47 [37.3]
1.33 [33.8]

P/N SUFFIX DEFINITION

THE CONTENTS OF THIS
DOCUMENT ARE PROPRIETARY
-1 CONVERSION COATING
TO NAVITAR, ITS USE IS
-2 PAINTING
AUTHORIZED ONLY FOR
-3 MARKING
RESPONDING TO REQUEST
-R REWORK
FOR QUOTATION OR
1:1
PERFORMANCE OF WORK FOR
NAVITAR
R. PODLENA
MOTORIZED (STEPPER) 6x ZOOM &
0.0 inch 1.0
12mm FF, DUAL 2 POSITION LS (HE)
P. BONAFEDE
SIZE
0.0 mm 25.0
8/9/2002
B
06/13/03
2.22 [56.3]

OUTLINE

ROCHESTER, NEW YORK
REV
1-62318
A
1 1
SHEET OF
