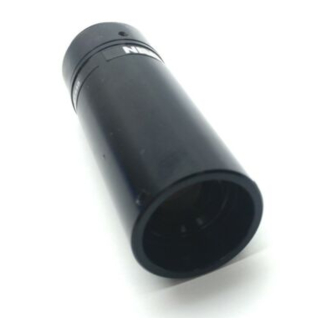

High Mag Fixed Lenses
• High resolution, diffraction-limited f/4.5 optical quality
for high precision measurement and inspection.
• Long working distance makes illumination and handling
easier.
• Compact size.
• Coaxial lighting available for shadow free illumination.
• Compatible with high-magnification infinity corrected
objectives (5X, 10X, 20X, 50X).
• Mechanically stable for the most demanding vibration
environments.
• Modular design for flexibility.
• Optics attach to any C-mount camera.
• Short tube length (approx. 4 inches) and small diameter
(1.25 inches).
• Fixed and/or 3 mm fine focus models available.
• High transmission (>70%) over the visible to near IR
spectrum.
• Covers magnification factors between 0.22X and 91X.
• Working distance ranges from 13 mm to 370 mm.
Precise Eye
Advertisement
Related Manuals for Navitar 1-60111
Summary of Contents for Navitar 1-60111

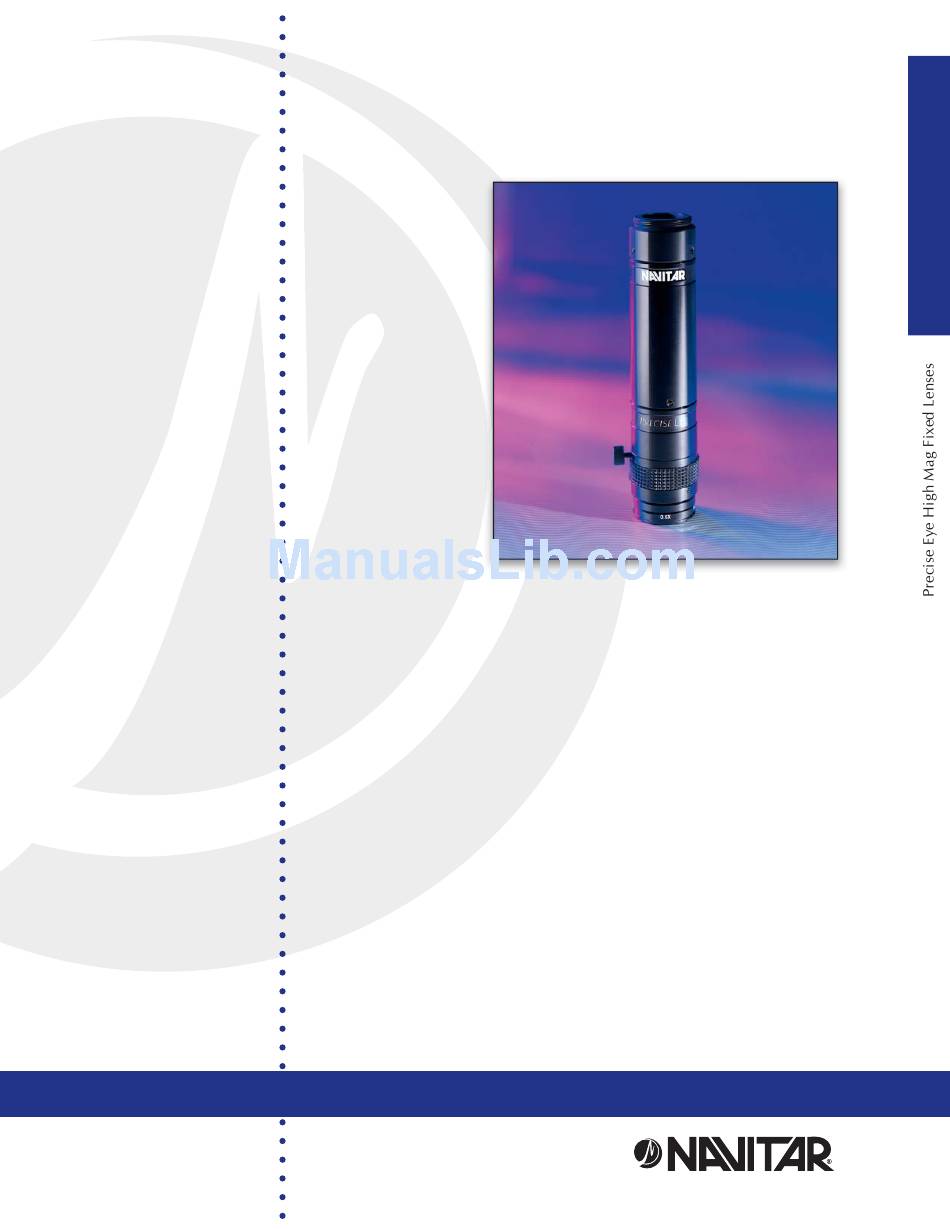

- Page 1 Precise Eye High Mag Fixed Lenses • High resolution, diffraction-limited f/4.5 optical quality for high precision measurement and inspection. • Long working distance makes illumination and handling easier. • Compact size. • Coaxial lighting available for shadow free illumination. • Compatible with high-magnification infinity corrected objectives (5X, 10X, 20X, 50X).
- Page 2 When selecting a lens for high precision applications, it is important to differentiate between standard video lenses and Navitar’s Precise Eye series. Video lenses were originally designed for very low magnification, surveillance applica- tions at working distances of greater than three feet (ap- proximately 1 meter).
- Page 3 P h o n e : 8 0 0 - 8 2 8 - 6 7 7 8 o r 5 8 5 - 3 5 9 - 4 0 0 0 Precise Eye system dimensions can be found on our website at www.machinevision.navitar.com 0.5X Adapter 0.67X Adapter...
- Page 4 1-61517 1-61521 1-62840 M26 x 36T 3-60160 * Mitutoyo 1-60226 1-60227 * Included with ULTRA PRECISE EYE ** Items are Special Order (Contact Navitar for Additional Information). http://machinevision.navitar.com Adapter Tubes 1.0X 1.33X 2X NIRA 1-61445 1-61448 1-62263 Ultra Motorized Body Tubes 3mm F.F.
-
Page 5: Lens Attachments
Coax w/ Coax. w/ Rt. Ang. Coax 1-62247 1-62707 1-61446 Lens Attachments 0.25X 0.5X 0.75X 1.5X 1-60110 1-60111 1-60112 (84mm) 1-61663 z i r 3mm F.F. 3mm F.F. w/ coax Polarizer/Analyzer Encoded/Servo 2 Phase Stepper w/ 3mm F.F. 1-62691 **... - Page 6 3.60x 0.141 4.79x 0.141 7.20x 0.141 • email: info@navitar.com N.A. Object Side Measurement at the object point of the largest cone of light rays that are entering the optical system. Resolvable Features (microns) Measurement of lens system’s ability to image closely spaced points, lines and object surfaces as separate enti- ties.
- Page 7 Ultra Precise Eye Navitar also offers a variety of Ultra Precise Eye systems ideal for high magnification applications. The advanced design produces outstanding contrast and precision, while providing higher resolution and magnification than the standard Precise Eye. These systems incorporate infinity...
- Page 8 Precise Eye Internal Co-axial Navitar’s Precise Eye with Internal Co-axial Illumination (1-61446) is an ideal solution for applications involving highly reflective surfaces, such as wafers, polished samples, and fluids. Designed to provide even illumination for higher magnification applications, coaxial illumination provides extremely detailed resolution, particularly when a high resolutin camera is used.
- Page 9 Precise Eye NIR Lens Navitar’s Precise Eye NIR lens system offers high resolution and unparalleled sensitivity for capturing microscopic images. We have specially coated the glass on our Precise Eye NIR lens systems to be optimized for imaging in the 700- 1550nm (0.7-1.5 microns) wave-...
- Page 10 C-mount adapter, T-mount to C-mount adapter, etc.). Telescopes require a 1¼” to C-mount adapter. All of these various adapters can be fitted to the Navitar Digi- tal Camera Adapter to couple cameras and camcorders to virtually any lens, microscope or telescope.
