The BQ24800 evaluation module (EVM) is an SMBus 1- to 4-cell hybrid power boost mode battery charge
controller with battery-only boost and processor hot monitoring. The input voltage range is between 4.5 V
and 24 V, with a programmable output of 1-4 cells charge voltage and 128-mA to 8.128-A charge current.
This EVM does not include the EV2400 interface device; it must be ordered separately to evaluate the
BQ24800 EVM.
...................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
.....................................................................................................................
3
3.1
3.2
3.3
3.4
3.5
3.6
4
5
5.1
5.2
5.3
1
2
3
4
5
...................................................................................................................
6
.................................................................................................................
7
Mid-Layer 1
.................................................................................................................
8
9
10
11
1
2
3
Recommended Operating Conditions
SLUUC60 - February 2020
Submit Documentation Feedback
.......................................................................................................
.....................................................................................................
................................................................................................................
...........................................................................................................
....................................................................................................
.................................................................................
.......................................................................................
.................................................................................................
...........................................................................................
..............................................................................................
....................................................................................................
.....................................................................................
..........................................................................................................
....................................................................................................
............................................................................................
..............................................................................................
...............................................................................................................
................................................................................................................
...........................................................................................................
.................................................................................................
..............................................................................................................
...................................................................................
.....................................................................................
Copyright © 2020, Texas Instruments Incorporated
Contents
...........................................................................
............................................................................
............................................................
........................................................................
List of Figures
......................................................................
.........................................................................
List of Tables
User's Guide
SLUUC60 - February 2020
BQ24800 EVM
3
3
3
3
4
4
4
5
7
7
7
7
8
9
9
10
11
11
14
15
5
6
6
8
11
11
12
12
13
13
14
3
3
4
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments BQ24800EVM
Summary of Contents for Texas Instruments BQ24800EVM
-
Page 1: Table Of Contents
........................ Bottom Layer ......................Bottom Assembly ....................BQ24800EVM Schematic List of Tables ......................I/O Descriptions ................... Controls and Key Parameters Settings ..................Recommended Operating Conditions SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... - Page 2 ................EV2400 and BQ24800 EVM Connections ................... BQ24800EVM Bill of Materials Trademarks Microsoft, Windows are registered trademarks of Microsoft Corporation. BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated...
-
Page 3: Introduction
Connect TPS3898/SENSE_OUT pin to BQ24800/BATPRES pin Jumper installed The BQ24800EVM supports two methods for detecting the battery for input to the BATPRES pin. The use may either use the independent comparator of the BQ24800 or the external TPS3898A Voltage Monitor (U2.) To use the BQ24800 independent comparator, install jumpers at JP3 and JP4. -
Page 4: Recommended Operating Conditions
This EVM is compatible with both the EV2400 and EV2300 hardware kit. TI recommends using the EV2400 hardware kit. 2.1.6 Install Battery Management Studio (bqStudio) Software Double click the Battery Management Studio software installation file, follow the installation steps. BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 5: Equipment Setup

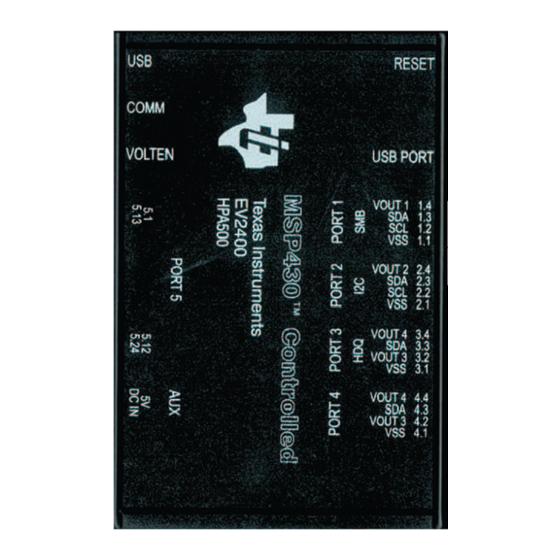

Table 4. EV2400 and BQ24800 EVM Connections BQ24800 EVM EV2400 GND (J5-1) VSS 1.1 SCL (J5-2) SCL 1.2 SDA (J5-3) SDA 1.3 Figure 1. Connections of the EV2400 Kit SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 6: Original Test Setup For Bq24800 Evm (Bms031)
Turn on the computer. Launch the bqstudio evaluation software and select charger and BQ24800. And then click the Registers button. The main window of the BQ24800 software is shown in Figure Figure 3. Main Window of BQ24800 Evaluation Software BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 7: Procedure
J2 (SYS, GND). Turn on the power of Load #1. The setup is now like Figure 4 for BQ24800EVM. SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 8: Hybrid Boost Mode
Procedure www.ti.com Figure 4. Test Setup for BQ24800EVM 3. Type “2944” (mA) in ChargeCurrent Register and click OK. This sets the battery charge current regulation threshold to 2.944 A. • Measure → IBAT = 3000 mA ±300 mA • Measure → V[TP14(IIADP)] = 340 mV ±40 mV 4. -
Page 9: Battery-Only Boost Mode
6. Turn off PS#1 Measure → V[TP5(BAT)] = 10 V ±1 V • • Measure → V[TP3(SYS)] = 10 V ±1 V (battery connected to system) SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 10: Pcb Layout Guidelines
See the EVM design for the recommended component placement with trace and via locations. For the WQFN information, see Quad Flatpack No-Lead Logic Packages Application Report QFN and SON PCB Attachment Application Report. BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 11: Board Layout, Schematic, And Bill Of Materials
BQ24800EVM PCB Layouts Figure 5 through Figure 10 show the PCB layouts for the BQ24800EVM. Figure 5. Top Assembly Figure 6. Top Layer SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 12: Mid-Layer 2
Board Layout, Schematic, and Bill of Materials www.ti.com Figure 7. Mid-Layer 1 Figure 8. Mid-Layer 2 BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 13: Bottom Layer
Board Layout, Schematic, and Bill of Materials www.ti.com Figure 9. Bottom Layer Figure 10. Bottom Assembly SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 14: Schematic
Board Layout, Schematic, and Bill of Materials www.ti.com Schematic The BQ24800EVM (Figure 11) schematic is provided for reference. Figure 11. BQ24800EVM Schematic BQ24800 EVM SLUUC60 – February 2020 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated... -
Page 15: Bill Of Materials
Board Layout, Schematic, and Bill of Materials www.ti.com Bill of Materials Table 5 lists the BQ24800EVM BOM. Table 5. BQ24800EVM Bill of Materials Designator Value Description Package PartNumber Manufacturer Reference !PCB1 Printed Circuit Board BMS031 0.01µF CAP, CERM, 0.01 µF, 25 V, ±5%, C0G/NP0,... - Page 16 Board Layout, Schematic, and Bill of Materials www.ti.com Table 5. BQ24800EVM Bill of Materials (continued) Designator Value Description Package PartNumber Manufacturer Reference R6, R7 RES, 3.9, 5%, 0.5 W, 1210 1210 ERJ-14YJ3R9U Panasonic RES, 6.8, 5%, 0.1 W, AEC-Q200 Grade 0,...
- Page 17 Board Layout, Schematic, and Bill of Materials www.ti.com Table 5. BQ24800EVM Bill of Materials (continued) Designator Value Description Package PartNumber Manufacturer Reference RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 CRCW06030000Z0EA Vishay-Dale 0603 SLUUC60 – February 2020 BQ24800 EVM Submit Documentation Feedback Copyright ©...
