How to replace the ribbon cable
16 March
FELIX Pro L and XL
2022
Revision 0
series

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro L Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Felix Storch Pro L Series

Summary of Contents for Felix Storch Pro L Series

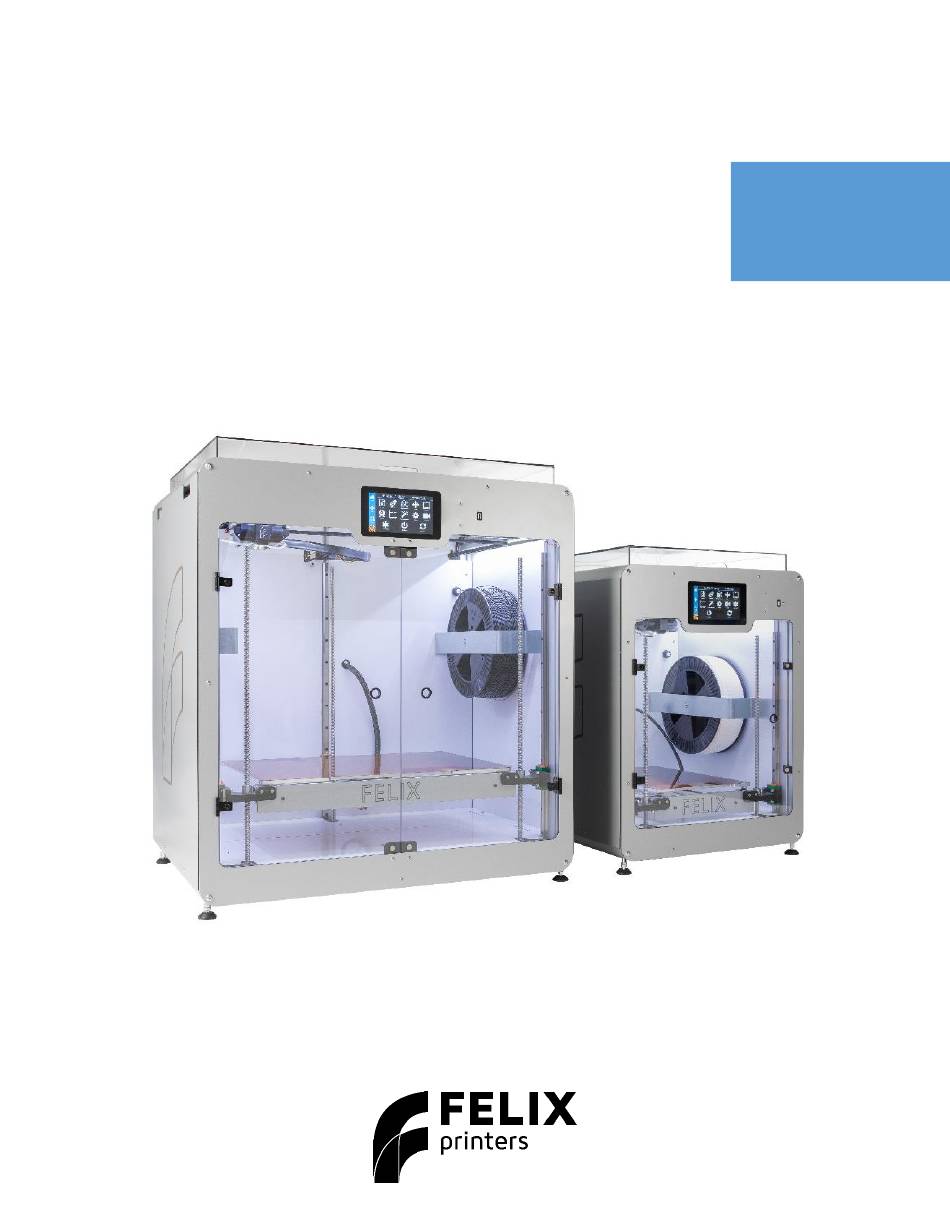

  • Page 1 How to replace the ribbon cable 16 March FELIX Pro L and XL 2022 Revision 0 series...
  • Page 2 Pro L XL series How to replace the ribbon cable 16 March 2022 1 Introduction This manual explains how to replace the ribbon cable properly. 2 Tools The tools you need to replace the ribbon cable of the Pro L and XL: •...

  • Page 3: Remove Cover

    Pro L XL series How to replace the ribbon cable 16 March 2022 2) Remove the back cover Remove the tubes. Green squares Loosen the M4 bolts for around 4 rotations using an allen key 2,5. Red circles Remove the back cover by removing the M8 bolts with a allen key 5.
  • Page 4 Pro L XL series How to replace the ribbon cable 16 March 2022 4 Disconnect the wiring 1) Disconnect servo cable Disconnect the servo cable from the mainboard. circle. Gently remove the servo cable out of the cable tray. www.FELIXprinters.com FELIX Pro L XL...
  • Page 5 Pro L XL series How to replace the ribbon cable 16 March 2022 2) Disconnect sensor cable Remove the sensor cable. circle. 3) Disconnect the ribbon cables Disconnect the ribbon cables. Be careful to not destroy the connectors. Red circle You can use tweezers.
  • Page 6 Pro L XL series How to replace the ribbon cable 16 March 2022 4) Disconnect the ribbon cables at the printhead Disconnect the ribbon cables. Be careful to not destroy the connectors. Red circles You can use tweezers. 5) Disconnect the servo cable at the printhead Disconnect the servo cable.
  • Page 7 Pro L XL series How to replace the ribbon cable 16 March 2022 5 Remove the old ribbon cable 1) Remove sensor bolts Loosen the bolts with an allen key 2,5. Red circles. 2) Remove the bracket bolts Loosen the bolts with an allen key 2,5. Red circles.
  • Page 8 Pro L XL series How to replace the ribbon cable 16 March 2022 3) Remove the spring bolts Warning: Don’t lose the plate that is positioned behind the spring! Loosen the bolts with an allen key 2,5. Red circles. 4) Remove the ribbon cable Gently remove the ribbon cable out of the printer.
  • Page 9 Pro L XL series How to replace the ribbon cable 16 March 2022 6 Place the new ribbon cable 1) Place the new ribbon cable Grap the new ribbon cable assembly and place the backend trough the back plate. 2) Fix the ribbon cable spring Fix the spring with de 2 bolts.
  • Page 10 Pro L XL series How to replace the ribbon cable 16 March 2022 3) Fix the bracket bolts Fix the bolts with an allen key 2,5. Red circles. 4) Fix sensor bolts Fix the bolts with an allen key 2,5. Red circles.
  • Page 11 Pro L XL series How to replace the ribbon cable 16 March 2022 5) Connect the servo cable at the printhead Connect the servo cable. circle. 6) Connect the ribbon cables at the printhead Connect the ribbon cables. Make sure you insert the ribbon cables straight.
  • Page 12 Pro L XL series How to replace the ribbon cable 16 March 2022 7) Connect the ribbon cables Connect the ribbon cables. The long ribbon cable goes in the right connector and the short ribbon cable goes in the left connector.
  • Page 13 Pro L XL series How to replace the ribbon cable 16 March 2022 9) Connect servo cable Connect the servo cable to the mainboard. circle. Gently place the servo cable back in the cable tray. www.FELIXprinters.com FELIX Pro L XL...
  • Page 14 Pro L XL series How to replace the ribbon cable 16 March 2022 7 Check working Warning: Always turn of the printer when you need to reinsert cables! 1) Place the cover Place the cable tray cover. 2) Turn on the printer Turn on the printer.
  • Page 15 Pro L XL series How to replace the ribbon cable 16 March 2022 3) Temperatures Info: reinstall the ribbon cables into the connector if it doesn’t! Check if the printer can read the hotend temperatures. 2) Homing Hit move. www.FELIXprinters.com FELIX Pro L XL...
  • Page 16 Pro L XL series How to replace the ribbon cable 16 March 2022 Hit “home all”. If it doesn’t home correctly. Turn off the printer and try to reinsert the cables. www.FELIXprinters.com FELIX Pro L XL...

  • Page 17: Closing The Printer

    Pro L XL series How to replace the ribbon cable 16 March 2022 8 Closing the printer 1) place the back cover Turn off the printer and remove the power cable. Hold the backcover in place. Screw the M8 bolts in place using a allen key 5.
  • Page 18 Pro L XL series How to replace the ribbon cable 16 March 2022 If you are unable to continue or have any questions, you can check at the support section of our website or you can contact us directly: Website: www.felixprinters.com/support Email: support@felixprinters.com...

This manual is also suitable for:

Pro xl series
