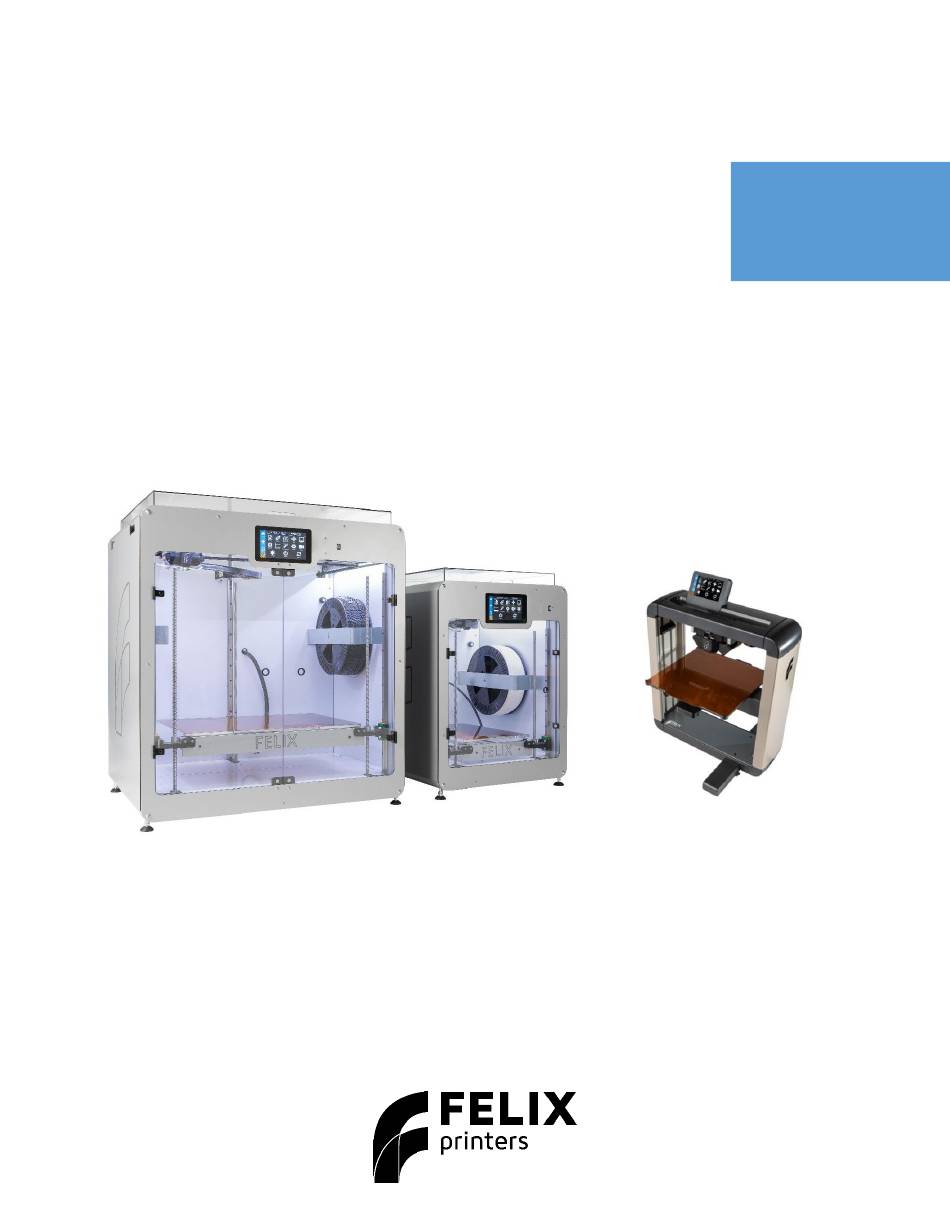

- Page 1 How to replace a hot-end nozzle 29 January FELIX Pro series 2021 Revision 2...
- Page 2 Pro series How to replace a hot-end nozzle 29 January 2021 1 Introduction This tutorial explains how to exchange a hot-end nozzle properly. A replacement can be needed, when the tip is completely clogged or when it is required to use a different nozzle size, also see the Cold pull method this can safe most clogged nozzles.
- Page 3 Pro series How to replace a hot-end nozzle 29 January 2021 4 Remove the screws in the hot-end Warning: only hold the hot-end by the barrel. Do not put pressure on the outside mechanism. This part is calibrated at the FELIXprinters factory - any changes in the calibration will influence the print results.
- Page 4 Pro series How to replace a hot-end nozzle 29 January 2021 5 Remove the tip of the hot-end Place the open Wrench 12 around the body of the hot-end to be able to hold it firmly. Use a closed Wrench 7 to remove the tip of the hot-end.
- Page 5 Pro series How to replace a hot-end nozzle 29 January 2021 6 Place the new tip Now that the old tip is removed, place the new tip and lock it firmly into its place. Place the new nozzle and turn it in by hand.
- Page 6 Pro series How to replace a hot-end nozzle 29 January 2021 7 Reconnect the hot-end to its cables Put the cables into their slots again and carefully lock them with the small screws. Check that the cable goes to the right side away from the handle.
- Page 7 Pro series How to replace a hot-end nozzle 29 January 2021 You are now be able to use the FELIX Pro again If you are unable to continue or have any questions, you can check at the support section of our website or...
