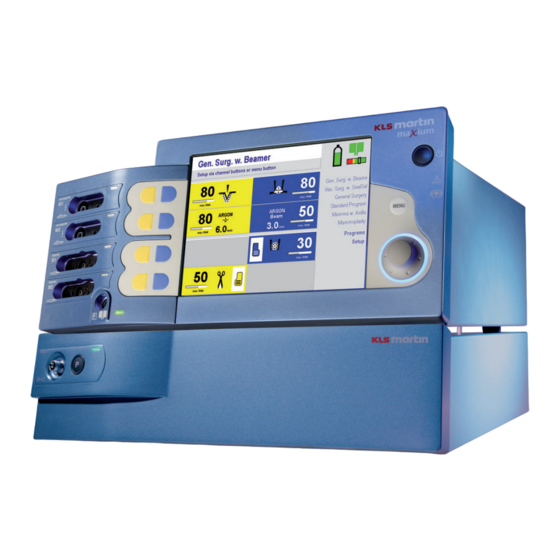

- Page 1 Electrosurgical Unit ® with maxium Beamer Service manual Valid from HW00 up to HW06 Version 5.0-EN (08.10)
-
Page 2: Table Of Contents
® ® KLS Martin maxium / maxium Beamer Service Manual Table of Contents Product Liability & Warranty ............6 General Information ................6 Warranty ..................... 6 User’s Inspection of Delivered Spare Parts ..........6 Hotline....................7 Transportation and Packaging ............7 User’s Inspection .................. - Page 3 ® ® KLS Martin maxium / maxium Beamer Service Manual Software Status and Software Version Numbers........94 5.4.1 General Information ..................94 5.4.2 Software Version 0.247 ................... 95 5.4.3 Software Version 0.251 ................... 95 5.4.4 Software Version 0.257 ................... 95 5.4.5...
- Page 4 ® ® KLS Martin maxium / maxium Beamer Service Manual Technical Description of the ME402 with MB402 Option ....130 General Information ................130 Design and Servicing Concept ............. 131 Functional Description of the ME402 ............ 131 7.3.1 Power Supply Units (PSUs) ................131 7.3.2...
- Page 5 ® ® KLS Martin maxium / maxium Beamer Service Manual Settings and Checks & Tests ............207 10.1 Adjusting Positions of the ME402 ............207 10.2 Setting the Power Manager Board ............207 10.2.1 Power Manager Boards I and II in HW00, HW01 and HW02 ....... 208 10.2.2...
-
Page 6: Product Liability & Warranty
Product Liability & Warranty General Information We thank you for having decided to buy a KLS Martin product. This product bears the CE- mark, which means that it satisfies the essential requirements laid down in the EC Directive relating to medical devices. -
Page 7: Hotline
KLS Martin maxium ME402 Power cord Operating Instructions (user manual) Optional: Standard accessories set Scope of delivery of maxium Beamer packaging unit: ® KLS Martin maxium Beamer MB402 Connecting cable Mounting kit for connecting Beamer with maxium and maxium Cart Compensation Claims Claims for damages shall only be accepted if the seller or carrier is notified immediately. -
Page 8: Return Of Goods
® ® KLS Martin maxium / maxium Beamer Service Manual Return of Goods When returning a unit to Gebrüder Martin or a Gebrüder Martin service point, use the original packaging material (cardboard box) if possible, and add the following information (accompany- ing documents): •... -
Page 9: Service Functions
® ® KLS Martin maxium / maxium Beamer Service Manual Service Functions Service Menu ® The maxium offers basic setting and service functions. These are grouped in the “Service” submenu. MENU Service menu ® Pressing the MENU button on the maxium and selecting the Setup menu item takes you to the Setup submenu. - Page 10 ® ® KLS Martin maxium / maxium Beamer Service Manual Service menu Service menu Basic settings Basic settings E s c a p e E s c a p e Program Settings Power up w.std prg Beamer Parameters Edit standard prog...
- Page 11 ® ® KLS Martin maxium / maxium Beamer Service Manual Start-up with Standard program (from SW0.331) Service menu Service menu Basic settings Basic settings E s c a p e E s c a p e Program Settings Power up w.std prg...
- Page 12 ® ® KLS Martin maxium / maxium Beamer Service Manual Reset Programs (up to SW2.347: “Create programs”) Service menu Service menu Basic settings Basic settings E s c a p e E s c a p e Program Settings Power up w.std prg...
-
Page 13: Beamer Parameters
® ® KLS Martin maxium / maxium Beamer Service Manual This function allows locking programs in order to prevent their being saved in modified form. If the user wishes to prevent any changes in a user-defined program, he/she can use the menu path Program Settings / Lock Program to have a list of programs displayed (note, however, that the access code is required for this!). - Page 14 ® ® KLS Martin maxium / maxium Beamer Service Manual Service menu Service menu Service menu Service menu Please connect Argon Beamer with gas cylinder filled! Please connect Argon Beamer with gas cylinder filled! Cal. of argon filling level indicator at two test pressures Please open argon gas cylinder briefly, then close it again! Reading at max.
- Page 15 ® ® KLS Martin maxium / maxium Beamer Service Manual Beamer Parameters (gas supply status) (from SW0.311) Service menu Service menu Basic settings Please connect Argon Beamer with gas cylinder filled! E s c a p e E s c a p e Program Settings Filling Level Cal.
- Page 16 ® ® KLS Martin maxium / maxium Beamer Service Manual The filling level of the argon gas cylinder is displayed on the screen. The parameter used for deriving the indicated filling level is the gas pressure present at the input of the Beamer. How- ever, this is not a constant value, as the output pressure of the pressure reducer –...
- Page 17 ® ® KLS Martin maxium / maxium Beamer Service Manual Set Alarm Threshold (from SW0.311) Service menu Service menu Please connect Argon Beamer with gas cylinder filled! Please connect Argon Beamer with gas cylinder filled! E s c a p e...
- Page 18 ® ® KLS Martin maxium / maxium Beamer Service Manual Error Log (from SW1.343) Service menu Service menu Please connect Argon Beamer with gas cylinder filled! Please connect Argon Beamer with gas cylinder filled! E s c a p e...
-
Page 19: Settings
® ® KLS Martin maxium / maxium Beamer Service Manual 4.1.3 Settings This submenu provides access to some background functions such as clock setting, HF voltage limitation and activation tone setting (sound scheme selection). Service menu Service menu Servicemenu Basic settings... - Page 20 ® ® KLS Martin maxium / maxium Beamer Service Manual Time (from HW02 and SW1.343) Service menu Service menu Basic settings Basic settings E s c a p e E s c a p e Program Settings Clock Beamer Parameters...
