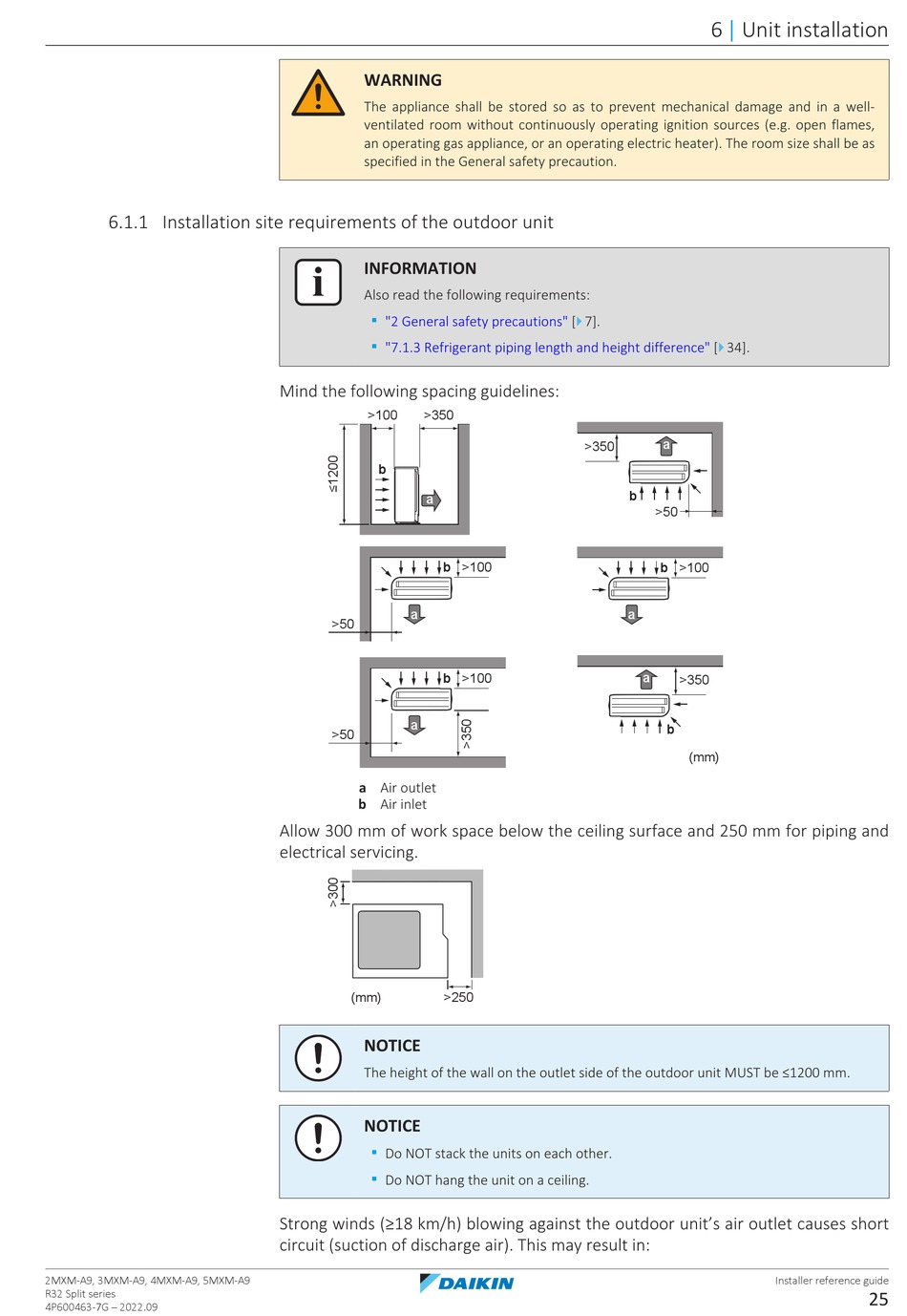

6.1.1 Installation site requirements of the outdoor unit

2MXM-A9, 3MXM-A9, 4MXM-A9, 5MXM-A9
R32 Split series
4P600463-7G – 2022.09
WARNING
The appliance shall be stored so as to prevent mechanical damage and in a well-
ventilated room without continuously operating ignition sources (e.g. open flames,
an operating gas appliance, or an operating electric heater). The room size shall be as
specified in the General safety precaution.
INFORMATION
Also read the following requirements:
▪
"2 General safety
▪
"7.1.3 Refrigerant piping length and height
Mind the following spacing guidelines:
>100 >350
b
a
b
a
>50
b
a
>50
a Air outlet
b Air inlet
Allow 300 mm of work space below the ceiling surface and 250 mm for piping and
electrical servicing.
(mm) >250
NOTICE
The height of the wall on the outlet side of the outdoor unit MUST be ≤1200 mm.
NOTICE
▪
Do NOT stack the units on each other.
▪
Do NOT hang the unit on a ceiling.
Strong winds (≥18 km/h) blowing against the outdoor unit's air outlet causes short
circuit (suction of discharge air). This may result in:
4
precautions" [ 7].
>350
b
>100
a
>100
6 Unit installation
|
difference" [ 4 34].
a
>50
b
>100
a
>350
b
(mm)
