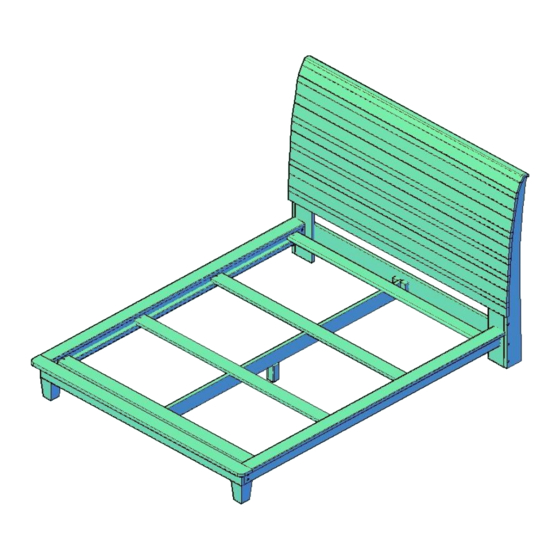

SLEIGH BED ASSEMBLY INSTRUCTIONS ( 78-159,78-161 )
THANK YOU FOR YOUR PURCHASE !
PLEASE CONTACT YOUR RETAIL STORE WITH SERVICE OR PARTS REPLACEMENT REQUEST

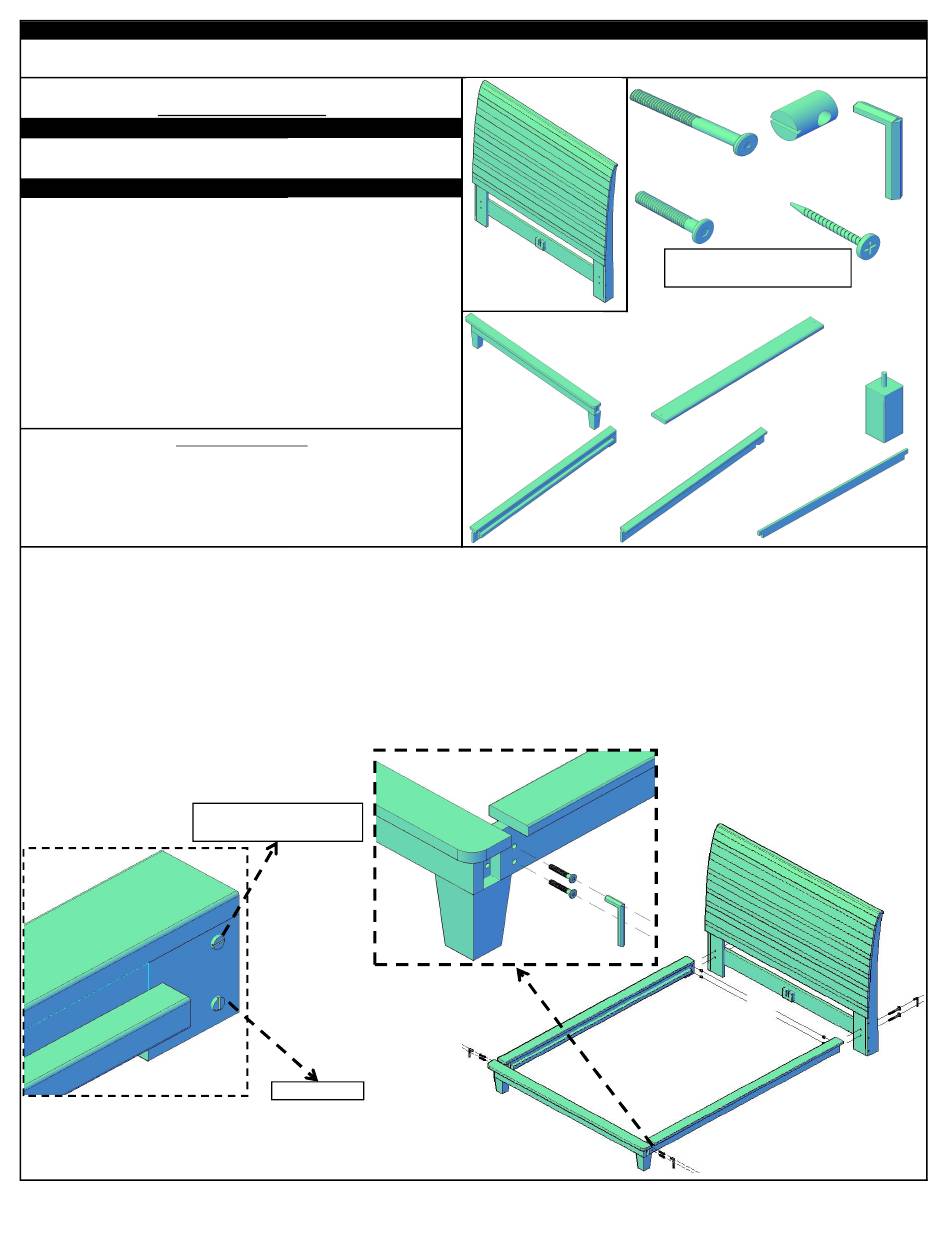

LIST OF CONTENTS
I
H
A
RECLAIM COLLECTION
SLEIGH BED HEADBOARD BOX (78-159,78-161) FIG.1
A.- (1) HEADBOARD
J
PLATFORM BED FOOTBOARD BOX (78-112,78-113) FIG.2
K
L
B.- (1) FOOTBOARD
C.- (1) LEFT SIDE RAIL
D.- (1) RIGHT SIDE RAIL
HARDWARE PACK
E.- (1) WOOD CENTER SUPPORT
HPK00105
FIG.1
F.- (1) SUPPORT
G.- (4) SLATS
HARDWARE PACK (HPK00105)
FIG.2
H.- (4) 5/16"-18 X 80MM FLAT HEAD BOLTS
B
I.- (4) 5/16"-18 X 5/8" CROSS DOWEL NUTS
G
J.- (1) 5MM ALLEN WRENCH
K.- (4) 5/16"-18 X 60MM FLAT HEAD BOLTS
F
L.- (8) 1 1/4" SCREWS
TOOLS NEEDED
PHILLIPS HEAD SCREWDRIVER ( NOT INCLUDED )
C
E
5MM ALLEN WRENCH ( INCLUDED )
D
TO ASSEMBLE THIS SLEIGH BED REQUIRES
TWO PERSONS
1.- BEFORE YOU START, CAREFULLY UNPACK AND IDENTIFY EACH COMPONENT AND PIECE OF HARDWARE TO MAKE SURE YOU HAVE EVERYTHING YOU NEED FOR
ASSEMBLY.
2.- ASSEMBLE SLEIGH BED, USING ONE HEADBOARD (A), ONE FOOTBOARD (B), ONE LEFT SIDE RAIL (C) AND ONE RIGHT SIDE RAIL (D).
3.- INSERT TWO DOWEL NUTS (I) INTO THE LEFT AND RIGHT SIDE RAIL ONLY ONE SIDE,SEE THE HOLES, MAKE SURE THE GROOVE IS HORIZONTAL, SEE FIG.3
4.- ATTACH THE SIDE RAIL INTO THE HEADBOARD ( A ), INSERTING TWO 80MM FLAT HEAD BOLTS ( H ) IN THE BACK HOLES OF HEADBOARD, ALIGNED WITH THE
HOLES OF SIDE RAIL, USE THE 5MM ALLEN WRENCH (J) TO TIGHTEN BOLTS, SEE FIG.4
5.- LATER, ATTACH SIDE RAIL IN THE FOOTBOARD, ALIGN THE SIDE RAIL HOLES WITH THE FOOTBOARD HOLES, INSERTING TWO 60MM FLAT HEAD BOLTS (K), ( FIG.A )
USING 5MM ALLEN WRENCH (J) TO TIGHTEN ALL BOLTS, SEE FIG.4
6.- TURN AROUND, WOOD CENTER SUPPORT ( E ) UPSIDE DOWN, INSERT THE SCREW BOLT INSTALLED IN THE SUPPORT ( F ), TO TIGHTEN THE OPOSSITE
OF CLOCKWISE (FIG.B), THEN PLACED THE WOOD SUPPORT, FIRST IN SLOT OF FOOTBOARD AND THEN IN SLOT OF HEADBOARD, SEE FIG.5
YES,
FIG.3
HORIZONTAL GROOVE
FIG.A
NO
MAKE SURE ALL BOLTS ARE
FIG.4
TIGHTENED COMPLETELY
PAGE 1 OF 2
REV 01 19/09/2016
KIS01133
