787-15 DESK WITH POWER & USB OUTLET
Table Top
1pc
Rear Stretcher
(Long)
1pc
Allen Key
M5x60mm
1pc
ASSEMBLY INSTRUCTION
Front Leg L&R
2pcs
Jcbc Bolt
M8x60mm
8pcs
Csk-Screw
M4x38mm
6pcs
Back Leg
2pcs
Lock Washer
M8
8pcs

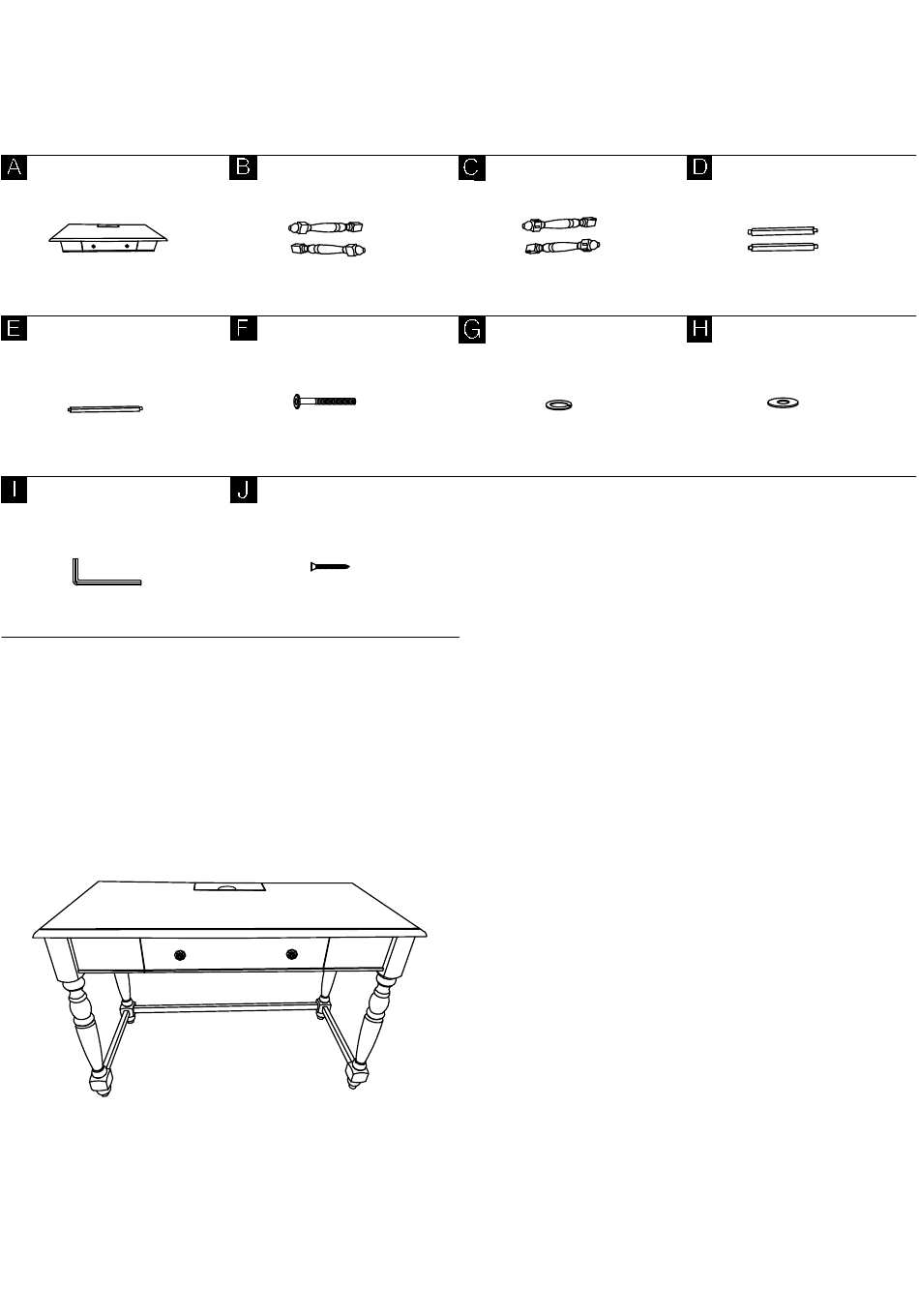

This page lists all the contents included in the box.
Please take the time to identify the hardware as
well as the individual components to this product.
As you unpack and prepare for assembly, place the
contents on a carpeted or padded area to protect
them from damage.
1
Side Stretcher
(Short)
2pcs
Flat Washer
M8
8pcs
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO 787-15
Summary of Contents for ROOMS TO GO 787-15
- Page 1 ASSEMBLY INSTRUCTION 787-15 DESK WITH POWER & USB OUTLET Table Top Back Leg Front Leg L&R Side Stretcher (Short) 2pcs 2pcs 2pcs Rear Stretcher Jcbc Bolt Lock Washer Flat Washer M8x60mm (Long) 8pcs 8pcs 8pcs Allen Key Csk-Screw M5x60mm M4x38mm 6pcs This page lists all the contents included in the box.
- Page 2 Put the Table Top (A) upside down on the soft and smooth surface. Attach Back Leg (C) onto Table Top (A). Then insert Jcbc Bolt (F), Lock Washer (G) and Flat Washer (H) into holes of each corner block of Table Top (A) by using Allen Key (I). Do not fully tighten the bolts in this step.
- Page 3 Insert Side Stretcher (Short) (D) into the holes of Back Leg (C) with Csk-Screw (J) by using Screwdriver (not included). Insert Side Stretcher (Short) (D) into Front Leg (B) with Csk-Screw (J) by using Screwdriver (not included). Attach the other Front Leg (B) onto Table Top (A). Then insert Jcbc Bolt (F), Lock Washer (G) and Flat Washer (H) into holes of each corner block of Table Top (A) by using Allen Key (I).
- Page 4 Turn the assembled Table to the upright position carefully. Make sure the Table is level, and then securely tighten all bolts at this stage. Assembly is now completed. Stand Table up on an even surface and check that it is balanced. If there is a slight wobble, apply downward pressure in the corner where a leg is uneven.
