Page 1

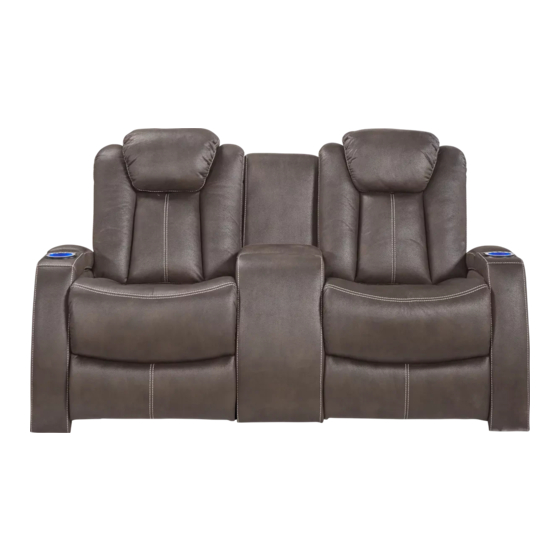

ASSEMBLY INSTRUCTION DUAL POWER LOVESEAT WITH CONSOLE HLVN 6941 / 56941B Manufactured for Rooms To Go HLVN SKU: 6941-49 11269695 56941B-49 15256692 LIST OF PARTS Description Item Quantity Backrest (LSF, RSF) Seat Console backrest Triangle nut (for console) Wall plug...
Page 2
ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions from the packing and console's backrest from inner console frame with its triangle nuts. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click"...
Page 3
Step 4: Connect wall plug transformer to transformer switch. And connect transformer plug to electrical outlet. ELECTRICAL CONTROLS 1 Press button to recline the loveseat & console to desired position 2 Press button to raise the loveseat & console to the upright position. 3 Press button to activate the headrest forward.
Page 4
WARNINGS * Keep unit at least 6" from wall. * Keep unit at least 24" from all heat sources. * Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. * Do not reach under seat when mechanism is operating or serious injury may occur.
Page 5
CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
