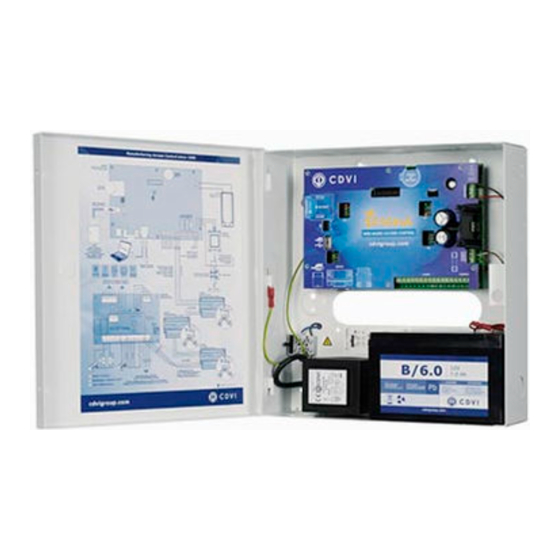

- Page 1 ENGLISH FRANCAIS TERENA TERENA16 Web based access control Centrale de contrôle d’accès par internet Range: Integrated Access Control / Gamme : Contrôle d’Accès intégré INSTALLATION MANUAL MANUEL D’INSTALLATION Group products...
- Page 2 Making backup copies of your data is therefore essential.
- Page 3 The green light (PWR) goes off. - Close your internet browser. - Wait for the green light (PWR) to come on next to the USB socket on the TERENA unit and for the flashing light (LOW BATT) to come on.
-
Page 4: Table Of Contents
5] ELECTRONIC BOARD ................P. 5 6] THE DOOR CONTROLLER (INTBUSW) AND READERS ....... P. 8 7] SUPPLEMENTARY MODULES ..............P. 8 8] WIRING DIAGRAM ................P. 11 9] ASSEMBLY ..................P. 12 10] CONFIGURATION OF THE TERENA ............P. 12 cdvi.com cdvigroup.com... -
Page 5: Presentation Of The Product
: “An EIA-485 line may interconnect - It is strongly recommended that you equip several devices in parallel, with each one featuring the TERENA with a back-up battery (Optional, an emitter and a receiver. Maximum distances Ref : B7AH). -
Page 6: Choice Of Setup
If the installation is not carried out exactly Others aspects to be respected : according to the constructor’s recommendations, A. Within the framework of normal use of the Terena this may result in serious damage with regard system, the cabinet must remain closed and locked to functioning and security. -
Page 7: Assembly Kit
INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control 4] ASSEMBLY KIT Tamper Tamper RJ45 125V 250V Cabinet 120 Ohm Battery Ty-rap switch for switch for crossover 315mA lock resistor wires strap Wall cable Fuse Fuse TERENA 1 Red TERENA16... - Page 8 TERMINAL CORRESPONDENCE Wait until the “RX”, “TX”, “AL” and “SCR” LEDs are no longer lit up before disconnecting the TERENA. After the TERENA has been shut down 3 point terminal block with the dipswitch 2:...
- Page 9 If the TERENA is connected to the mains without a battery, the “BAT ON” and “BAT CHECK” LEDs are not lit up. If the TERENA is functioning on battery power, the battery charge status is analyzed (VHIGH = 14.4V, VLOW=11.5V and VCRITICAL = 10.2V) in order to define what action needs to be taken.
-
Page 10: The Door Controller (Intbusw) And Readers
INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control 6] THE DOOR CONTROLLER (INTBUSW) AND READERS The door controller (Ref : INTBUSW) - The 26, 30 or 44 bit format depends on the type of head used (refer to the attached table - An INTBUSW door controller is required for each of Wiegand reader formats (factory settings). - Page 11 INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control - The relay contacts on the elevator board are NO C14D/A contacts (Normally Open). The contact is open when in the rest position, and closed for the relay command. - The relay contacts are used for access authorization...
- Page 12 INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control Signal control board (C1410S) Board indicating the status of a reader zone, used TERMINAL CORRESPONDENCE STATUS for entry/exit counting. Common outputs The board is connected to the central control unit using a 2 wire cable (RS485 BUS >: Recommended...
-
Page 13: Wiring Diagram
INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control 8] WIRING DIAGRAM TERENA Web based CR2032 Access Control 3 V lithium battery SD Card B7AH Battery 12V - 7aH 285 mm Connection 125V/7A Fuse TR1640 Transformer Grounding connector (fixed to... -
Page 14: Assembly
10] CONFIGURATION OF THE TERENA SYSTEM A - First time connection (local connection only) Your TERENA system is now connected, for direct access with a crossover cable, according to the recommendations detailed in the previous pages. To access the administration interface on your browser, the default address is : http://192.168.0.100:8087/admin... - Page 15 INSTALLATION MANUAL TERENA - TERENA16 Web Based Access Control ADMINISTRATION INTERFACE You are now on the “administration” page. the greyed zones are inactive and are default settings, whereas the active zones are enabled and may be modified by the administrator. in the attached table, you will find all of the details concerning the “administrators”...
- Page 16 RESET CONTROLLER. This will set the factory default EXIT values on the controller. Allows you to exit the TERENA interface. When all the configuration of the controller have been set then restart the tereNa controller to save all new settings. Click on the restart icon. cdvi.com cdvigroup.com...
- Page 17 Press on the delete icon to remove a reader. the files. When the “administrator” options have been validated, restart the tereNa system so that the settings occur when the system is restarted. cdvi.com cdvigroup.com...
- Page 18 Select the backup file (.tar). Download the user records. LOAD FILE SEND READER GROUPS Download the reader groups only. The restoration data is transferred to the TERENA central control unit. EXTRACT THE FILES SEND SCHEDULE GROUPS Mandatory operation after any backup data Download the schedule groups.
- Page 19 Once the update file has been successfully sent, order detailed below. installs the update package on the system. Sending order for the update files : LOAD FILE Admin.tar. Sends the file to the TERENA control unit. www.tar. Executable.tar Binary.tar System.tar. Restart the system to validate the update (D).
- Page 20 [On the same network as the TERENA] http://(local IP address):(Port number)/admin C - Access to the “Management” menu You can access the TERENA management menu using your web browser by entering the following address : [Via internet] http://(IP supplied by your IAP*):(Port number)/...
