Summary of Contents for Iget HOME X5

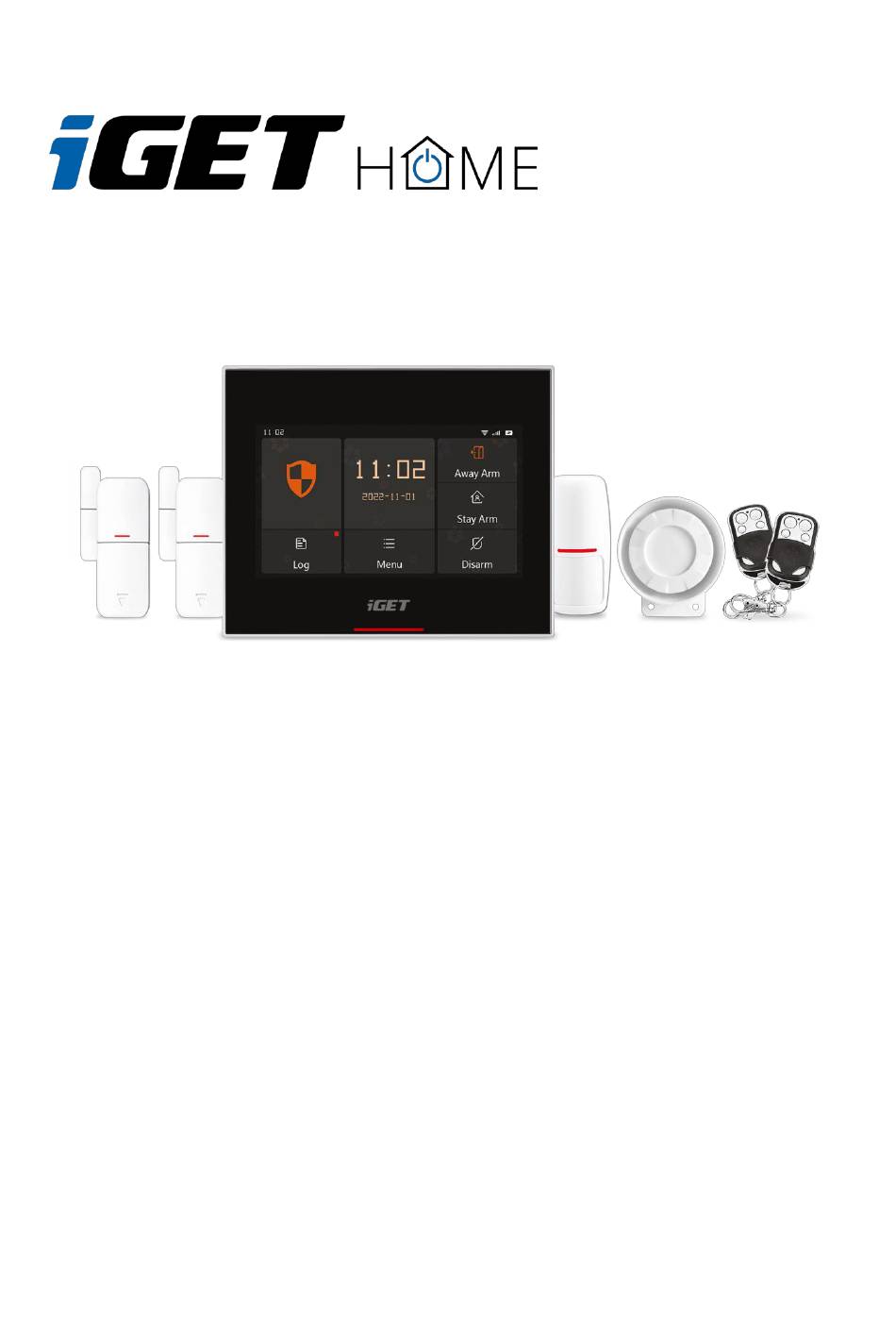

- Page 1 EN: User manual CZ: Uživatelský manuál SK: Užívateľský manuál PL: Instrukcja obsługi HU: Használati utasítás Ver. 5/2022...
-
Page 2: Table Of Contents
IV. Using iGET HOME APP 4.1 Download APP – iGET HOME 4.2 APP Sign up & Login 4.3 Connect panel to iGET HOME APP 4.4 User interface of iGET HOME APP 4.5 Setting Accessories on iGET HOME APP V. Troubleshooting and Maintenance... -
Page 3: General Description
I. General Description Welcome to use the smart security system kit, your home security is the direction of our efforts. The security panel is embedded with a high-performance and low-power intelligent microprocessor, adopts a 4.3-inch IPS color screen, and uses capacitive touch control. The security panel can be wirelessly connected to motion detectors, door sensors, smoke detectors, gas detectors, emergency buttons, remote controls and other accessories. - Page 4 Alarm Delay: When the security panel receives the alarm from the detector, the alarm will be delayed for a period of time. During the alarm delay period, the user password can be used to cancel the alarm. Siren Time: The duration of the alarm on the security panel, after which the siren stops sounding. User Password: The default user password is 1234, and the user can customize the user password.
- Page 5 Remote Control: The user can arm and disarm the devices through APP. Tamper switch: There is a device anti-dismantling switch on the back of the security panel, which alarms when the panel is removed by external force. Timer: The user can customize the time when the security panel enters the Away Arm/Stay Arm/ Disarm/ SOS on the APP.
-
Page 6: Security Panel
III. Security Panel 3.1 Main Features (1) Built-in high-performance core processor, the main frequency is up to 600MHz, powerful performance, fast and smooth operation. (2) 4.3-inch IPS color display, wider viewing angle of the screen, better visual experience. (3) With capacitive touch screen, the touch experience is more comfortable. (4) New Xsense UI interactive interface. -
Page 7: Appearance Design
3.2 Appearance Design Indicator: Shines State Flashing State Alarm triggered Yellow/Green Delayed activation Yellow Active Red/Green Delayed alarm Green Inactive Notice: (1) The security panel should be installed as close to each detector as possible to ensure the best wireless communication between the security panel and the detector. (2) Since the security panel and the detector use wireless communication, the installation location should be as far away as possible from household appliances with high frequency interference or heavy doors that are difficult to penetrate. -
Page 8: Functions
3.3 Functions 3.3.1 User Interface ①Time 24-hour time is displayed ②SMS Sending SMS ②Call Calling Emergency number Indicates the strength of WIFI signal ③WiFi signal Full gray means no WiFi signal Status Bar The SIM card is not inserted or inserted incorrectly ④2G signal Indicates the strength of 2G signal Full gray means no 2G signal... -
Page 9: Menu Introduction
⑩Disarm The pattern is always in white. ⑪Menu Click to view the security panel menu Click to view the armed records and alarm records, the red dot in the ⑫Log upper right corner indicates that there are new unchecked records 3.3.2 Menu Introduction Detector Edit all detectors... - Page 10 Range: off or on; Default: Off Turn on/off the delay beep. Delay beep Range: off or on; Default: On Door/Window Turn on/off the chime function opened chime Range: off or on; Default: Off Turn on/off the warning. Need door sensor Door/Window to support this function opened warning...
-
Page 11: Specification
Polski / Nederlands / 简体中文 Recover Security panel reset to factory settings Recover Reboot Restart the security panel Select this mode when the device screen Clean needs to be cleaned, all keys fail for one minute to prevent false triggering User manual QR code: Scan the QR code to view the Chinese/English manual Help... -
Page 12: Using Iget Home App
Obchod iOS Store 4.2 APP Sign up & Login (1) When the user uses the iGET HOME APP for the first time, the APP will pop up "Login In" and "Sign Up" options. (2) The user can register an account by clicking the "Sign Up" option. After clicking " Sign Up ", the "User Agreement and Privacy Policy"... -
Page 13: Connect Panel To Iget Home App
4.3 Connect panel to iGET HOME APP (1) NOTICE: You should connect your mobile phone to the 2.4G WiFi network before using iGET HOME APP to connect the device. (2) Open the "iGET HOME" APP and enter the "Home" interface of the APP. -
Page 14: User Interface Of Iget Home App
4.4 User interface of iGET HOME APP Indicates that the panel is currently powered by external Power External Power Supply power Supply Indicates that the panel is currently powered by the Battery power supply Status built-in battery No Network Indicates that the security panel has no 2G network... -
Page 15: Setting Accessories On Iget Home App
4.5 Setting Accessories on iGET HOME APP The procedure is as follows: Open the APP, click "Accessories", you can view the number of remote controls, detectors, doorbells that have been added, as well as the type and attributes of the defense zone. -
Page 16: Troubleshooting And Maintenance
Troubleshooting and Maintenance Failure The Reason The Solution 1. Low battery 1. Replace the battery of the same model 2. The metal sheet of the battery compartment is 2. Remove rust and dirt from metal sheets Remote control in poor contact or is corroded 3. -
Page 17: Warranty Rules
1. The panel is not armed No emergency 1. Arming the panel 2. No emergency phone number is set call was made 2. Re-set according to the instructions 3. Improper installation of accessories, too far when the alarm 3. Adjust the position of accessories away from the panel was triggered 4. - Page 18 Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on this website www.iget.eu. The warranty period of the product is 24 months, unless stated otherwise. This device can be used in the following countries bellow.
