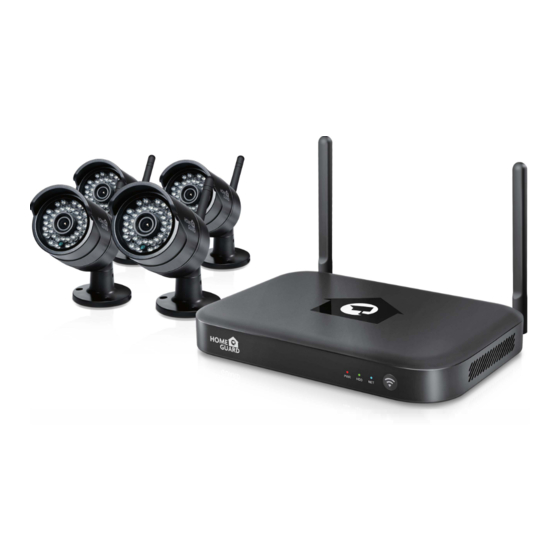

- Page 1 English WIRELESS HD CCTV Kit CMS Software Instruction Manual KIT MODELS HGNVK-48302 / 48304 / 88304 / 88308 www.iget.cz...
-
Page 2: Table Of Contents
Contents 1. Set Up and Login 1.1 Set Up 1.2 Set Up Wizard 1.3 Users Login 2. Real Time Viewing 2.1 Connect / Disconnect 2.2 Recording / Screen Shot 2.3 Panorama Mode 2.4 PTZ Control 2.5 Split Screen Number 2.6 Other Functions 3. -
Page 3: Set Up And Login
1. Set Up and Login 1.1 Set up Step1: run EseeCloud CMS setup.exe install pack. Step2: select a display language. Step3: read and click accept the protocol or not. Step4: select a install path and click install. Step5: click finished and you can run the program. Run the program Select a language read the protocol... -
Page 4: Users Login
Step 3 Step 4 1. Select CMS theme 2. Language / log in options / split screen number / list style / device connection method Local login is a normal mode, user name is admin, default password is empty. • Cloud login can use app user name. -
Page 5: Real Time Viewing
Cloud login User login: enter user name + password, remember the password and auto-login (optional), click login. • Register: 1. Enter a new user name + password + email. 2. Click register. • Retrieve password: 1. Enter user name + email. 2. Click to get the verification code and enter. •... -
Page 6: Recording / Screen Shot
Chart style list 1. After Select device/channel, click play to enter video connecting status. 2. Select device/channel and then click stop to disconnect. 3. Right click connect/disconnect refer to tree style list. Note: Poor computer performance might effect video fluency, We suggest you add device channel step by step. - Page 7 Panorama Mode Cylindrical Mode Unfurled Mode Two-split Screen Mode Four-split Screen Mode Six-split Screen Mode Note: 1. In the panorama mode, you can select 6 display forms, including: panorama, cylinder, expansion, 2 split screen, 4 split screen, 6 screen. 2. The Panorama mode 4 split screen and 6 split screen can make the preset point patrol, you can add the preset position by Operating the left and right click the channel screen.
-
Page 8: Ptz Control
Cruise Mode Speed: the patrol provides 20s, 40s, 60s options, refer to slow / medium / fast speed. • Stop: pause the current patrol statues, Click on the left patrol channel or select the stop button in • Cruise mode. Panorama Mode Installation Mode Cruise Mode... -
Page 9: Split Screen Number
PTZ direction control button Focal Length Adjustment button Aperture Adjustment button Cruise Function button Zoom Adjustment button 2.5 Split Screen Number 1. Client-side provide 1 channel, 4 chanel, 6 channel, 8 channel, 9 channel, 16 channel, 25 channel, 36 channel, 49 channel, 64 channel, those modes can be switched as you like. 2. -
Page 10: Fixed Time Play
Device Channel Video Type Select Date 3.2 Fixed Time Play Fixed time play playback: Select the fixed time play operation, input the video valid time point in the time frame, click ok to play immediately. Time drag playback: Adjust the time scale and drag the cursor on the timeline to the corresponding time (As shown in the 2 figure below). -
Page 11: Other Functions
Define bulk download Select the time period to download 3.5 Other Functions Play control: video playback supports playback / pause / stop control, select the screen form in playback and click operation. Hidden timeline: switching to video playback, the timeline displays a “hide” small key that can be used to hide the timeline when playback. -
Page 12: Modify The Equipment
Manual input addition 4.2 Modify the Equipment Modify the equipment: Under the device management or preview interface, click modify after selecting the device, which will load the modification device interface (As shows in image 1). Regional modify: After selecting the selected area in the device management, click the modify button to load the modified area information interface (As shown in image 2). -
Page 13: Remote Setting
4.3 Remote Setting Setting step: 1. Select device 2. Click setting / Remote setting button (Refer image 1, 2). Device Information: Content including device model, device ID, OED serial number, firmware version (provide check the update). Function Setting: Function configuration, tips sound, tips language and display mode, resolution can be set up on here. -
Page 14: User Specifications
1. Create Group 2. Add Channel 3. Change Group 5. User Specifications 5.1 Basic Setting Theme: CMS provides classic theme, modern theme, click application or confirm switch to the corre- sponding theme. Split screen number: the selected split screen number is displayed after login, the CMS provides the split screen 1/4/6/8/9/16/25/36/49/64 Total Ten forms of choose. -
Page 15: Advanced Settings
Path Modification: 1. Screenshot path: Screenshot files save in the snapshot folder by default or can save to other path according to your needs. 2. Local video path: local video kept in the record folder, can choose to save in other path according to own needs. -
Page 16: More Functions
6. More Functions 6.1 User Management Create users: 1. Click the create user. 2. Enter your user name (required) + Remark name (optional). 3. Click confirmation. Modify permissions: Default: Permissions include screenshot, Video, cloud setting, video playback, remote download. Modification: 1. -
Page 17: Log Query
Modify User 6.2 Log Query Query: 1. Confirm start time + ending time 2. Log type (include: alarm log, login log, operation logs) 3. Selected area 4. click query (shows in image 1) Export: 1. Query log 2. Click Export 3. -
Page 18: Electronic Map
Resource information: “user, resource size, resolution, device name, channel, screenshot time, save • location”, including the above contents (as shown in figure 2). Change size: “original size, maximize, magnify, shrink, resource information, delete”, and screenshot • preview status includes can be switched to the above status/function. Video Search : 1. - Page 19 HGNVK8300-4M-230518 | © 2018 HOMEGUARD...
