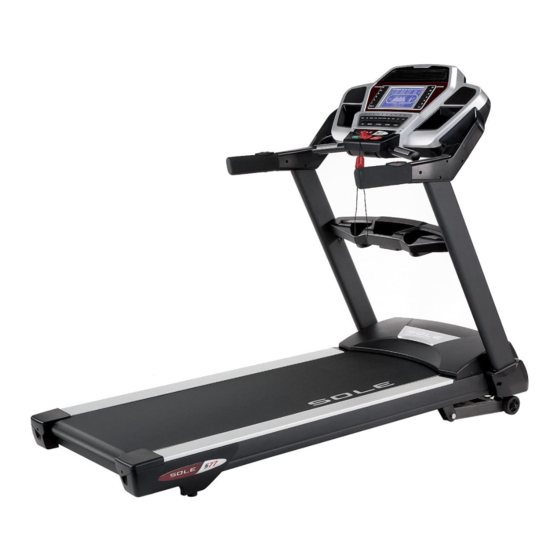

Sole Fitness S77 Owner's Manual
  1. Manuals
  2. Brands
  3. Sole Fitness Manuals
  4. Treadmill
  5. S77
  6. Owner's manual

Sole Fitness S77 Owner's Manual

Hide thumbs Also See for S77:
Table of Contents

Advertisement

Quick Links

Download this manual
























































Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S77 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sole Fitness S77

Summary of Contents for Sole Fitness S77

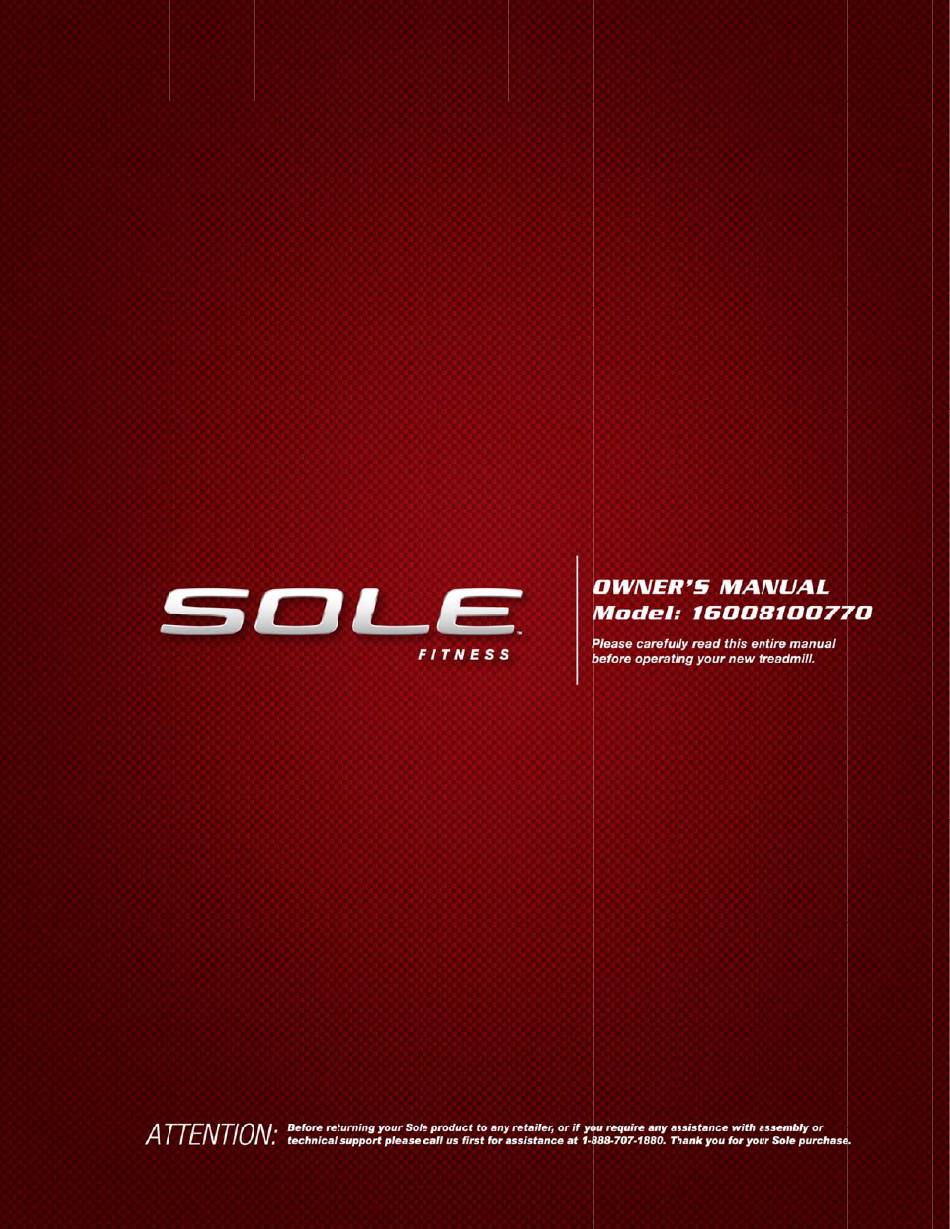

  • Page 1                                                                                  ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS     Product Registration     Important Safety Instructions     Important Electrical Instructions     Important Operation Instructions     Assembly instructions     Transport Instructions     Operation of Your New Treadmill     General Maintenance  ...

  • Page 3: Product Registration

                      CONGRATU ULATIONS ON YOUR N NEW TREA DMILL, AN D WELCOM ME TO THE SOLE FAM MILY! Thank you f for your pur rchase of th his quality tr readmill fro om Dyaco C anada Inc.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this equipment. DANGER - To reduce the risk of electric shock, disconnect your SOLE treadmill from the electrical outlet before cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet with only the treadmill plugged into the circuit.

  • Page 5: Important Electrical Instructions

    IMPO ORTA NT EL LECTR RICAL L INS TRUC CTION WARNIN NEVER r remove any y cover with hout first dis sconnecting g AC power r. If voltage varies by te en percent (10%) or more, the p performanc ce of your tr readmill ma ay be affect ed.

  • Page 6: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS  NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer.  Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key. The computer will obey the command gradually.
  • Page 7 PREVENTATIVE MAINTENANCE CHART       Vacuum Under         Motor Cover & Clean & Inspect Deck Lubricate Deck Inspect Belt   Check Wiring for Lubrication (Every 90 hours Tracking (Monthly) Date (Every Other) or sooner if dry) Adjust if necessary (Every Other) Month)
  • Page 8 S77 ASSEMBLY PACK CHECKLIST HARDWARE STEP 3       #79. Ø3/8"× Ø19 × 1.5T_ #86. Ø10 × 1.5T_ #124. Ø8 × 23 × 1.5T_     Flat Washer (6 pcs) Split Washer (6 pcs) Curved Washer (4 pcs)  ...
  • Page 9 HARDWARE STEP 8     #134. M5×10L Button Head Socket Bolt (4 pcs)   HARDWARE STEP 9     #125. 3.5 × 16m/m_   Sheet Metal Screw (4 pcs)     ASSEMBLY TOOLS   #103. Combination M5 Allen Wrench #104. M6 L Allen Wrench  ...

  • Page 10: Assembly Instructions

    S77 ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 1                           1. Remove the treadmill from the carton and position it aside on a   smooth, level floor. The rear should be at least 3’ from any wall.
  • Page 11       ASSEMBLY STEP 3 HARDWARE STEP 3 #79. Ø3/8"× Ø19 × 1.5T_ Flat Washer (6 pcs) #86. Ø10 × 1.5T_ Split Washer (6 pcs) #100. 5/16" × 3/4"_Button Head Socket Bolt (4 pcs) #123. 3/8" × 2-1/2"_Button Head Socket Bolt (6 pcs) #124.
  • Page 12       ASSEMBLY STEP 5 HARDWARE STEP 5 #91. 3/8” x 1-3/4” Button Head Socket Bolts (4 pcs) #86. Ø 10 x 1.5T Split Washers (4 pcs)                          ...
  • Page 13       ASSEMBLY STEP 7 HARDWARE STEP 7 #100. 5/16” x 3/4” Button Head Socket Bolts (4 pcs) #62. Safety Key                         1. Attach the Handrail Support (3) between the upright tubes (4 &  ...

  • Page 14: Transport Instructions

    ASSEM MBLY ST TEP 9 HARDW WARE STEP 9   #125. 3.5 5 × 16mm_ Sheet Me etal Screw (4 pc sert Tablet Holder (177 7) into the C Console Ass sembly (36) ) and use ombination M5 Allen W Wrench &...

  • Page 15: Operation Of Your New Treadmill

    OPER RATIO ON OF F YOU UR TR READ MILL GETTING FAMILIAR WITH THE CONTROL PANEL S77 TO OUCHS CREEN CONSO       COOLING FAN   SPEAKER     CHARGE PORTABL   DEVICES WITH US SB PORT    ...
  • Page 16 Starting the operation  Plug in the power cord and switch on the main power switch located at the front, on the frame of the treadmill and make sure that the safety key is put on as the treadmill is unable to operate without the safety key.
  • Page 17 TOUC HSCRE EN OPE ERATIO SOLE+ A Please sc can QR code e with your  SOLE+ app  to create a  profile base ed on your a account dat ta.    Set Up Once the e infotainm ent system is powered d on, choose e WiFi netw work or skip by pressing g “Back”. Without WiFi, saving g workout d...
  • Page 18 Pair HR device Adj just WiFi Activity Curre on/off volu setti overvie user Log out Workou mode   mescreen Profile Workout nternet creen Sett t ings programs programs & & Apps asting Customer Ser vice 1‐888‐70 07‐1880  Email: custom merservice@dy yaco.ca ...
  • Page 19 Workout Programs In this section, there are 3 program categories available: Programs (programs with predefined speed and incline changing profiles), Fitness Tests and Templates (regular programs, saved with your personal adjustments). Tap on the workout categories to switch between them. To get more info on each program, tap on the program preview.
  • Page 20       hen all the adjustmen n ts are don ne, press “S S tart” to begin the w w orkout.   Customer Ser vice 1‐888‐70 07‐1880  Email: custom merservice@dy yaco.ca ...
  • Page 21 The preset program speed and incline levels are shown in the CHART BELOW. The Speed numbers shown in the chart indicate a percentage of the top speed of the program. For instance, the first Speed setting for program HILL shows the number 20. This means that this segment of the program will have a speed that is 20% of the top speed for the program.
  • Page 22 THE DAT TA SHOWN N DURING THE TEST a. Time e indicates t total elaps ed time. b. Inclin ne in perce nt grade. c. Dista ance in Mile es or Kilome eters depen nding on p reset param meter. d.
  • Page 23 Internet t & Apps In this se ection, there e is a variety y of third-pa arty apps fo or you to us se while wo orking out. To use th em, connect t to the WiFi and choose e the app ico on.
  • Page 24 Settings Tap on U UNITS to swi itch betwee en imperial and metric c unit system Tap on W WiFi for inte ernet conne ction settin ngs. Tap on DATE or TIM ME to chang ge the mac hine time settings.
  • Page 25   After the e workout i s finished, the workou ut summary y will appea ar. Slide to the left to get more details, o or press “D Done” to go o back to t the Homes screen. You u can also s save the co ompleted program...
  • Page 26 Charge Portable Devices with USB port   USB Port Charging function: Charge your personal device during your workout using the fitness equipment’s on-console USB port. To charge your mobile electronics make sure the fitness equipment power is on. Step 1: Connect your USB charging cable (not included) to the USB Power Port and to your device.
  • Page 27 TARGET HEART RATE The old motto, “no pain, no gain,” is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their choice of exercise intensity is either too high or too low, and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
  • Page 28 USING A HEART RATE TRANSMITTER How to wear a wireless chest strap transmitter: 1. Attach the transmitter to the elastic strap using the locking parts. 2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.

  • Page 29: General Maintenance

    HEART RATE CONTROL PROGRAM Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone. The HRC program automatically changes elevation gradually to achieve the programmed target heart rate. You have the option, during the setup mode, to choose either the HR program.
  • Page 30     DO NOT T OVERTIGH HTEN – Ove er tightenin g will cause be elt damage and prema ture bearin g failure. Note: Ad djustment is thro ough small hole e in end If you tig ghten the b belt a lot and d it still slip s, the...
  • Page 31 The walking belt on your new Sole treadmill is made of the highest quality materials designed to last even under punishing conditions. When a treadmill belt is brand new and has been in the package for a few months before use, a common occurrence can happen; the area of the belt that wraps around the rollers will take on the shape of the roller.
  • Page 32 Do not lubricate with anything other than Sole Fitness-approved lubricant. Your treadmill comes with one tube of “Lube,” and extra tubes can be ordered directly from Sole Fitness or your authorized Sole Fitness dealer. You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.

  • Page 33: Service Checklist - Diagnosis Guide

    SERVICE CHECKLIST - DIAGNOSIS GUIDE Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty.     PROBLEM SOLUTION/CAUSE  ...
  • Page 34 ERROR MESSAGES FOR DIGITAL- CONTROL SYSTEM TREADMILLS ERROR MEANING POSSIBLE CAUSE Console showing E1 No motor output 1. Does motor run after “Start” button is signal pressed? 2. Check if speed sensor is defective. 3. Check if the cable connecting the console and controller is connected properly.

  • Page 35: Exploded View Diagram

    EXPLODED VIEW DIAGRAM  Customer Service 1‐888‐707‐1880  Email: customerservice@dyaco.ca ...

  • Page 36: Parts List

      PARTS LIST Key  Part Part Description Q’ty 1  AA010272‐Q2  Main Frame 2  CRAA030033‐Q2 Incline Bracket 3  AA060039‐Q2   Handrail Support 4  CRAA040242‐Q2   Right Upright 5  CRAA040243‐Q2 Left Upright 6  CRAA050130‐Q2 Console Support 7  B130048‐Q2 Gusset ( L )   8  B130049‐Q2 Gusset ( R )  ...
  • Page 37 Key  Part Part Description Q’ty 48  E030227  400m/m_Handpulse Wire 49‐1  F090242 400m/m_Handpulse W/Cable Assembly(L)   49‐2  F090243 400m/m_Handpulse W/Cable Assembly(R)   50  P010151‐A1 Front Motor Cover   51  P060021‐A1 Motor Cover Anchor(D)   52  P020539‐A1 Console Mast Cover-L   53  P020540‐A1 Console Mast Cover-R  ...
  • Page 38   Key  Part Part Description Q’ty 104  J330002‐Y3   M6_L Allen Wrench 106  J129021‐Y3   3/8" × 7T_Nut 109  P040039‐A1   Square End Cap 110  B070005‐Q2   Controller Back Plate 115  J270001‐Z1   M5_Star Washer 116  E090001   400m/m_Audio Cable 117 ...

  • Page 39: Manufacturer's Limited Warranty

    TREADMILL WARRANTY  Dyaco Canada Inc. warrants all its Sole treadmills’ parts, for a period of time listed below, from the date of retail sale, as determined by sale  receipt. Dyaco Canada Inc.’s responsibilities include providing new or remanufactured parts at Dyaco Canada Inc.’s option and technical support to  our independent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by  Dyaco Canada Inc. directly to a consumer. The warranty period applies to the following components:  Drive Motor                      Lifetime  Deck                                   Lifetime                 All Other Components     5 Years                 Frame Weldments            Lifetime  Labour                                2 Years  Cosmetic ltems*               90 Days        *Cosmetic items including, but not limited to the following: grips, console overlays, and labels/decals    NORMAL RESPONSIBILITIES OF THE CONSUMER  This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:  1. The warranty registration can be completed online: Go to www.dyaco.ca/warranty.html and complete the online warranty registration.  2. Proper use of the treadmill in accordance with the instructions provided in this manual, including belt tracking.  3. Proper installation in accordance with instructions provided with the treadmill and with all local electric codes.  4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in  house wiring.  5. Expenses for making the treadmill accessible for servicing, including any item that was not part of the treadmill at the time it was shipped from  the factory.  6. Damages to the treadmill finish during shipping, installation or following installation.  7. Routine maintenance of this unit as specified in this manual.  EXCLUSIONS  This warranty does not cover the following:  1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES  RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.  Note: Some areas do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.  2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in  workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for  treadmills not requiring component replacement or treadmills not in ordinary household use.  3. Damages caused by services performed by persons other than authorized Dyaco Canada Inc. service companies; use of parts other than original  Dyaco Canada Inc. parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modifications, abuse, misuse,  accident, improper maintenance, inadequate power supply, or acts of God.  4. Products with original serial numbers that have been removed or altered.  5. Products that have been: sold, transferred, bartered, or given to a third party.  6. Products that do not have a warranty registration card on file at Dyaco Canada Inc. Dyaco Canada Inc. reserves the right to request proof of  purchase if no warranty record exists for the product.  7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF  MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. ...
  • Page 40     Customer Ser rvice 1‐888‐70 07‐1880  Email: custom merservice@d yaco.ca ...
  • Page 41                                                                                  ...
