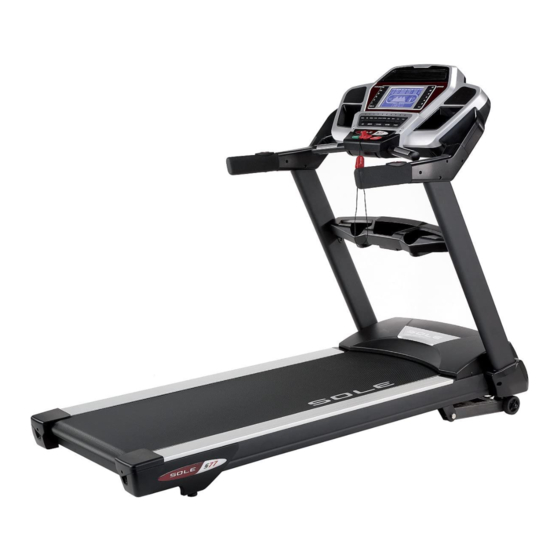

Sole Fitness s77 Owner's Manual
  1. Manuals
  2. Brands
  3. Sole Fitness Manuals
  4. Treadmill
  5. S77
  6. Owner's manual

Sole Fitness s77 Owner's Manual

Hide thumbs Also See for s77:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING
YOUR NEW TREADMILL!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the s77 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sole Fitness s77

Summary of Contents for Sole Fitness s77

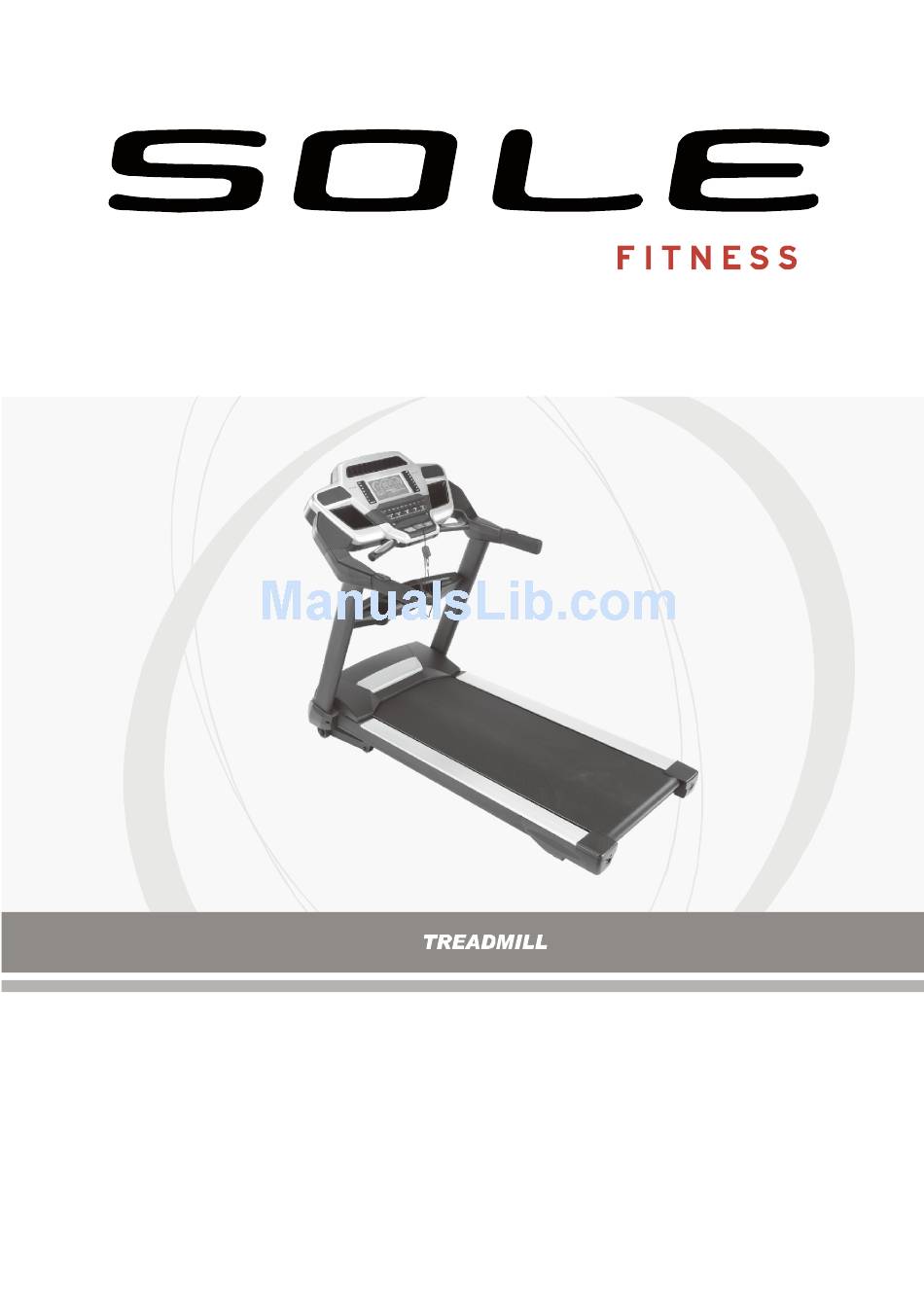

  • Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Transport Instructions Operation of Your New Treadmill Programmable Features Using Heart Rate Transmitter General Maintenance Service Checklist - Diagnosis Guide Exploded View Diagram Parts List ST720-YT52_1404(SL)A...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 230-volt, 10-amp grounded outlet with only the treadmill plugged into the circuit.

  • Page 4: Important Electrical Information

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.

  • Page 5: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer. Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key. The computer will obey the command gradually.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS READ BEFORE UNPACKING YOUR FOLDING TREADMILL Serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping. If this strap is not removed properly the treadmill could spring open unexpectedly and cause injury if someone is standing near the treadmill when the strap is removed.

  • Page 7: Hardware Step

    ASSEMBLY PACK CHECKLIST HARDWARE STEP 3 #79. Ø10mm × Ø19mm × 1.5T #86. 3/8” x 2T #100. 5/16” x 3/4” Button Flat Washer (6 pcs) Split Washer (6 pcs) Head Socket Bolt (4 pcs) #123. 3/8” x 2-1/2” Button #124. Ø8mm × Ø23mm × 1.5T Head Socket Bolt (6 pcs) Curved Washer (4 pcs) HARDWARE STEP 5...
  • Page 8 HARDWARE STEP 8 #127. M5 × 10m/m Phillips Head Screw (4 pcs) ASSEMBLY TOOLS #103. Combination M5 Allen Wrench & Phillips Head Screw Driver #104. M6 L Allen Wrench...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 1 1. Remove the treadmill from the carton and position it aside on a smooth, level floor. The rear should be at least 3’ from any wall. Do not remove the Velcro belt until you have removed the plastic wrap and Styrofoam from beneath the unit.

  • Page 10: Assembly Step

    ASSEMBLY STEP 3 HARDWARE STEP 3 #79. Ø10mm × Ø19mm× 1.5T Flat Washer (6 pcs) #86. 3/8” x 2T Split Washer (6 pcs) #100. 5/16” x 3/4” Button Head Socket Bolt (4 pcs) #123. 3/8” x 2-1/2” Button Head Socket Bolt (6 pcs) #124.
  • Page 11 ASSEMBLY STEP 5 HARDWARE STEP 5 #86. 3/8” x 2T Split Washer (4 pcs) #91. 3/8” x 1-3/4” Button Head Socket Bolt (4 pcs) Attach the Console Assembly (36) onto the uprights (5 & 4) with two Button Head Socket Bolts (91) and two Split Washers (86) on each side.
  • Page 12 ASSEMBLY STEP 7 HARDWARE STEP 7 #100. 5/16” x 3/4” Button Head Socket Bolts (4 pcs) Install Handrail Support (3) between right and left Uprights (4) and (5) and use the Combination M5 L Allen Wrench & Phillips Head Screw Driver (103) to tighten the four Button Head Socket Bolts (100).

  • Page 13: Transport Instructions

    TRANSPORTATION INSTRUCTIONS The treadmill is equipped with transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away.

  • Page 14: Operation Of Your New Treadmill

    OPERATION OF YOUR TREADMILL GETTING FAMILIAR WITH THE CONTROL PANEL CONSOLE COOLING FANS INCLINE QUICK SPEED QUICK KEYS SPEAKER SPEAKER FAN POWER SWITCH DOT MATRIX DISPLAY BUTTON DISPLAY CONTROL KEYS AUDIO IN JACK HEADPHONE (MP3, CD, OR JACK SMARTPHONE) CONTACT HEART RATE SENSORS GETTING STARTED Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the...

  • Page 15: Incline Feature

    QUICK-START OPERATION 1. Attach the Safety Key to wake display up (if not already on). 2. Press the Start key to begin belt movement then adjust to the desired speed using Speed ▲/▼ keys (console or handgrip). You may also use the Quick speed keys 2, 3, 4, 5, 6, 9 or 12 to adjust the speed.
  • Page 16 DOT MATRIX CENTER DISPLAY Twenty four columns of dots (10 high) indicate each segment (speed or incline) of a workout. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity. In Manual Operation the Speed / Incline dot matrix window will build a profile “picture”...
  • Page 17 PULSE FEATURE The Pulse (Heart Rate) Window will display your current heart rate in beats per minute dur- ing the workout. You must use both stainless steel sensors on the front cross bar to display your pulse or wear the wireless chest strap.

  • Page 18: Programmable Features

    PROGRAMMABLE FEATURES The has ten built-in programs: one Manual program, five preset profiles, two user defined programs (U1 & U2) and two Heart Rate programs (HR1 & HR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill. The workload will steadily increase and then decrease during the program.
  • Page 19 SELECTING A PROGRAM Press the Program keys to view the programs on the screen then press the Enter key to select the program you would like to perform. The display will prompt you through the programming steps or you can just press the Start key to begin the program using the preset program values for age, weight and other program specific information.
  • Page 20 USER PROGRAMS 1. Select User 1 or User 2 via the Program keys then press Enter. Note that the dot matrix display portion will have a single row of dots at the bottom (Unless there is a previously stored program). If there is a program stored under the button that is pressed, it will be retrieved.

  • Page 21: Heart Rate Programs

    HEART RATE PROGRAMS Before we get started, a word about Heart Rate: The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
  • Page 22 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.

  • Page 23: Using Heart Rate Transmitter

    USING HEART RATE TRANSMITTER (Optional) How to wear your wireless chest strap transmitter: 1. Attach the transmitter to the elastic strap using the locking parts. 2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.
  • Page 24 HEART RATE PROGRAMMING CAUTION! Heart Rate programs are intended for wireless transmitter chest strap. Do not use Pulse Grip bar for Heart Rate. You must receive a strong/steady value in the Heart Rate Window (See Using Heart Rate Transmitter section for instructions on how to use). The HR1 program has a default level that is 60% of your projected heart rate maximum.

  • Page 25: General Maintenance

    GENERAL MAINTENANCE BELT & DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge.
  • Page 26 TREAD-BELT TRACKING ADJUSTMENT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.
  • Page 27 Do not lubricate with anything other than Sole Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from Sole Fitness or your authorized Sole Fitness dealer. You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.

  • Page 28: Service Checklist - Diagnosis Guide

    SERVICE CHECKLIST - DIAGNOSIS GUIDE Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. PROBLEM SOLUTION/CAUSE 1.

  • Page 29: Calibration Procedure

    CALIBRATION PROCEDURE 1. Remove the Safety Key. 2. Press and hold down the Start and Speed ▲ buttons and replace the Safety Key. Continue to hold the Start and Speed ▲ key until the window displays “Factory settings”, then press the Enter key.

  • Page 30: Exploded View Diagram

    EXPLODED VIEW DIAGRAM...

  • Page 31: Parts List

    PARTS LIST Part Number Part Description Qty per unit Main Frame Incline Bracket Handrail Support Right Upright Left Upright Console Support Gusset (L) Gusset (R) Drive Belt Front Roller W/Pulley 10~3 Magnet Rear Roller Running Deck Running Belt PVC Handgrip Deck Cross Brace Wire Tie Mount Lubricant...
  • Page 32 Part Number Part Description Qty per unit 36~10 START Key Console Display Board 36~12 Front Console Cover (Top) 36~17 36~18 Front Console Cover (Bottom) 36~19 300m/m_Safety Switch Module W/ Cable 36~20 Fan Assembly(Optional) 36~21 Deflector Fan Grill 36~22 Fan Grill Anchor 36~23 550m/m_Speaker W/Cable(Optional) 36~24...
  • Page 33 Part Number Part Description Qty per unit Rear Adjustment Base (L) Rear Adjustment Base (R) Ø24 × Ø10 × 3T_Nylon Washer (A) Ø50 × Ø13 × 3T_Nylon Washer (B) Adjustment Foot Pad Top Motor Cover Plate Trapezoidal Safety Key Belt Guide 1/2"...
  • Page 34 Part Number Part Description Qty per unit 3/8"_Nut 3 × 8m/m_Sheet Metal Screw Ø13m/m_Bolt Cap 25m/m × 50m/m_Square End Cap Controller Back Plate Left Handgrip Side Cap (Top) Left Handgrip Side Cap (Bottom) Right Handgrip Side Cap (Top) Right Handgrip Side Cap (Bottom) Chest Strap(Optional) 400m/m_Audio Cable(Optional) Speaker Grill Anchor(Optional)
