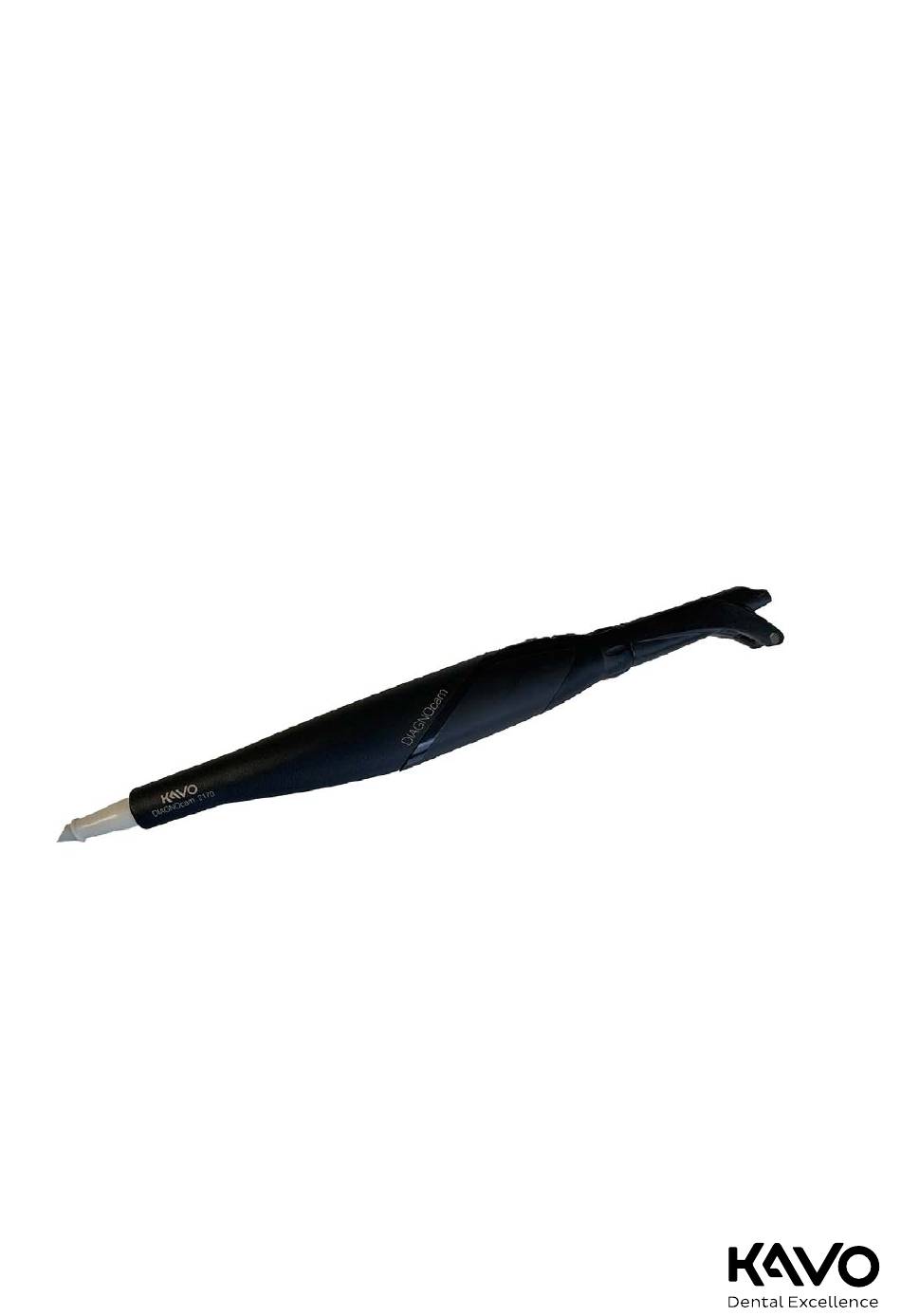

- Page 1 Instructions for use DIAGNOcam 2170 U...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use DIAGNOcam 2170 U Table of contents Table of contents 1 User instructions ........................ 5 1.1 User guide ........................5 1.1.1 Abbreviations..................... 1.1.2 Symbols......................5 1.1.3 Target group ..................... 1.1.4 Service ......................6 1.1.5 Terms and conditions of warranty ............... - Page 4 Instructions for use DIAGNOcam 2170 U Table of contents 6.3 Manual cleaning ......................27 6.4 Machine cleaning ......................28 6.5 Disinfection ........................28 6.5.1 Manual disinfection..................... 28 6.5.2 Automated disinfection ..................28 6.6 Sterilisation........................28 6.7 Control and functional checks ..................29 6.7.1...
-
Page 5: User Instructions
Instructions for use DIAGNOcam 2170 U 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. 1.1.1 Abbreviations Explanation brevi- ation Instructions for use... -
Page 6: Service
1.1.5 Terms and conditions of warranty KaVo provides the final customer with a warranty that the product cited in the handover certificate will function properly and guarantees zero defects in the material or processing for a period of 12 months from data of purchase, subject... -
Page 7: Safety
Instructions for use DIAGNOcam 2170 U 2 Safety | 2.1 Protective equipment 2 Safety Note All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides. -
Page 8: Purpose - Intended Use
KaVo product for the intended indications for use must be applied and followed. This KaVo product is intended for use in dentistry only. Any other type of use is not permitted. -
Page 9: Safety Instructions
KaVo recommends daily back-up. Note For security reasons the database and all document files should be backed up regularly (KaVo recommends every working day). A data backup schedule should be prepared. 2.4.2 Backup copies Such a copy is also called a backup. It should not be confused with the export of data. -
Page 10: Disposal Of Electronic And Electrical Devices
Instructions for use DIAGNOcam 2170 U 2 Safety | 2.5 Disposal of electronic and electrical devices Note A hard disk failure can also occur during a backup. KaVo recommends: Never overwrite the current backup copy. Note The computer technician/system administrator of your office is familiar with the current technology for backup copies and making backups. -
Page 11: Current Packaging Law
Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system. - Page 12 Instructions for use DIAGNOcam 2170 U 2 Safety | 2.6 Safety instructions CAUTION Risk of infection due to soiled or contaminated DIAGNOcam. Infection. ▶ Recondition the DIAGNOcam handpiece and tips after use. CAUTION Risk of laceration from improper use Laceration ▶...
-
Page 13: Description Of The Product
Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.1 System components 3 Description of the product The DIAGNOcam is a mobile device that is delivered with a firmware for the treatment centre for controlling the camera functions and a computer-based image processing software for showing / displaying, storing / saving the im- ages, and for optional recording of live streams. -
Page 14: Handpiece With Attached Tip
Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.1 System components 3.1.2 Handpiece with attached tip ① Occlusal tip ④ Control button 2 ② Ring switch ⑤ Handpiece ③ Control button 1 ⑥ USB 2.0 cable with anti-kink sleeve and DC/DC voltage transformer 3.1.3 Occlusal tip (Tip large, Tip small) -
Page 15: Operating Buttons And Ring Switch
Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.2 Operating buttons and ring switch ① Aperture for laser beam 3.2 Operating buttons and ring switch The ring switch ③ with six positions can be used to generate still in all relevant positions. -
Page 16: Symbols On Product And Rating Plate
Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.3 Symbols on product and rating plate Actuation Ring switch ③ Function Briefly when the device is turned on Create still images that are automatic- ally saved Long Laser and camera are being turned off Pressing Control button 1④... -
Page 17: Technical Specifications
Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.4 Technical Specifications Classification (applied part type BF) Labelling according to 2002/96/EC Can be sterilised with steam at 134 °C -1 °C / +4 °C (273 °F -1.6 °F / +7.4 °F) - Page 18 Instructions for use DIAGNOcam 2170 U 3 Description of the product | 3.4 Technical Specifications Optical system Image angle Viewing direction Focusing distance 4.5 mm Operating conditions Ambient temperature +10 to + 30 Air pressure 800 to 1060 hPa Rel. humidity 5% to 95% non-condensing Max.
-
Page 19: Commissioning
The distance between the PC and camera cable (floor terminal box) must not exceed 10 m. High-quality, active USB extension (maximum 5 m long each) must be used. (KaVo recommends one or two USB extensions 5m Mat. no. 1.004.6953) 4.1 Connecting the camera 4.1.1 Dentist element... -
Page 20: Carry Out A Safety Check
Instructions for use DIAGNOcam 2170 U 4 Commissioning | 4.2 Carry out a safety check. CAUTION Wrong insertion into the USB socket. USB - plug can only be inserted into the correct position. Forceful insertion leads to destruction of the plug. -
Page 21: Operation
Instructions for use DIAGNOcam 2170 U 5 Operation | 5.1 Attach and remove a tip 5 Operation 5.1 Attach and remove a tip Slide the tip onto the handpiece CAUTION Attaching the tip misaligned Damage to the unit ▶ When attaching the probe, make sure that the inner lug of the tip mates with the opening in the forked light barriers. - Page 22 Instructions for use DIAGNOcam 2170 U 5 Operation | 5.1 Attach and remove a tip Pulling the tip off the handpiece Note Tips must not be removed by being twisted. Removing the tip, do not touch the control buttons. ▶ Pull the tip off the handpiece by applying a moderate amount of force; pull with your left hand and push slightly with your right thumb.
-
Page 23: Turning On/Off
Instructions for use DIAGNOcam 2170 U 5 Operation | 5.2 Turning on/off 5.2 Turning on/off WARNING Blinding hazard from invisible laser. Eye damage. ▶ Do not point the device toward the eyes when the laser is active! ▶ Do not operate the device when the housing is damaged or opened. -
Page 24: Software
The distance between the PC and camera cable (floor terminal box) must not exceed 10 m. High-quality, active USB extension (maximum 5 m long each) must be used. (KaVo recommends one or two USB extensions 5m Mat. no. 1.004.6953) 24 / 38... -
Page 25: Switching The Camera On And Off
5 Operation | 5.5 Determining findings and diagnosis Note The DIAGNOcam 2170 U is operated with the KaVo CONEXIO software. In order to use CONEXIO, it must be installed on a work computer. ▶ You will find details in the CONEXIO installation instructions. - Page 26 Instructions for use DIAGNOcam 2170 U 5 Operation | 5.5 Determining findings and diagnosis The dark shades in the picture may be interpreted as carious changes. ▶ To secure the diagnosis, use additional diagnostic means such as the DIAGNOdent pen 2190.
-
Page 27: Reprocessing Methods According To Iso 17664
Instructions for use DIAGNOcam 2170 U 6 Reprocessing methods according to ISO 17664 | 6.1 Preparations for cleaning 6 Reprocessing methods according to ISO 17664 The listed instructions for cleaning and sterilising were validated as being suit- able by the medical device manufacturer for preparing a medical device. This usually requires validation and routine monitoring of the procedure. -
Page 28: Machine Cleaning
CAUTION Material damage caused by spray disinfection. ▶ Do not subject the DIAGNOcam to spray disinfection. KaVo recommends the following products based on material compatibility. The microbiological efficacy must be ensured by the disinfectant manufacturer. Approved disinfectants: ▪ CaviWipes and CaviCide made by Metrex (intermediate disinfection) ▪... -
Page 29: Control And Functional Checks
Only the tips can be sterilised. Sterilisation should directly follow cleaning and disinfection. Bag the tips prior to sterilisation. The KaVo products released for sterilisation have a maximum temperature res- istance of 138℃. ▶ Sterilising the probes in an autoclave:... -
Page 30: Troubleshooting
▶ Immediately notify your KaVo contact! Note Occasionally, after installation of the DIAGNOcam software, there may be some interference with an already installed intraoral camera. In this case, please contact the KaVo Service Hotline phone: +49 7351 - 56 2700, or service.Multimedia@kavo.com. 30 / 38... -
Page 31: Accessories
Instructions for use DIAGNOcam 2170 U 8 Accessories 8 Accessories 1.005.1300 Tip large 1.005.1360 Tip small 31 / 38... -
Page 32: Information Concerning The Electromagnetic Compatibility According To En Iec 60601-1-2
EN IEC 60601-1-2 9.1 Electromagnetic Transmissions The DIAGNOcam 2170 U is designed for use in an environment of the kind spe- cified below. The customer or the user of the DIAGNOcam 2170 U should en- sure that the device is used in an environment of the specified type. -
Page 33: Immunity To Electromagnetic Interference
9.3 Immunity to electromagnetic interference The DIAGNOcam 2170 U is designed for use in an environment of the kind spe- cified below. The customer or the user of the DIAGNOcam 2170 U should en- sure that the device is used in an environment of the specified type. - Page 34 A site study should be considered to determine the electromagnetic environment in terms of stationary transmitters. If the meas- ured field strength at the site, at which the DIAGNOcam 2170 U is used, ex- ceeds the compliance levels shown above, the DIAGNOcam 2170 U should be monitored to demonstrate proper function.
-
Page 35: Recommended Safe Distance Between Portable And Mobile Hf Telecommunications Equipment And The Treatment Unit
HF telecommunications equipment and the treatment unit The DIAGNOcam 2170 U is intended for use in an electromagnetic environment in which the HF interference parameters are controlled. The customer or the user of the DIAGNOcam 2170 U can help prevent electromagnetic interference...
