Summary of Contents for KaVo GENTLEpower LUX Contra-angle 25 LP

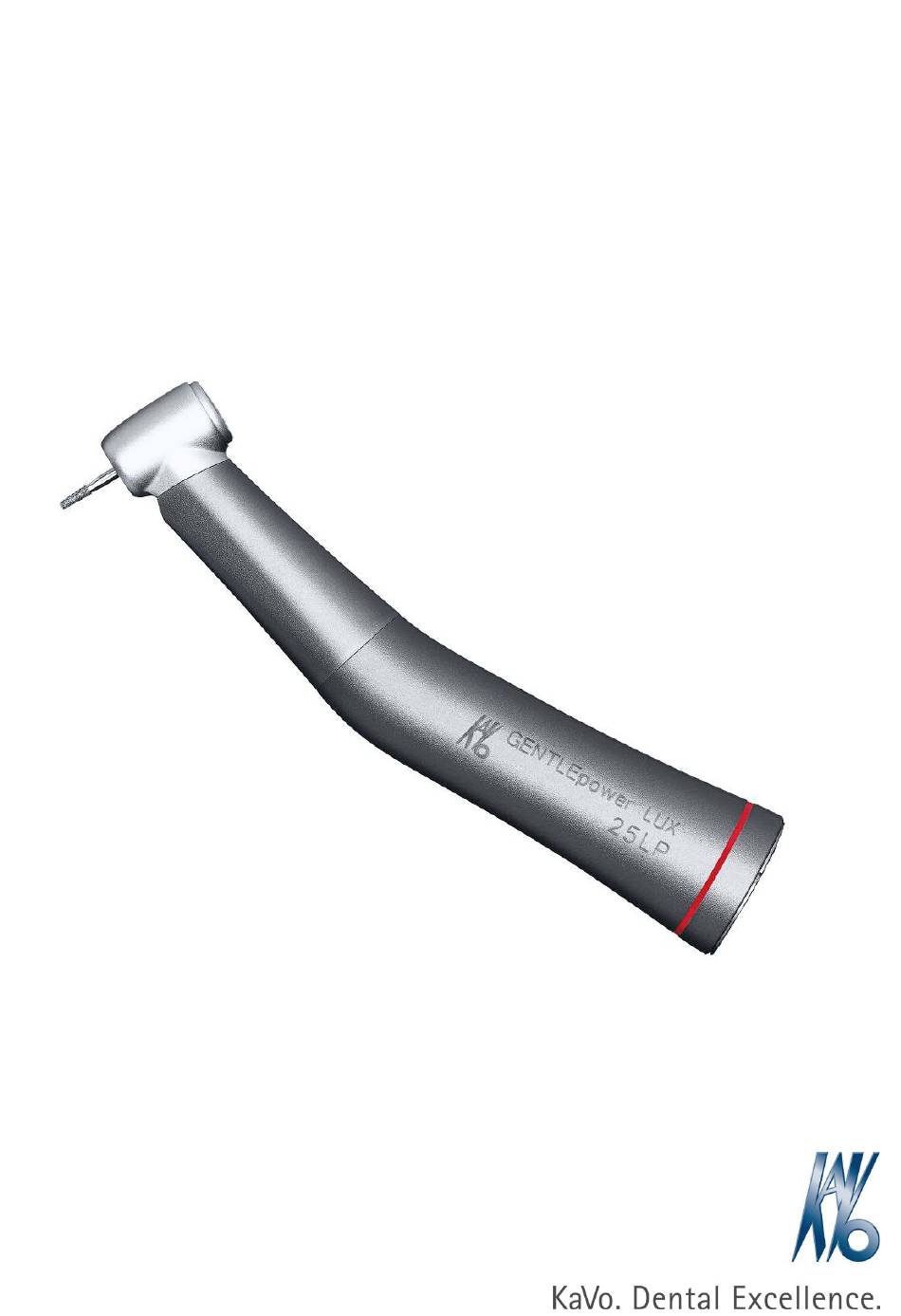

- Page 1 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...
-
Page 3: Table Of Contents
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 Table of contents Table of contents 1 User instructions .............................. 4 1.1 User guide..............................4 1.1.1 Abbreviations..........................4 1.1.2 Symbols............................4 1.1.3 Target group..........................4 1.1.4 Product name..........................4 2 Disassembly ..............................5 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP.............. -
Page 4: User Instructions
1.1.2 Symbols Important information for users and service technicians 1.1.3 Target group Note Have any repair and maintenance work on the device performed by KaVo-trained technicians only. 1.1.4 Product name Note The present TI apply to the GENTLEpower LUX contra-angle handpiece 25 LP (Mat. -
Page 5: Disassembly
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 2 Disassembly | 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP 2 Disassembly 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP 2.1.1 Disassembling the head Tool Description Ejector (Mat. -
Page 6: Removing The Insert And Gear From The Elbow Sleeve
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 2 Disassembly | 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP ▶ Pull the head casing ① and the adapter ⑪ forward and out and remove the two balls ⑨. -
Page 7: Disassembling The Bearing Cartridge
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 2 Disassembly | 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP 2.1.3 Disassembling the bearing cartridge Tool Name Tweezers (Mat. no. 0.308.1410) ▶ Pull the intermediate drive ① out of the bearing cartridge ④. -
Page 8: Disassembling The Insert
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 2 Disassembly | 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP 2.1.5 Disassembling the insert Tool Name Wrench (Mat. no. 1.002.0321) ▶ Take out the slide ② and pressure spring ①. - Page 9 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 2 Disassembly | 2.1 Disassembly of the GENTLEpower LUX Angle Piece 25 LP ▶ Pull the fibre-optic conductor ④, spray pipe ② and spray pipe ③ forward and out of the elbow sleeve ⑨.
-
Page 10: Assembly
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP 3 Assembly 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP 3.1.1 Assembly instructions Material numbers for spare parts are listed in the separate spare parts sheet. -
Page 11: Assembling The Axle
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP 3.1.3 Assembling the axle Tool Description Insert for spur gear assembly tool Mount for spur gear assembly tool... -
Page 12: Assembling The Insert
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP 3.1.4 Assembling the insert Tool Name Wrench (Mat. no. 1.002.0321) ▶ Insert the slide ② and pressure spring ①. - Page 13 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP Tool Description Loctite 306 adhesive (Mat. no. 0.359.2044 Note Do not glue spray pipes when gluing the fibre-optic conductor.
-
Page 14: Assembling The Head
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP ▶ Place the contra-angle handpiece in a hot-air furnace and allow the adhesive 30 minutes to set at 120 ▶... - Page 15 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 3 Assembly | 3.1 Assembly of the GENTLEpower LUX Angle Piece 25 LP ▶ Insert the conical spring ⑦ with the larger diameter in the direction of the pushbut‐ ton ⑧ in the head casing ⑤ and push the pushbutton ⑧ down perpendicularly up to the snap-in connection.
-
Page 16: Testing
Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 4 Testing | 4.1 Testing the GENTLEpower LUX Angle Piece 25 LP 4 Testing 4.1 Testing the GENTLEpower LUX Angle Piece 25 LP 4.1.1 Test set-up ① Test device 2182 KL (Mat. no. - Page 17 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 4 Testing | 4.1 Testing the GENTLEpower LUX Angle Piece 25 LP Test equipment Name Retention force gauge (Mat. no. 0.411.4601) Push-button tester (Mat. no. 1.003.3571) Spray test drill (Mat. no. 0.410.1933) Meter tube (Mat.
- Page 18 Technician's instructions GENTLEpower LUX Contra-angle 25 LP - REF 1.001.2849 4 Testing | 4.1 Testing the GENTLEpower LUX Angle Piece 25 LP Testing Test equipment Procedure Check concentricity ▪ Test drill Run the angle piece with test drill off-load at 200,000 rpm.
