- Page 1 Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210...
- Page 2 Distributed by: Manufacturer: KaVo Dental Technologies, LLC Kaltenbach & Voigt GmbH 11727 Fruehauf Drive Bismarckring 39 Charlotte, NC 28273 USA D-88400 Biberach Phone: 847 550 6800 www.kavo.com Fax: 847 550 6825...
-
Page 3: Table Of Contents
7.3 Automated reprocessing ....................21 7.4 Care products and systems - Servicing................21 7.4.1 Servicing with KaVo Spray ................... 22 7.4.2 Servicing with KaVo QUATTROcare PLUS .............. 22 7.5 Packaging ........................23 7.6 Sterilisation........................23 7.7 Storage ........................24 3 / 28... - Page 4 Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 Table of contents 8 Tools and consumables ...................... 25 9 Terms and conditions of warranty ..................26 4 / 28...
-
Page 5: User Instructions
1 User instructions 1 User instructions Dear User Congratulations on purchasing this KaVo quality product. By following the in- structions below you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH Please direct all questions regarding the product, service and maintenance to... - Page 6 Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 1 User instructions Information on the packaging Catalogue number Serial number Legal Manufacturer Please note the electronic instructions for use Note: Please note accompanying documents EAC conformity mark (Eurasian Conformity) GOST R certification Transportation and storage conditions...
- Page 7 Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 1 User instructions NOTICE In cases which – if not prevented – could lead to material damage. 7 / 28...
-
Page 8: Safety
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 2 Safety | 2.1 Infection hazard 2 Safety The instructions for use are a component of the product and must be read care- fully prior to use and be accessible at all times. -
Page 9: Accessories And Combination With Other Equipment
Repairs, servicing and safety checks may only be performed by trained service personnel. The following persons are authorised to do this: ▪ Service technicians of KaVo branches after the appropriate product training ▪ Service technicians of KaVo authorised dealers after the appropriate product... -
Page 10: Product Description

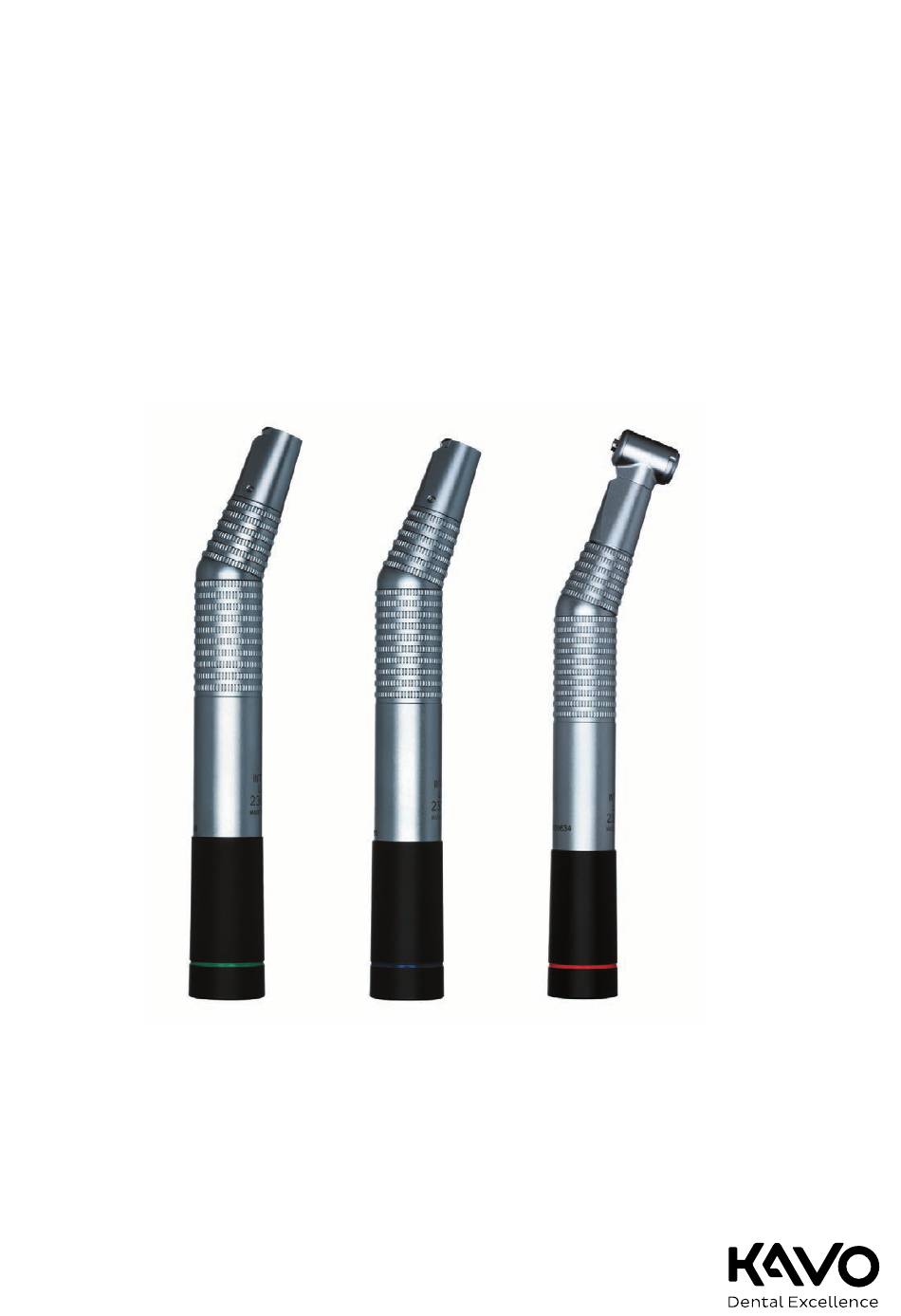

Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 3 Product description | 3.1 Purpose – Intended use 3 Product description INTRAflex LUX base 2307 LN (Mat. no. 0.535.6190) INTRAflex LUX base 2320 LN (Mat. no. 0.535.6180) INTRAflex LUX contra-angle 2325 LN (Mat. -
Page 11: Technical Specifications
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 3 Product description | 3.2 Technical Specifications Proper use: According to these regulations, this product may only be used for the described application by a properly trained user. -
Page 12: Contra-Angle Handpiece 2325 Ln
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 3 Product description | 3.3 Transportation and storage conditions 3.2.3 Contra-angle handpiece 2325 LN Identification 1 red ring Transmission ratio 1 : 4 Drive pressure 2.5 to 3.0 bar (29 to 44 psi) Air consumption... -
Page 13: Start Up And Shut Down
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 4 Start up and shut down | 4.1 Mount the MULTIflex (LUX) / MULTIflex LED coupling 4 Start up and shut down WARNING Hazard from contaminated products. - Page 14 Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 4 Start up and shut down | 4.2 Checking the amount of water 14 / 28...
-
Page 15: Checking The Pressures
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 4 Start up and shut down | 4.3 Checking the pressures 4.3 Checking the pressures NOTICE Contaminated or moist compressed air at the compressed air connec- tion Premature wear ▶... -
Page 16: Operation
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 5 Operation | 5.1 Attaching the medical device 5 Operation Note At the beginning of each workday, the water-conducting systems should be rinsed for at least 2 minutes (without transmission handpieces being at- tached) and if there is a risk of contamination from reflux or back suction, the system may also need to be rinsed for 20 to 30 seconds after each patient. -
Page 17: Removing Intra Lux Head From Shanks 2307 Ln Or 2320 Ln
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 5 Operation | 5.4 Removing INTRA LUX head from shanks 2307 LN or 2320 LN 5.4 Removing INTRA LUX head from shanks 2307 LN or 2320 LN ▶... -
Page 18: Removing The Cutting Tools Or Diamond Grinder From The Contra-Angle 2325 Ln
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 5 Operation | 5.6 Removing the cutting tools or diamond grinder from the contra-angle 2325 LN ▶ Forcefully press the push button with your thumb and simultaneously insert the dental bur or diamond grinder all the way to the stop. -
Page 19: Troubleshooting
▶ Do not use Vaseline or other grease or oil. Note The O-rings on the coupling may only be lubricated with a cotton ball wetted with KaVo Spray. ▶ Press the O-ring between your fingers to form a loop. ▶ Push the O-ring to the front, and remove it. -
Page 20: Reprocessing Steps In Accordance With Iso 17664
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparations at the site of use WARNING Hazard from contaminated products. -
Page 21: Manual Disinfection - External
Defects in the device. ▶ Disinfect manually only! KaVo recommends the following products based on compatibility of the materi- als. The microbiological efficacy must be ensured by the disinfectant manufac- turer and proven by an expert opinion. Approved disinfectants: ▪... -
Page 22: Servicing With Kavo Spray
▶ Remove the tool from the medical device. ▶ Cover the medical device with the KaVo CLEANpac bag, and place it on the corresponding care adapter. ▶ Press the spray key for 1 to 2 seconds. -
Page 23: Packaging
Instructions for use INTRAflex LUX 2 Programm 2307 LN - 0.535.6190, 2320 LN - 0.535.6180, 2325 LN - 0.535.6210 7 Reprocessing steps in accordance with ISO 17664 | 7.5 Packaging KaVo recommends servicing the chuck system once a week using the chuck servicing program integrated in the device. Note Handpieces must be taken off the service couplings before the chuck service can be started and performed. -
Page 24: Storage
Damage to product. ▶ Immediately remove the product from the steam steriliser after the steril- isation cycle. The KaVo medical device has a maximum temperature resistance up to 138 ℃ (280.4 °F). Sterilisation parameters: Select a suitable procedure (depending on the available autoclave) from the fol- lowing sterilisation processes: ▪... - Page 25 Cleanpac 10 units 0.411.9691 Nozzle pin 0.410.0931 Spray repair set 0.410.0610 2163 Material summary Mat. no. KaVo Spray USA and Canada 2113 A 0.411.9660 QUATTROcare plus Spray USA and 1.005.4524 Canada 2141 P Chuck servicing set 1.003.1253 25 / 28...
- Page 26 12 months from the date of the invoice, subject to the following conditions: In case of justified complaints, KaVo will honour its warranty with a free re- placement or repair. Other claims of any kind whatsoever, in particular with re- spect to compensation, are excluded.
