Maintenance
Section 5
5.1 — Component Locations
The side of the enclosure with the viewing window is identified as the rear of the generator set. The right and left sides
are identified by standing at the rear and looking towards the front of the unit.
Main Circuit Breaker
Owner's Manual for Stationary Diesel Generators
Viewing
Window
Left Side

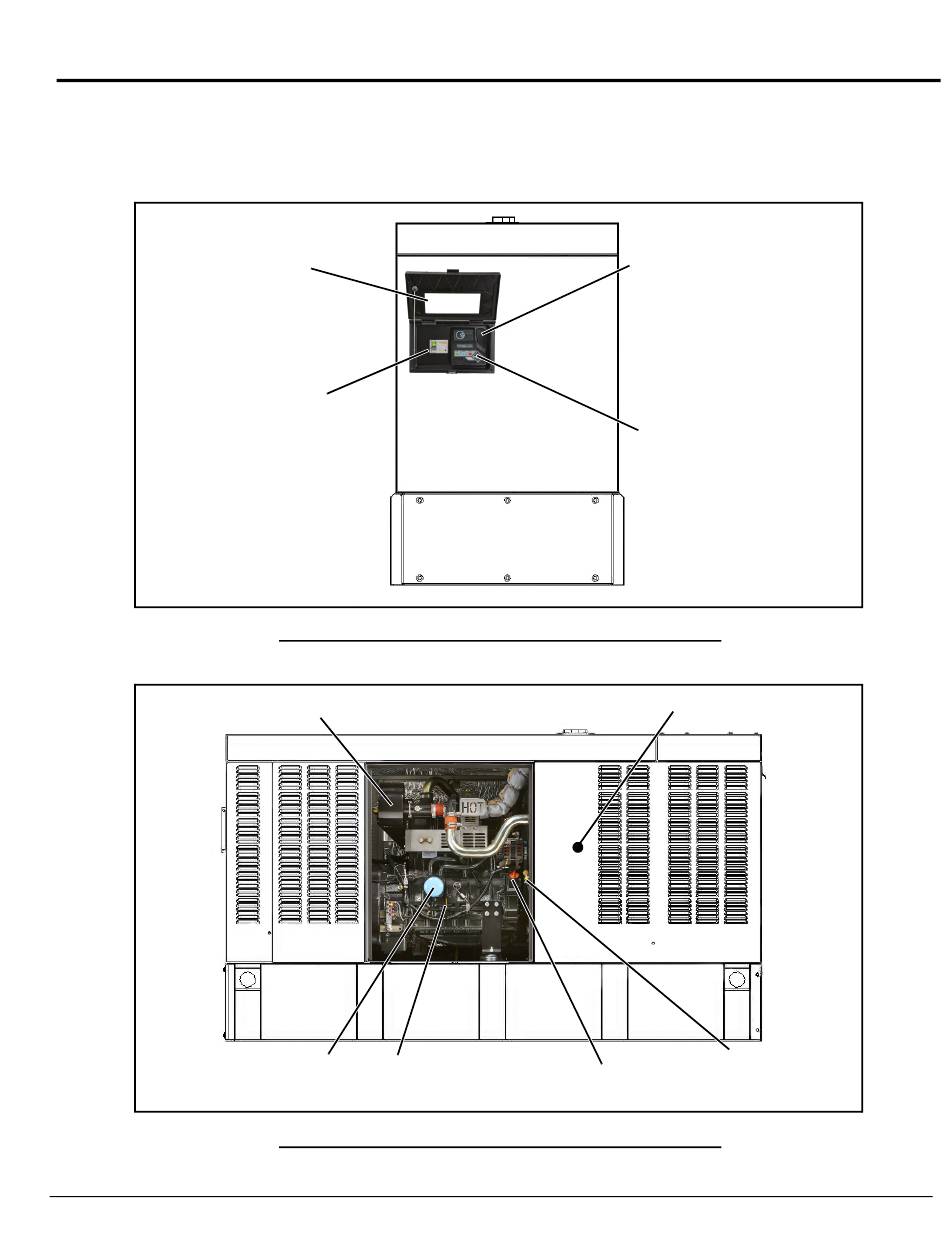

Figure 5-1. Rear View
Air Filter
Oil Filter Oil Level
Dipstick
Figure 5-2. Right Side View
7.5 Amp Fuse
and USB Port
Control Pad
and LCD Screen
Right Side
V-Belt
Oil Drain
Oil Fill Cap
Hose
