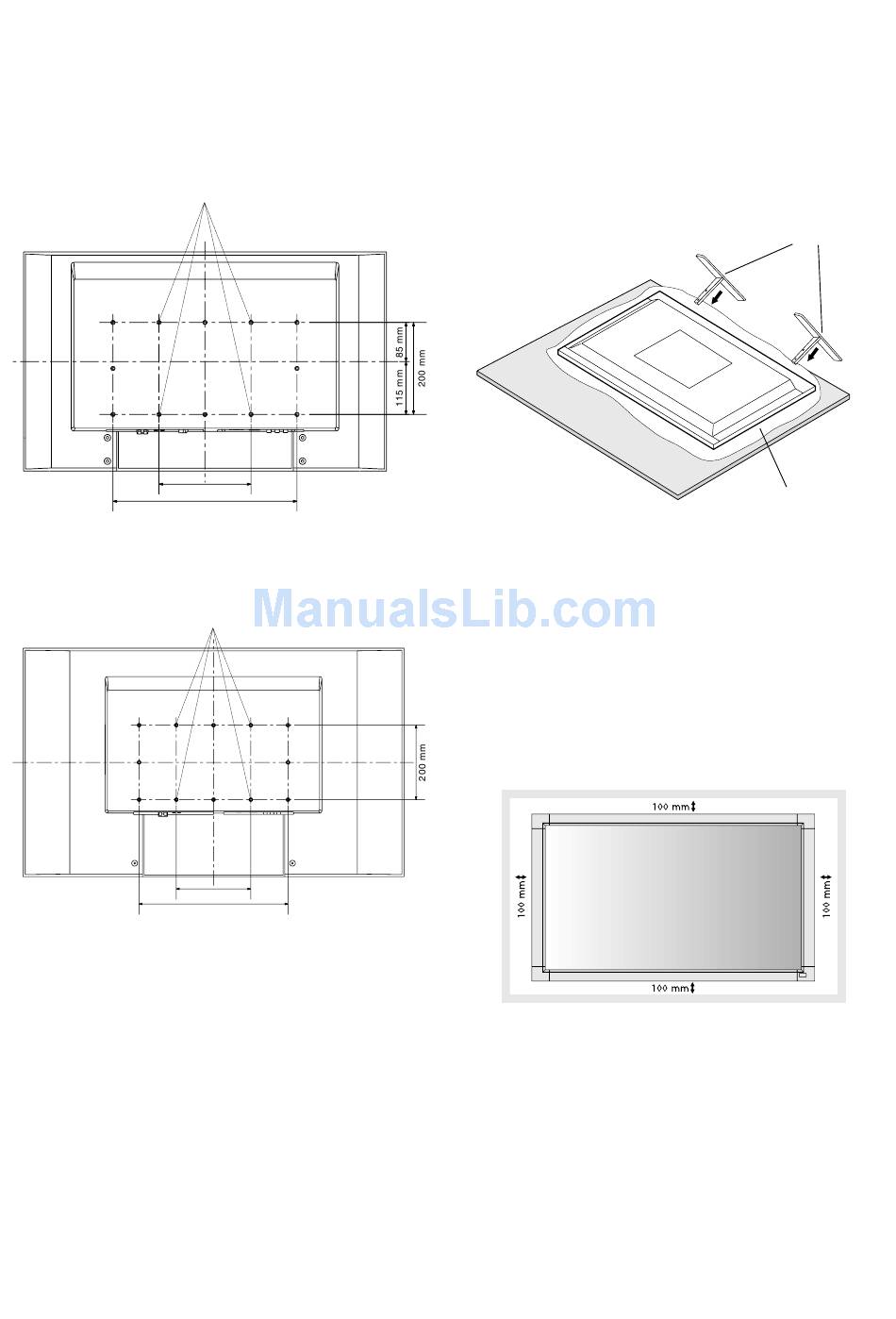

Attaching Mounting Accessories

The display is designed for use with the VESA mounting
system.
1. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching
accessories.
V321
VESA Mounting Interface
NOTE: Regarding VESA mounting interface patterns on
V321, it is not centered over the Vertical Centerline
of screen as the above figure.
V421 and V461
VESA Mounting Interface
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD.
The protective sheet was wrapped around the LCD in the
original packaging. Make sure there is nothing on the table
that can damage the monitor.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESA-
compatible mounting method.
200 mm
400 mm
200 mm
400 mm
2. Using optional table top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
Installing and removing optional table top stand
To install, follow those instructions included with the stand or
mounting apparatus. Use only those devices recommended
by the manufacturer.
Handle with care when mounting LCD monitor stand and
avoid pinching your fingers.
Table
NOTE: ST-3215 is for V321. Use the Thumbscrews
included with ST-3215.
ST-4020 is for V421 and V461. (V421 and V461 are
not mentioned in ST-4020 manual). Before using
optional table top stand, remove installed
thumbscrews from the display first.
Please use a screwdriver for removing
thumbscrews as necessary.

3. Ventilation Requirements

When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting apparatus; especially when you use
monitors in a multiple screen environment.
English-6
Optional table top stand
Protective Sheet
