Controlling the LCD monitor via RS-232C Remote Control

This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal.
Functions that can be controlled by a personal computer are:
Power ON or OFF
Switching between input signals

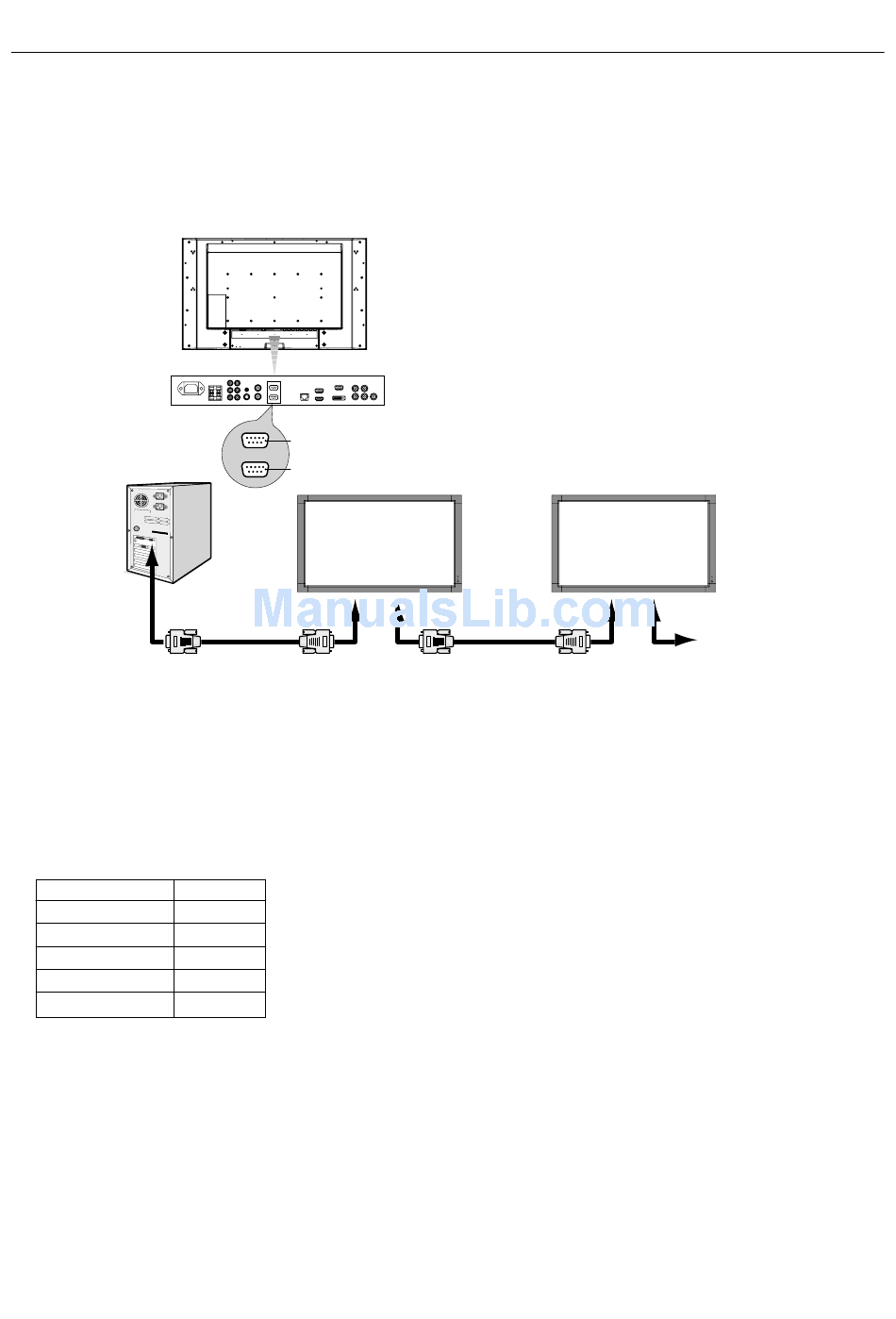

Connection
LCD Monitor + PC
PC (Out)
NOTE: If your PC is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact your
dealer for details.
* In order to function, the RS-232C OUT terminal can only be connected to another monitor of the same model.
Do not connect to other types of equipment.
To control monitor or multiple monitors that are daisy-chained together please use the control command. Instructions for the
control command can be found on the CD included with the display. The file is called "External_control_****.pdf".
1) Interface
PROTOCOL
BAUD RATE
DATA LENGTH
PARITY BIT
STOP BIT
FLOW CONTROL
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not include) should be used for RS-232C control.
2) Control command diagram
Please see file "External_Control_****.pdf" on the CD-ROM.
MultiSync
OUT
IN
MultiSync
RS-232C (IN)
RS-232C Cable
RS-232C
9600 [bps]
8 [bits]
NONE
1 [bit]
NONE
RS-232C (OUT)
RS-232C (IN)
RS-232C Cable
English-24
MultiSync
RS-232C (OUT)
MultiSync
